Automatic Transmission/Transaxle
>>
System Diagram
>>
Valve Body
>>
Main Valve Body Disassembly/Inspection/Reassembly
Main Valve Body Disassembly/Inspection/Reassembly
Disassembly/Inspection/Reassembly

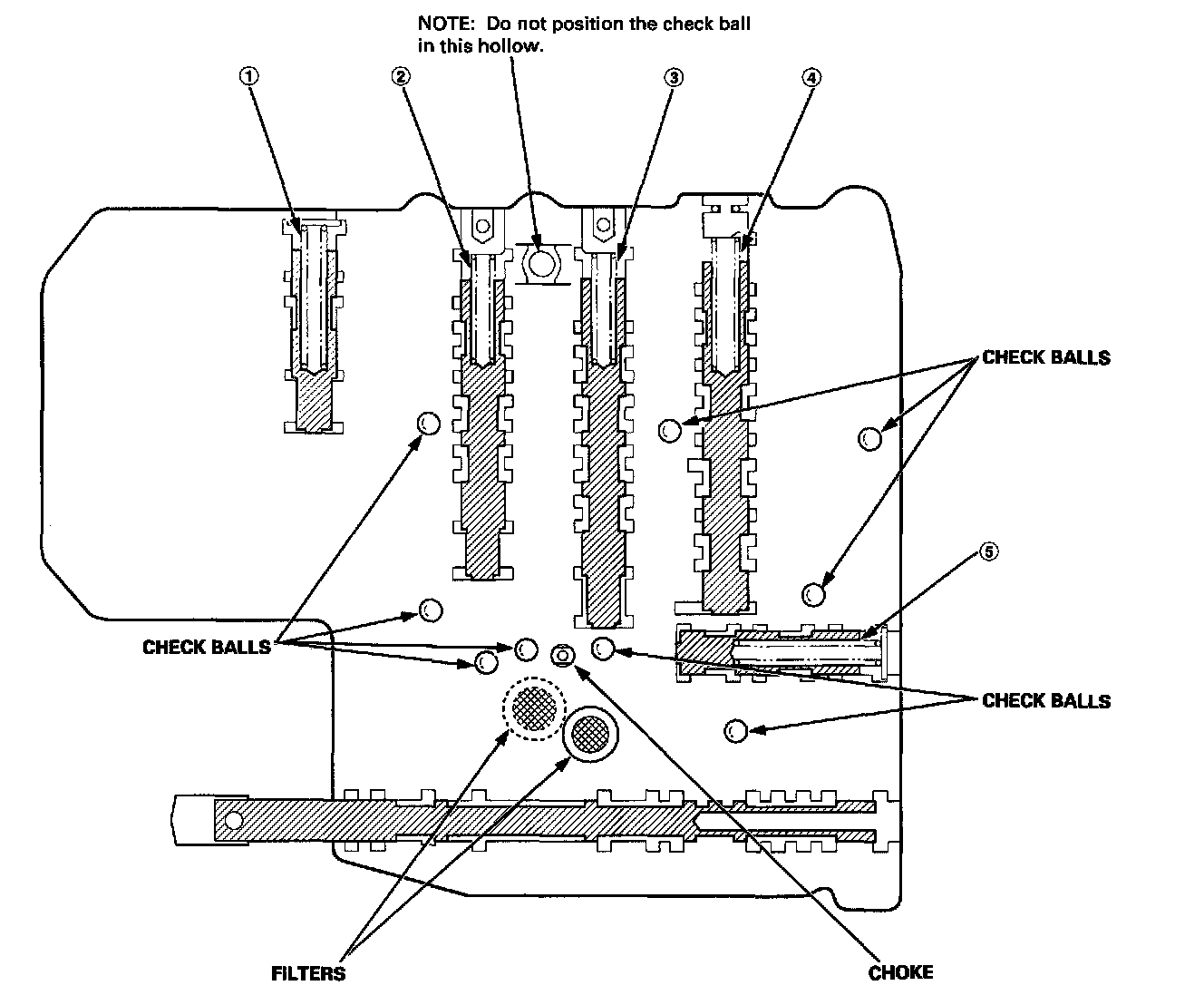

Part 1 of 3

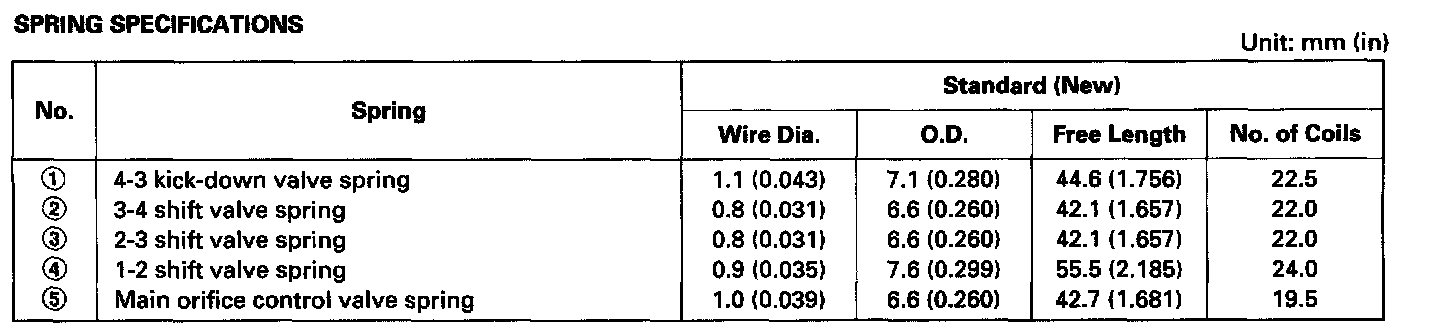

Part 2 of 3

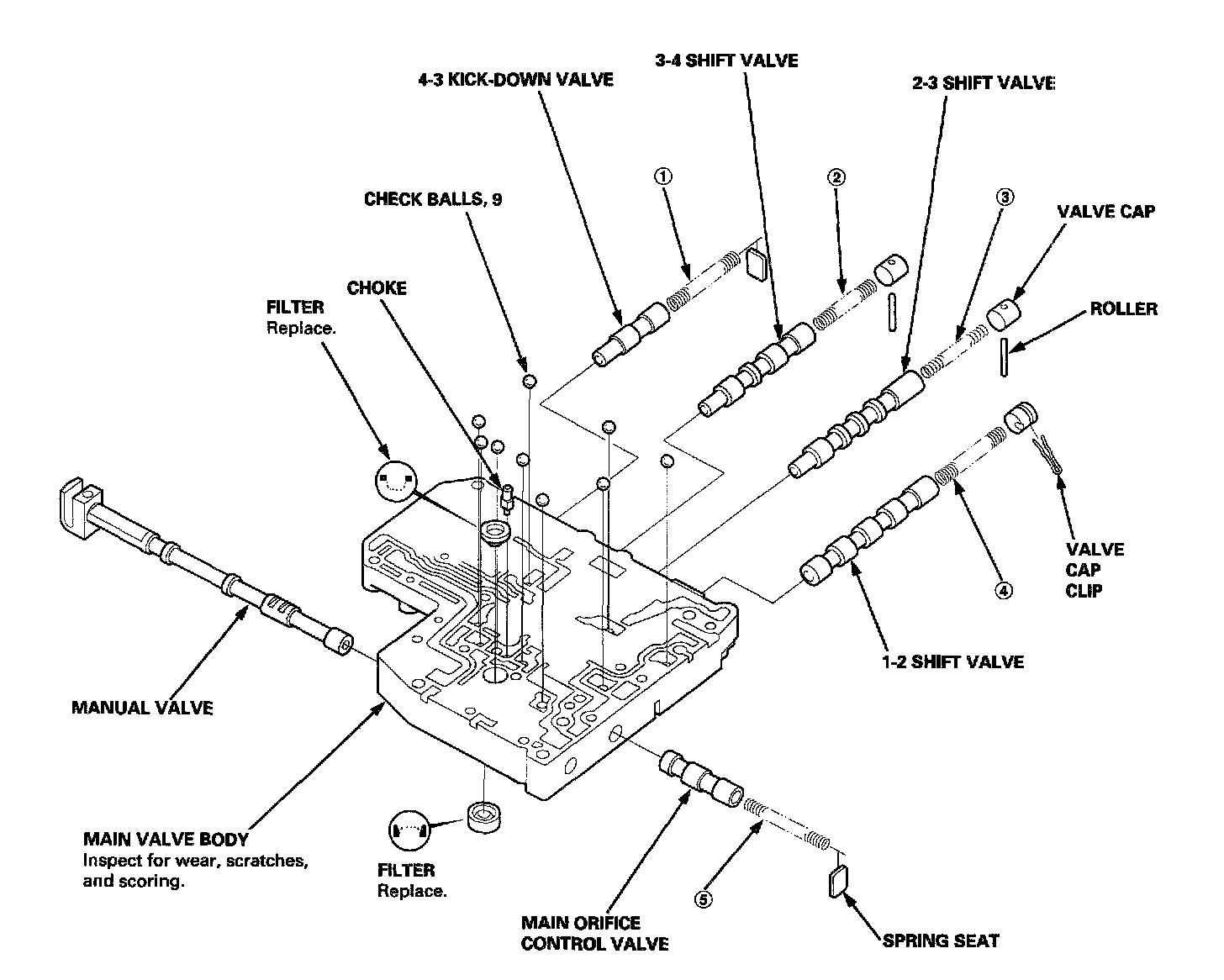

Part 3 of 3
