Home >> Acura >> 2000 >> RL V6-3474cc 3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Rear Cover

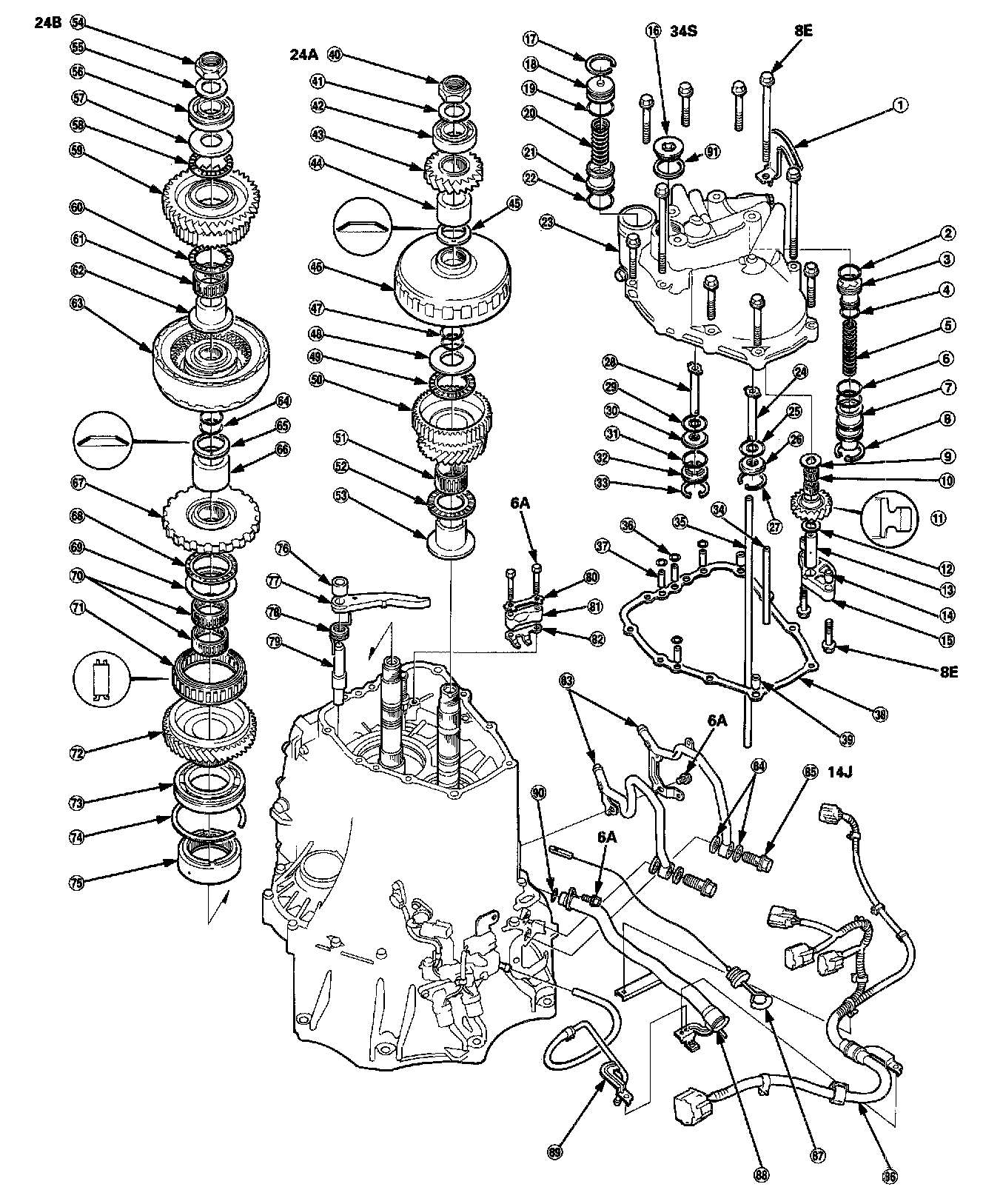

Rear Cover

Rear Cover

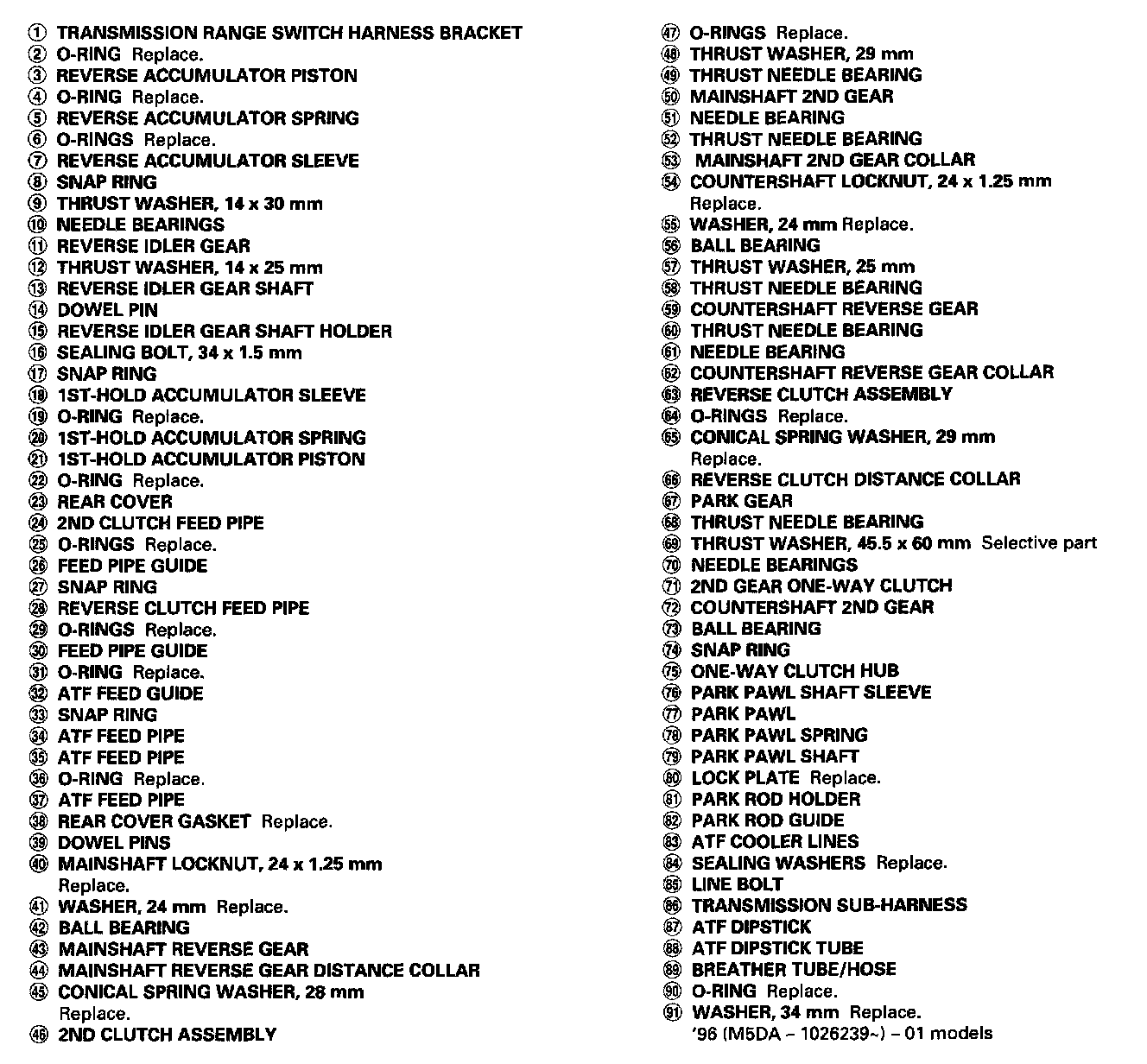

Part 1 of 2

Part 2 of 2

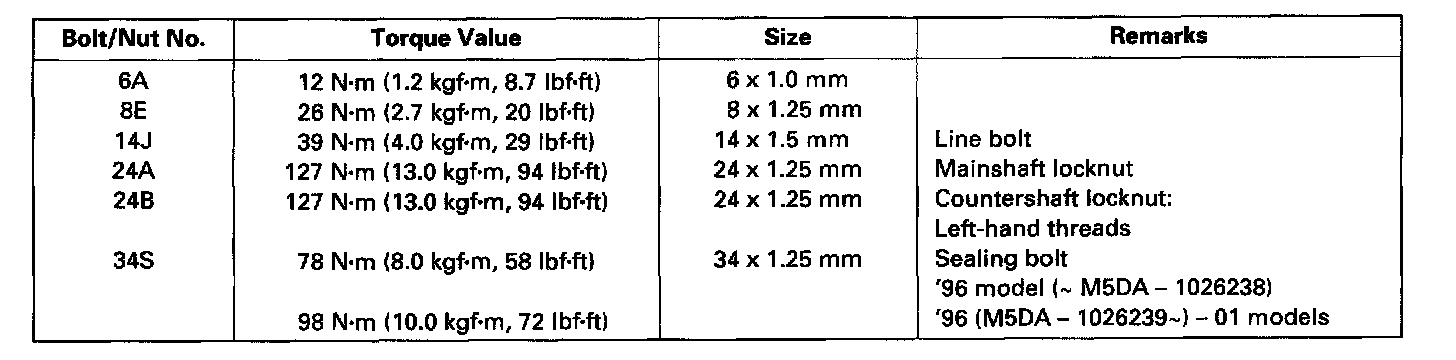

TORQUE SPECIFICATIONS
