Cooling System
>>

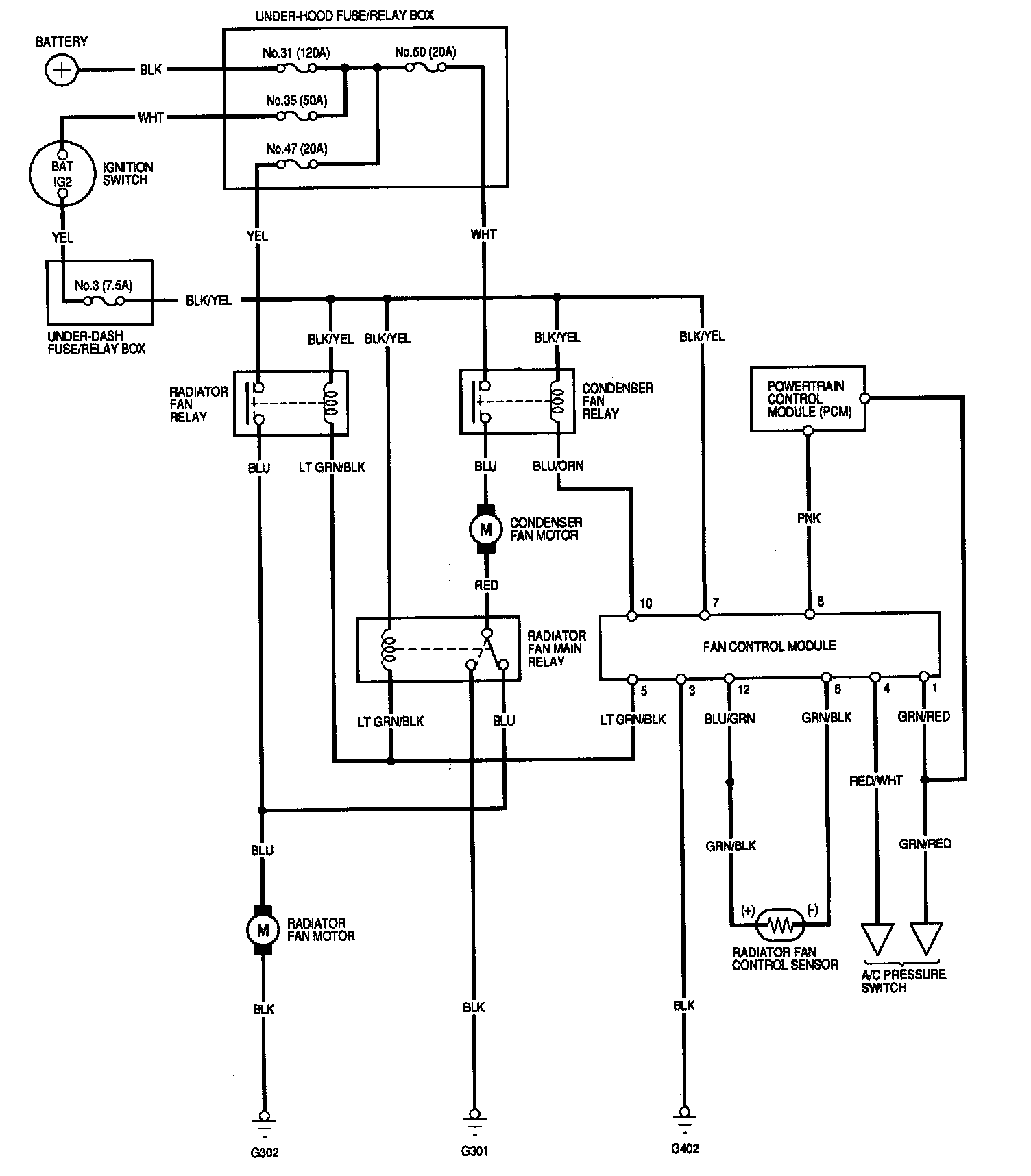

Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module
Cooling Fan Controls:
