Home >> Acura >> 2000 >> RL V6-3474cc 3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems >> Air Bag Control Module

Air Bag Control Module

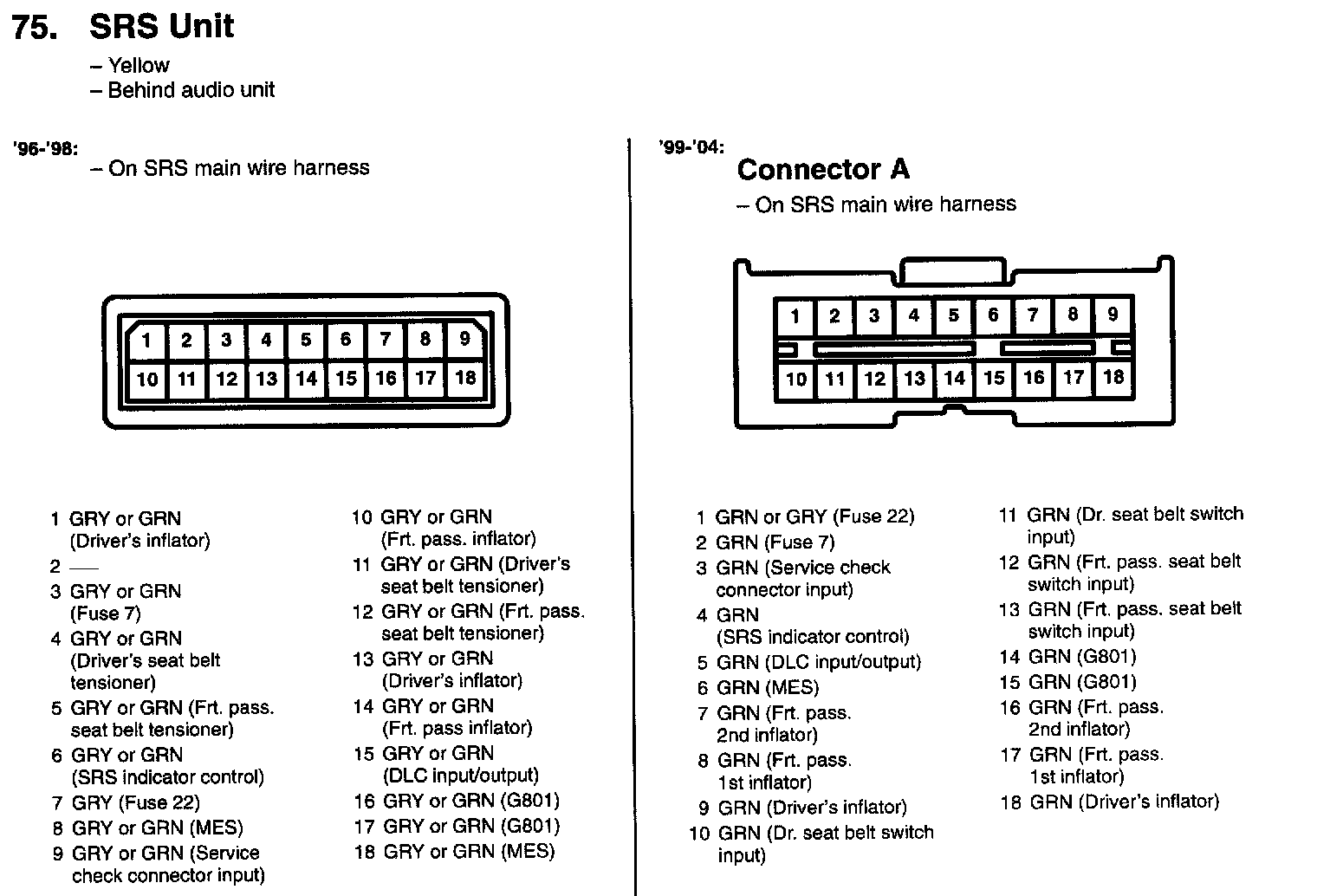

Part 1:

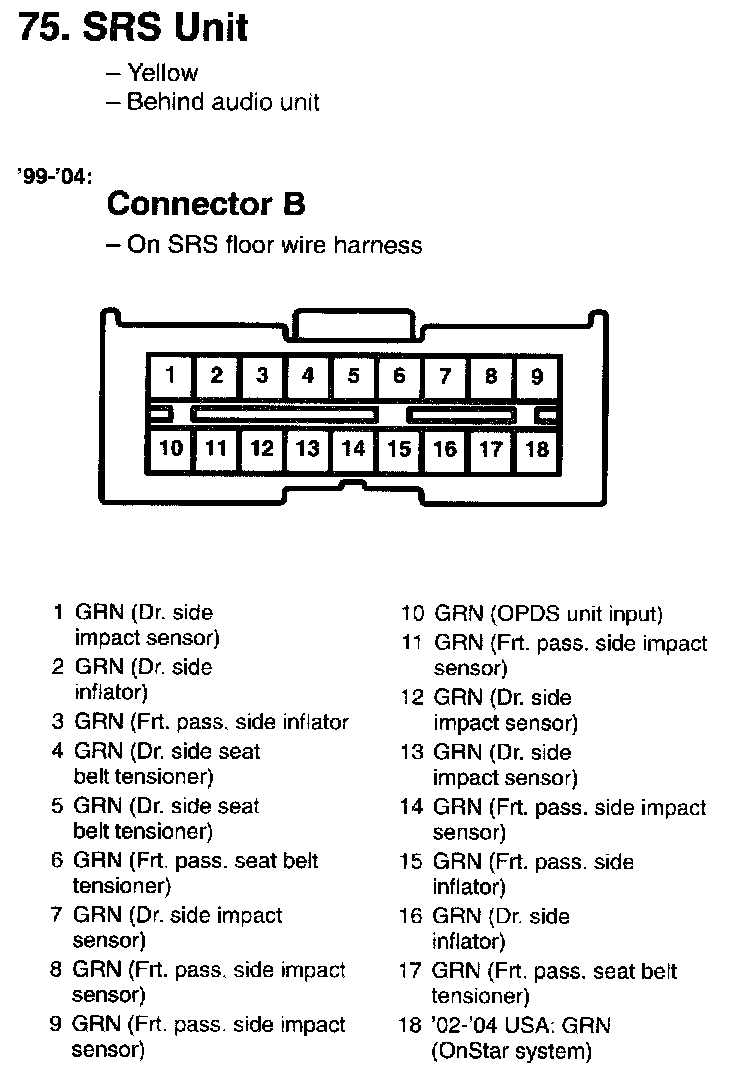

Part 2:
