Brake Switch (Cruise Control): Testing and Inspection

Brake Pedal Position Switch Test

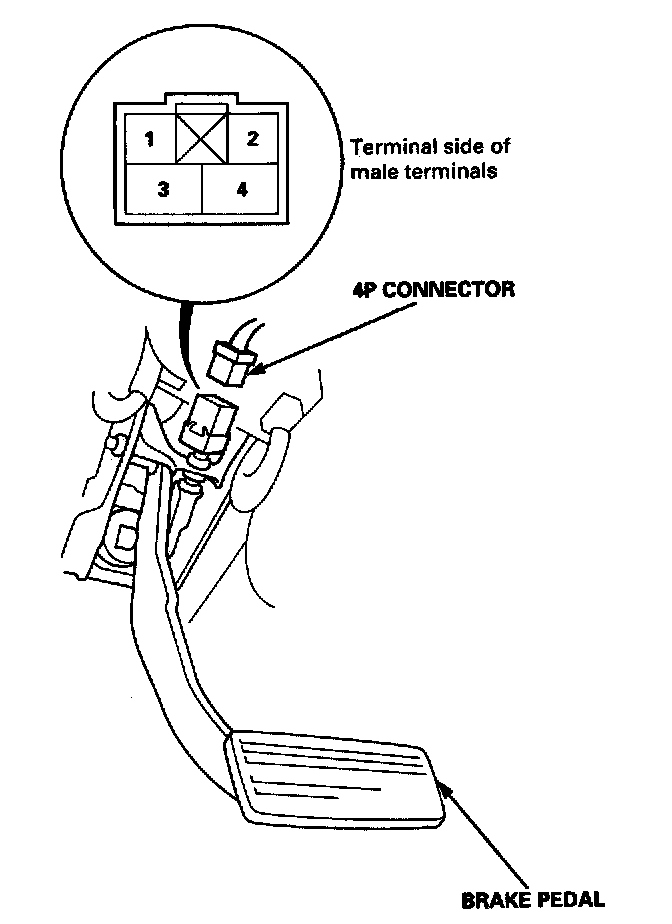

1. Disconnect the 4P connector from the switch.

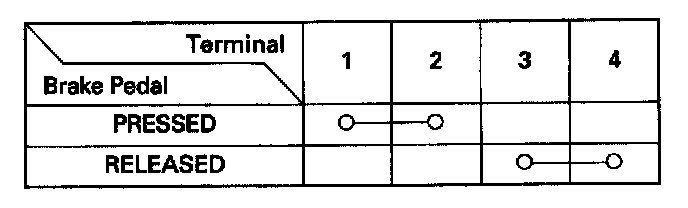

2. Check for continuity between the terminals according to the table.
3. If necessary, replace the switch or adjust pedal height.
