Vehicle Speed Sensor: Service and Repair

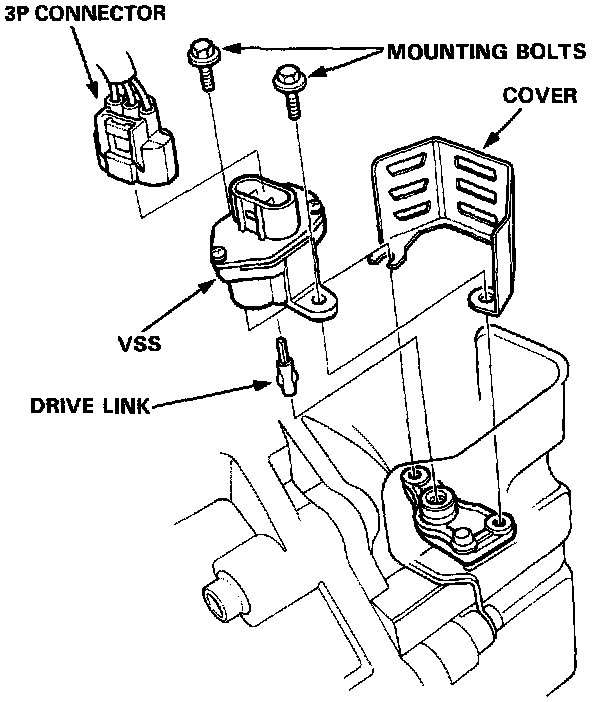

Vehicle Speed Sensor (VSS) Replacement:

1. Disconnect the 3P Connector from the vehicle speed sensor (VSS).
2. Remove the mounting bolts and the VSS, then take out the VSS assembly.


NOTE: The VSS drive link is a very small part, be careful not to lose it.


3. Install in the reverse order of removal.
