LEMON Manuals
: Even more car manuals for everyone
Home
>>
Acura
>>
2000
>>
NSX V6-3.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Non-Trouble Code Procedures
Non-Trouble Code Procedures

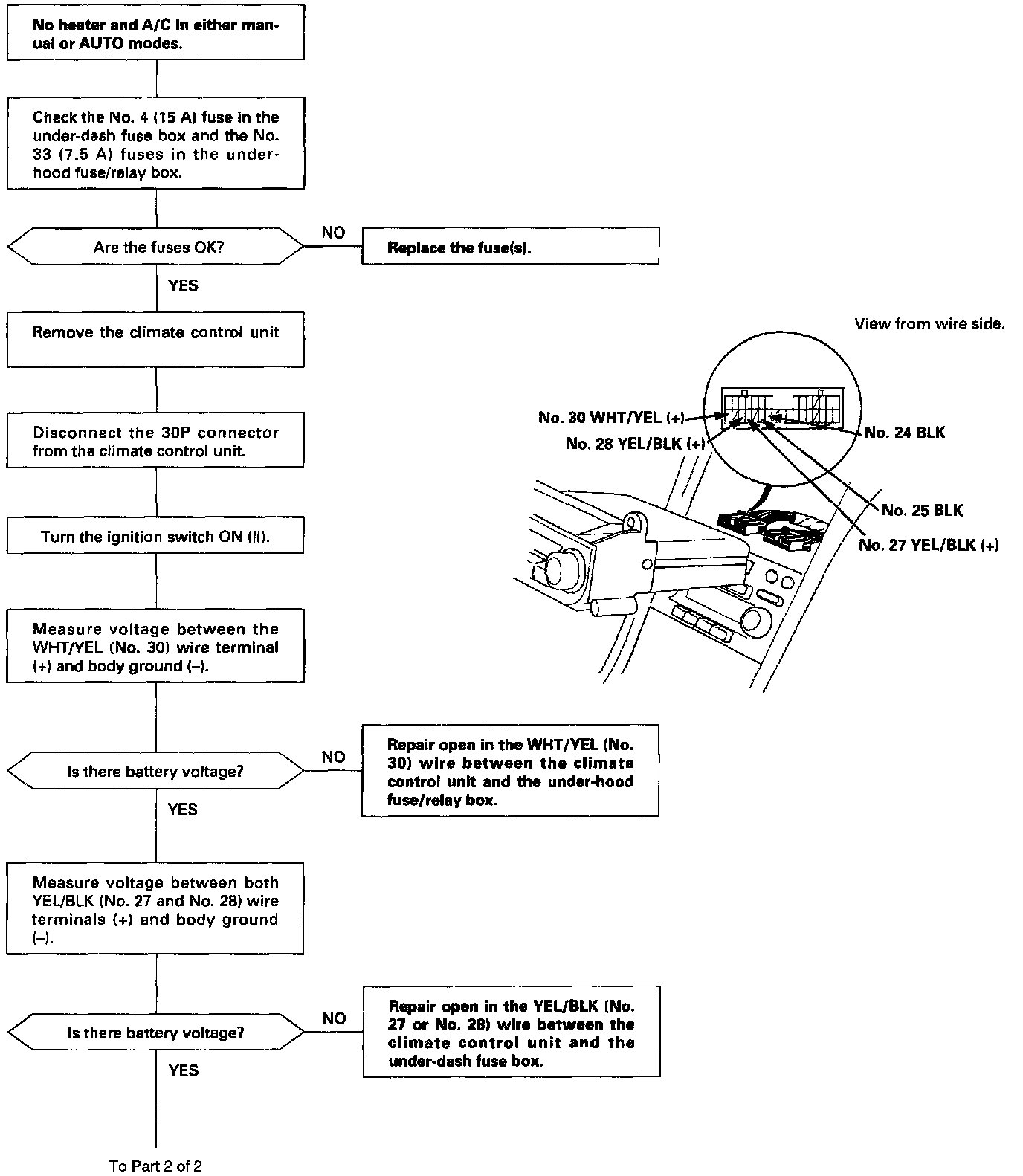

Flowchart-Power Circuits To Climate Control Unit (Part 1 Of 2):

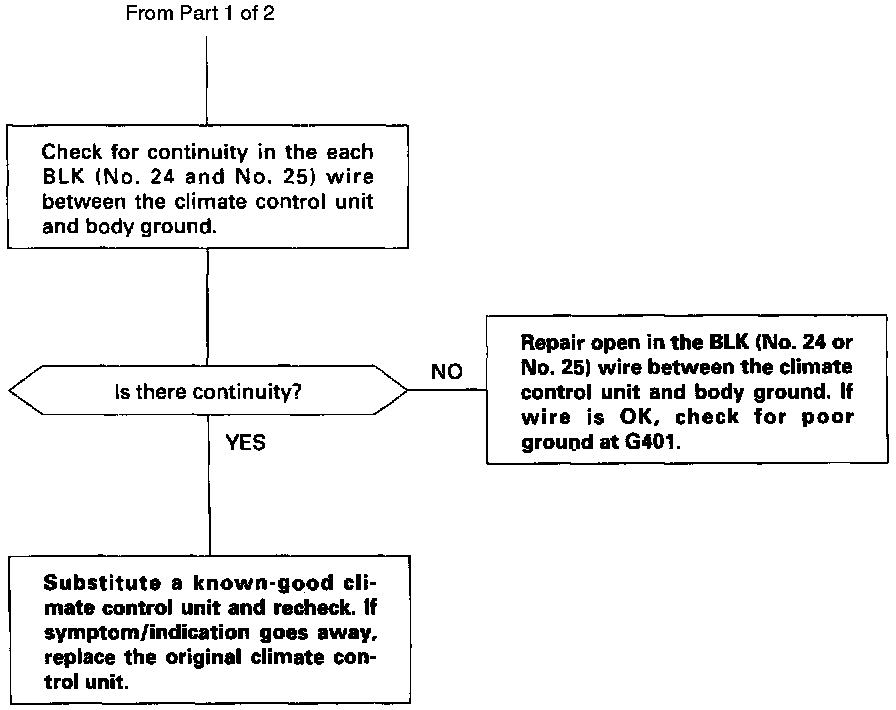

Flowchart-Power Circuits To Climate Control Unit (Part 2 Of 2):
