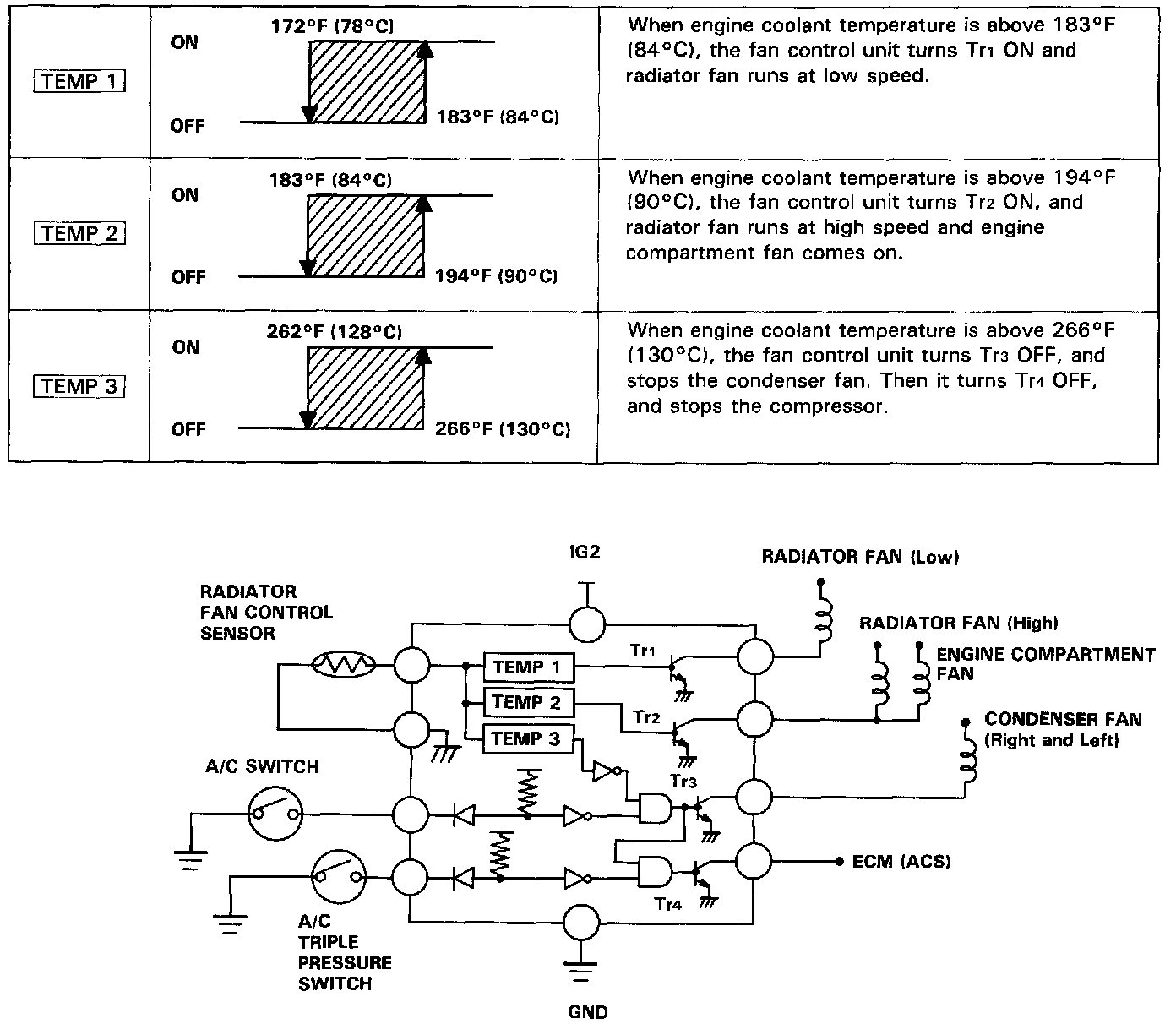

Fan Control Unit

Fan Control Unit:




SRS components are located in this area. Review the SRS component locations, precautions, and procedures before performing repairs or service.
