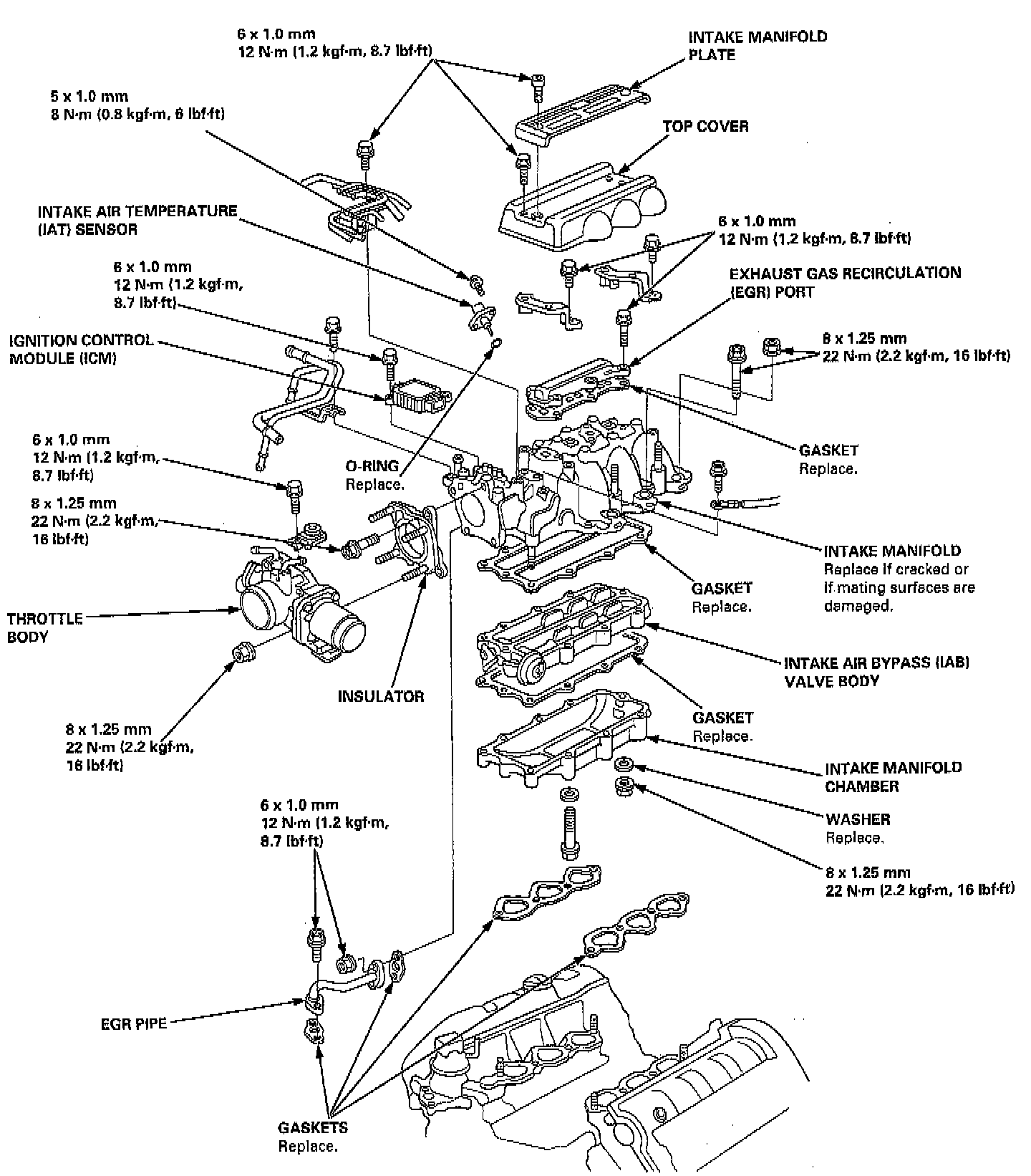

Intake Manifold

NOTE: Use new O-rings and gaskets when reassembling.

Intake:





CAUTION:
- Check for folds or scratches on the surface of the gasket.
- Replace with a new gasket if damaged.
