Home >> Acura >> 2000 >> Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI >> Repair and Diagnosis >> Powertrain Management >> Locations >> Component Locations

Component Locations

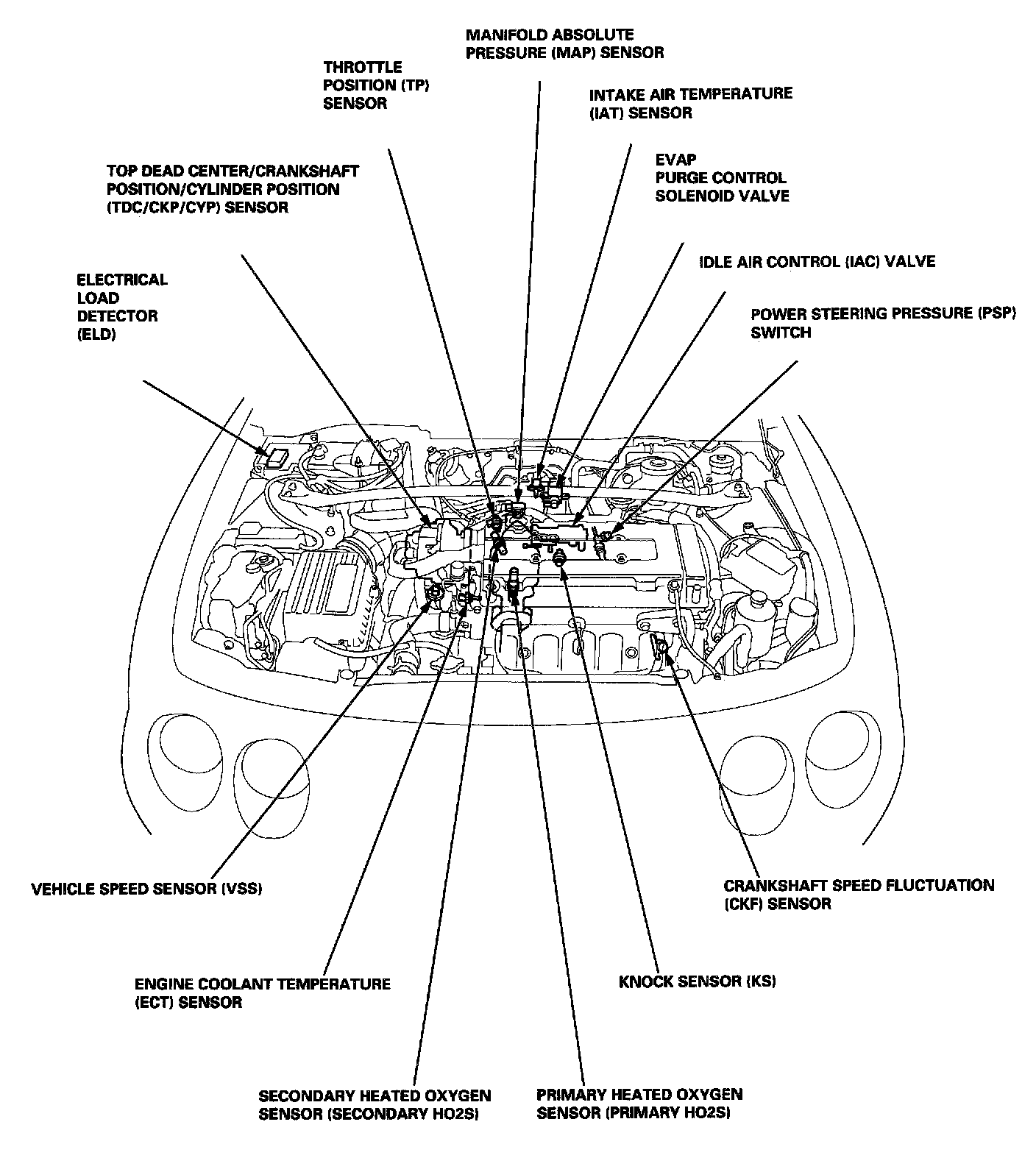

B18C1 1.8L DOHC VTEC:

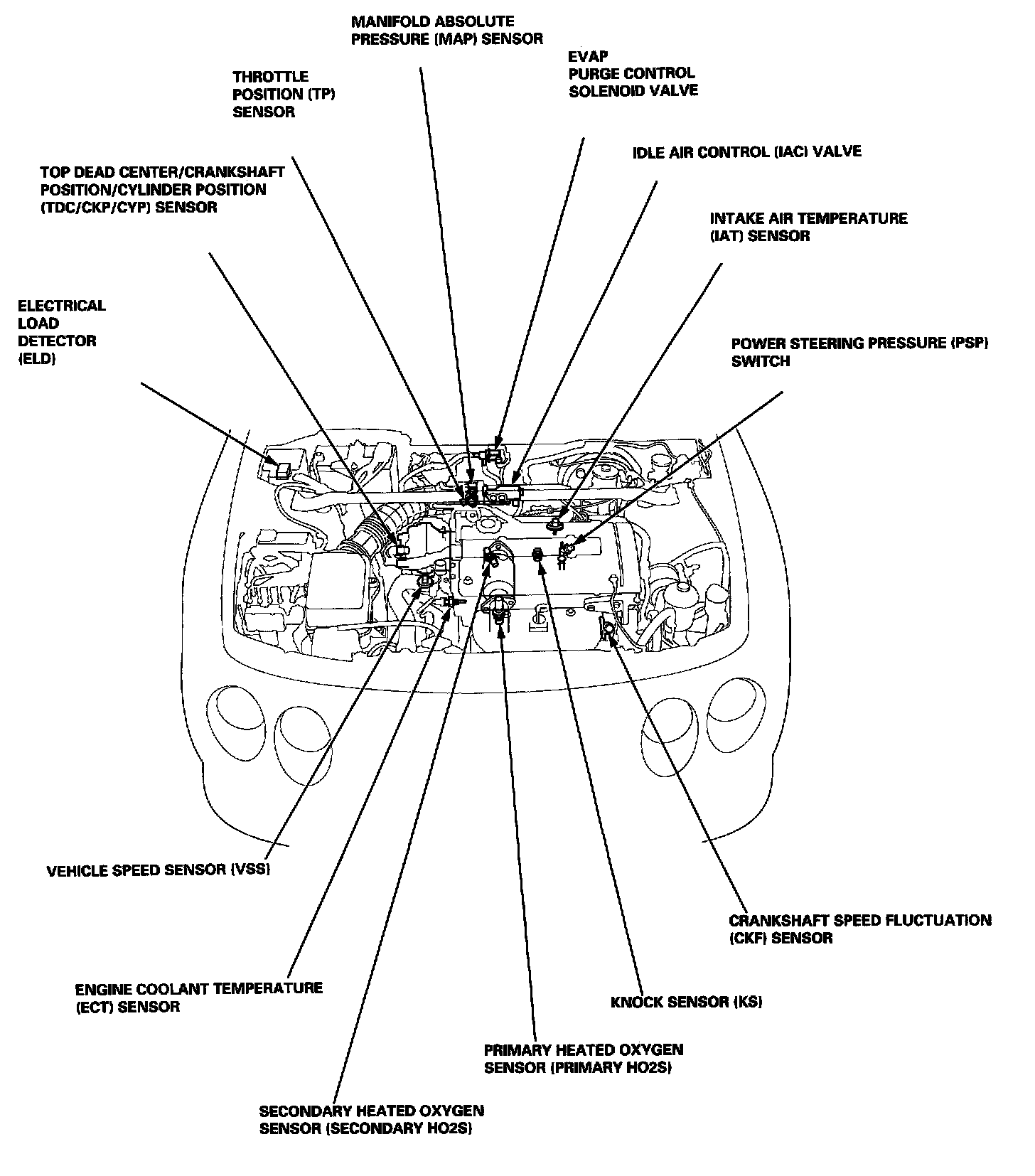

B18C5 1.8L DOHC VTEC:

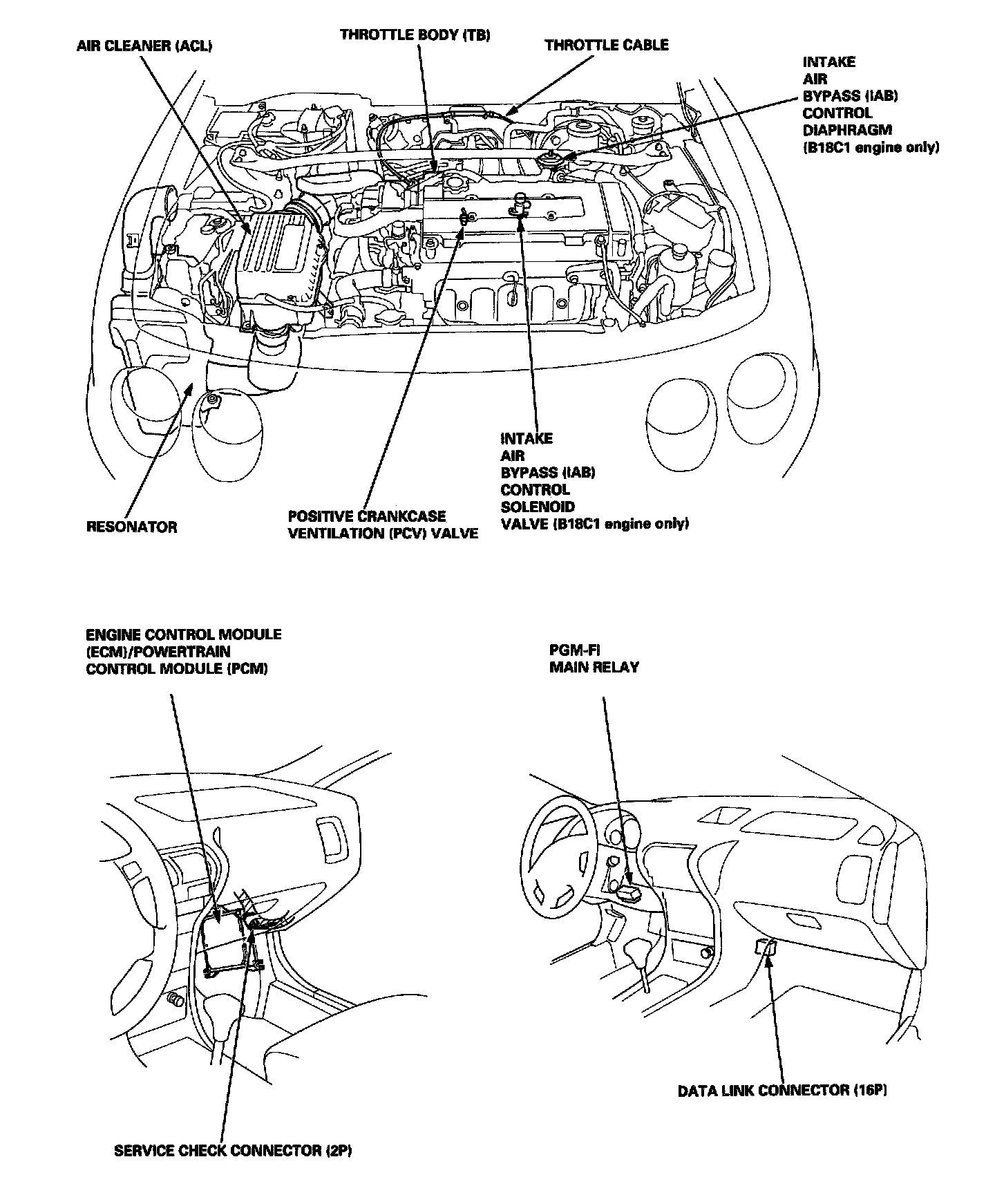

All Engines, Engine/Passenger Compartment View:

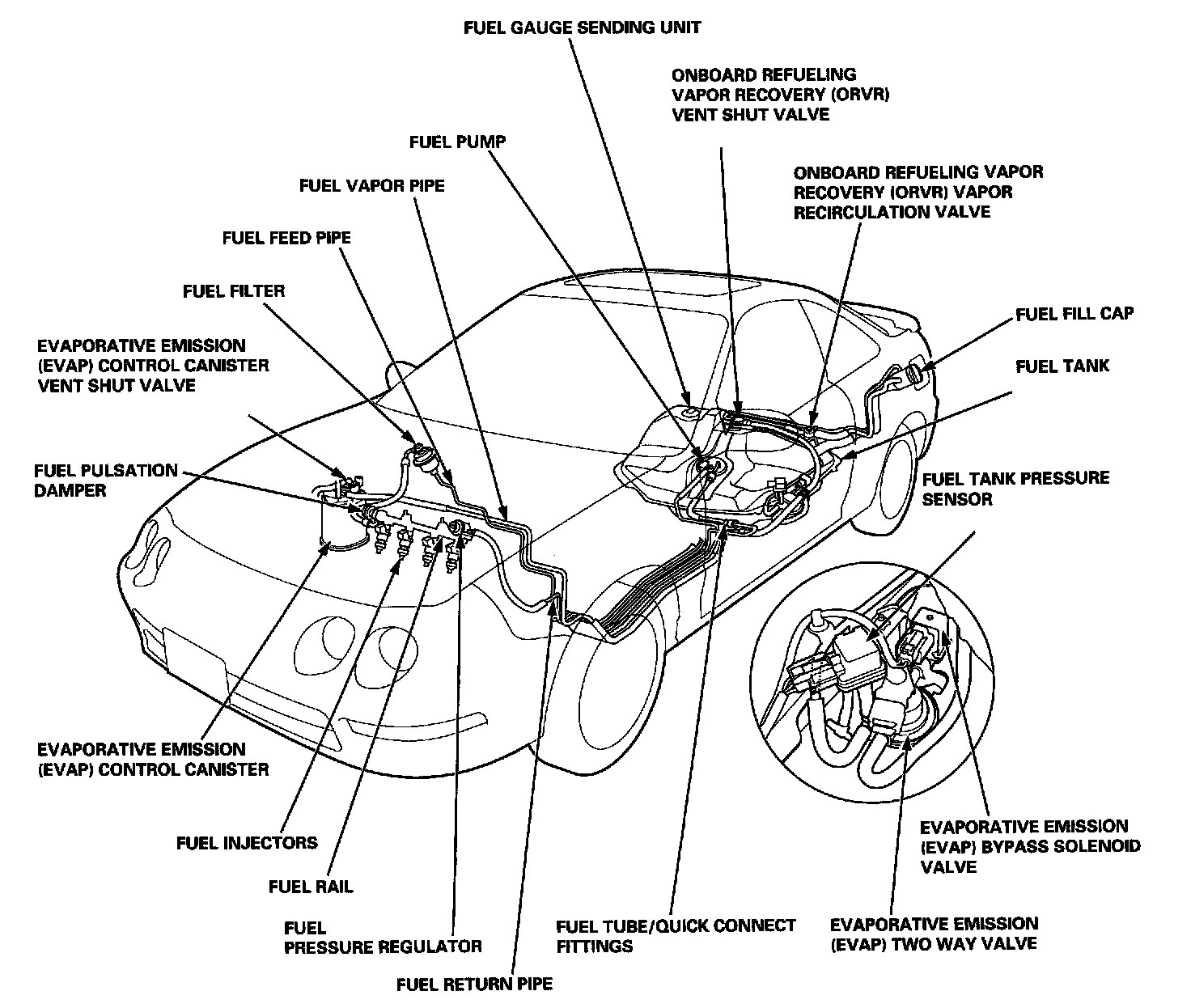

All Engines, Vehicle View:
