Engine Control Module
Engine Control Module

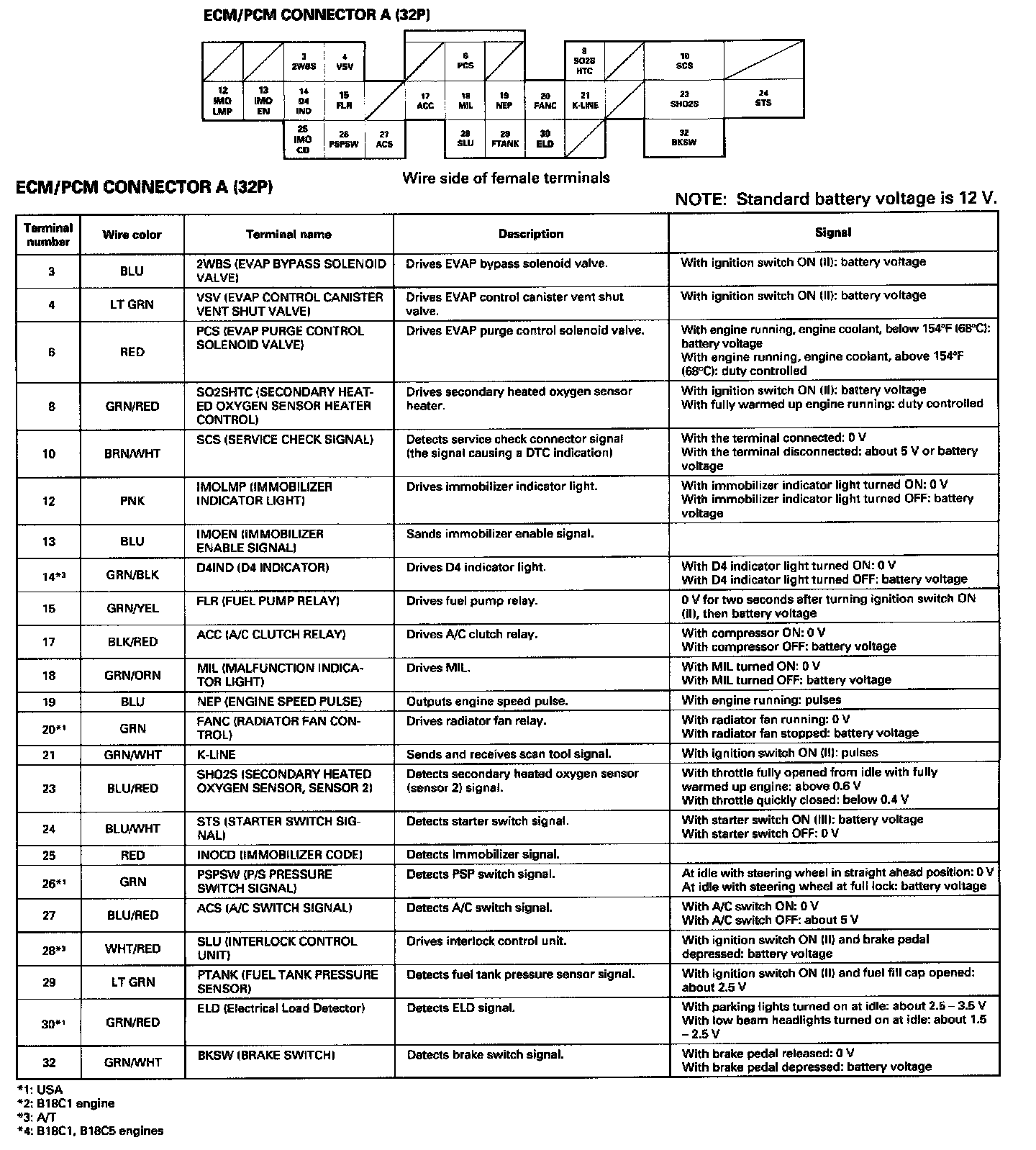

ECM/PCM CONNECTOR A (32P):

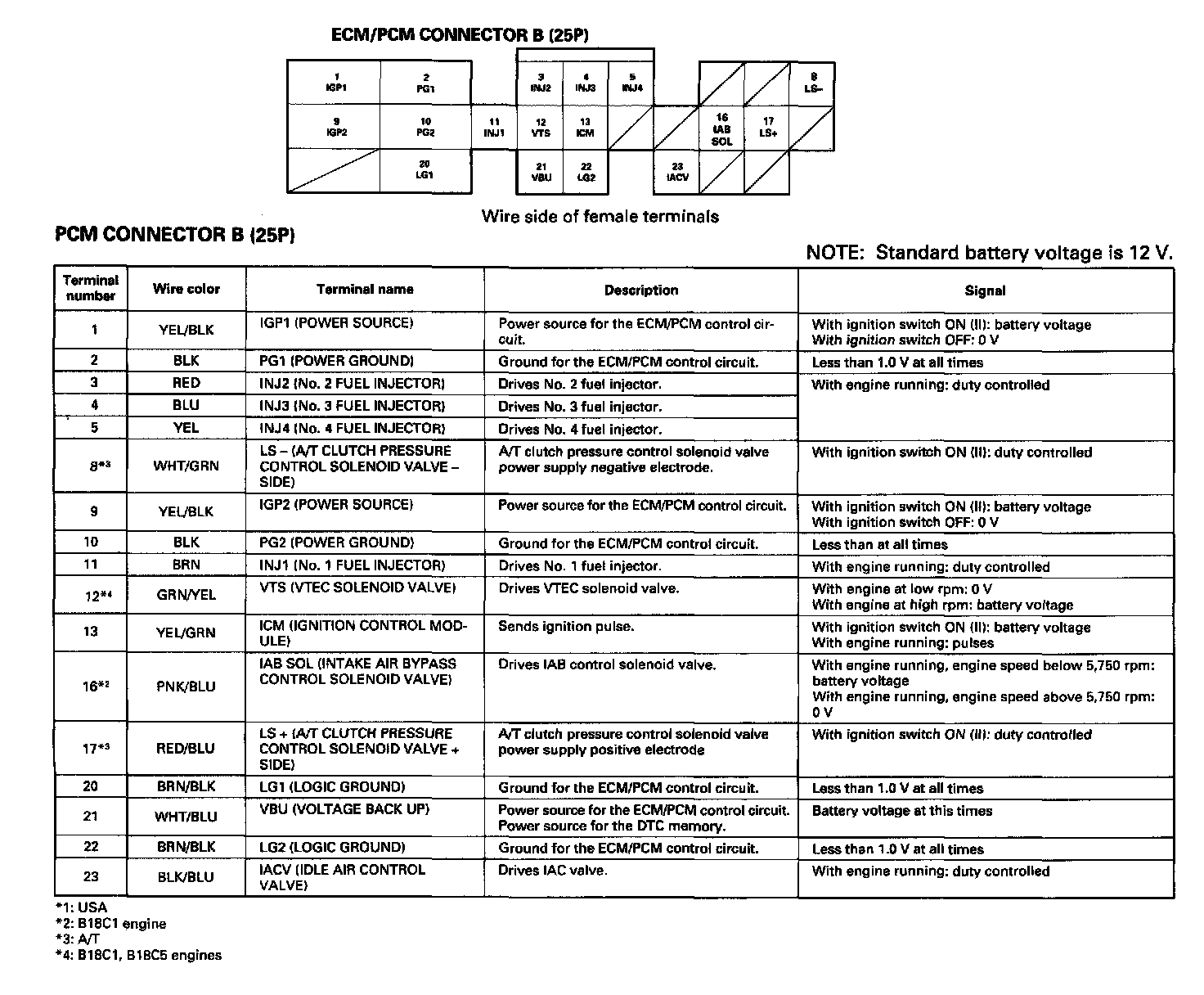

ECM/PCM CONNECTOR B (25P):

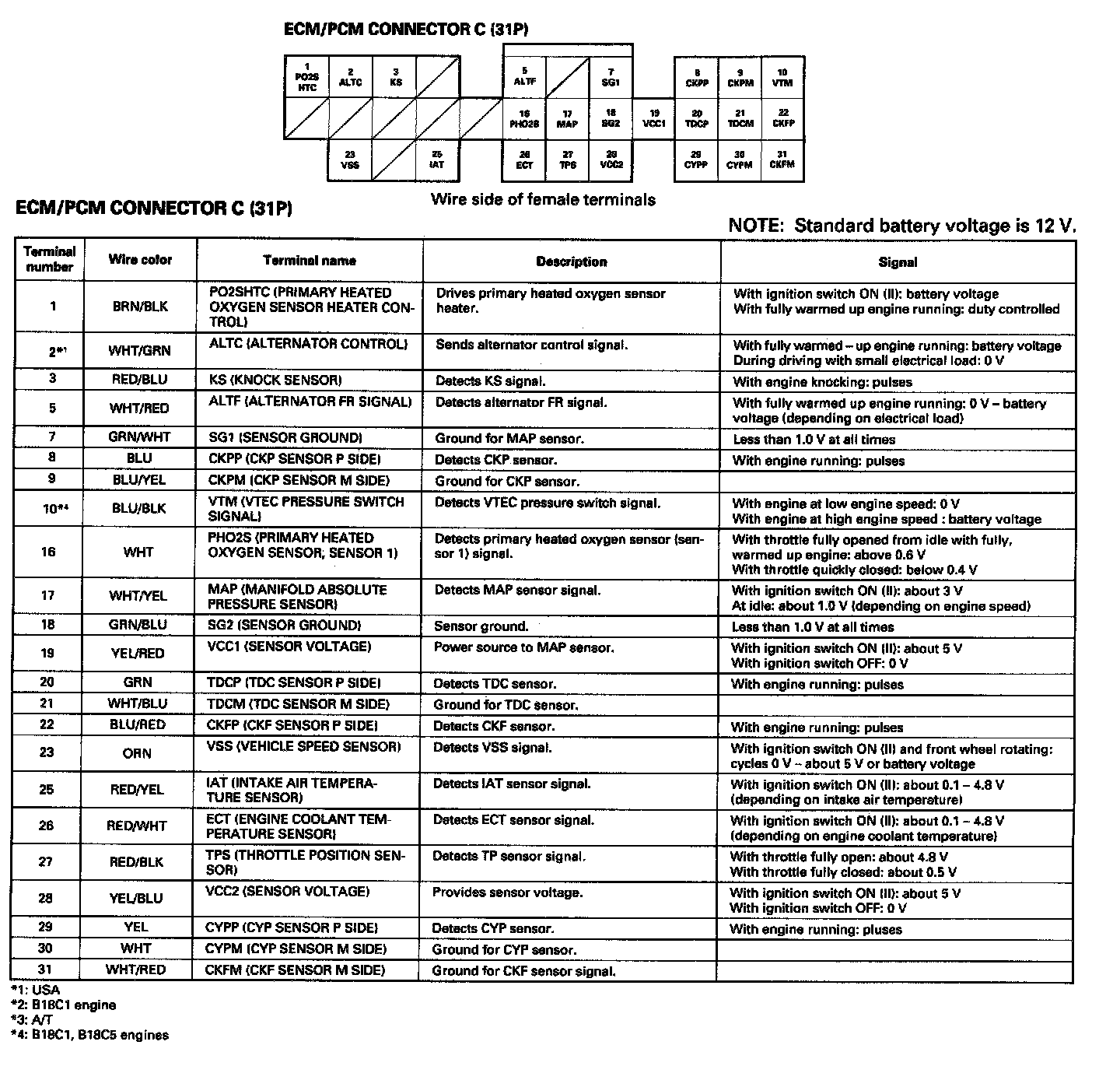

ECM/PCM CONNECTOR C (31P):

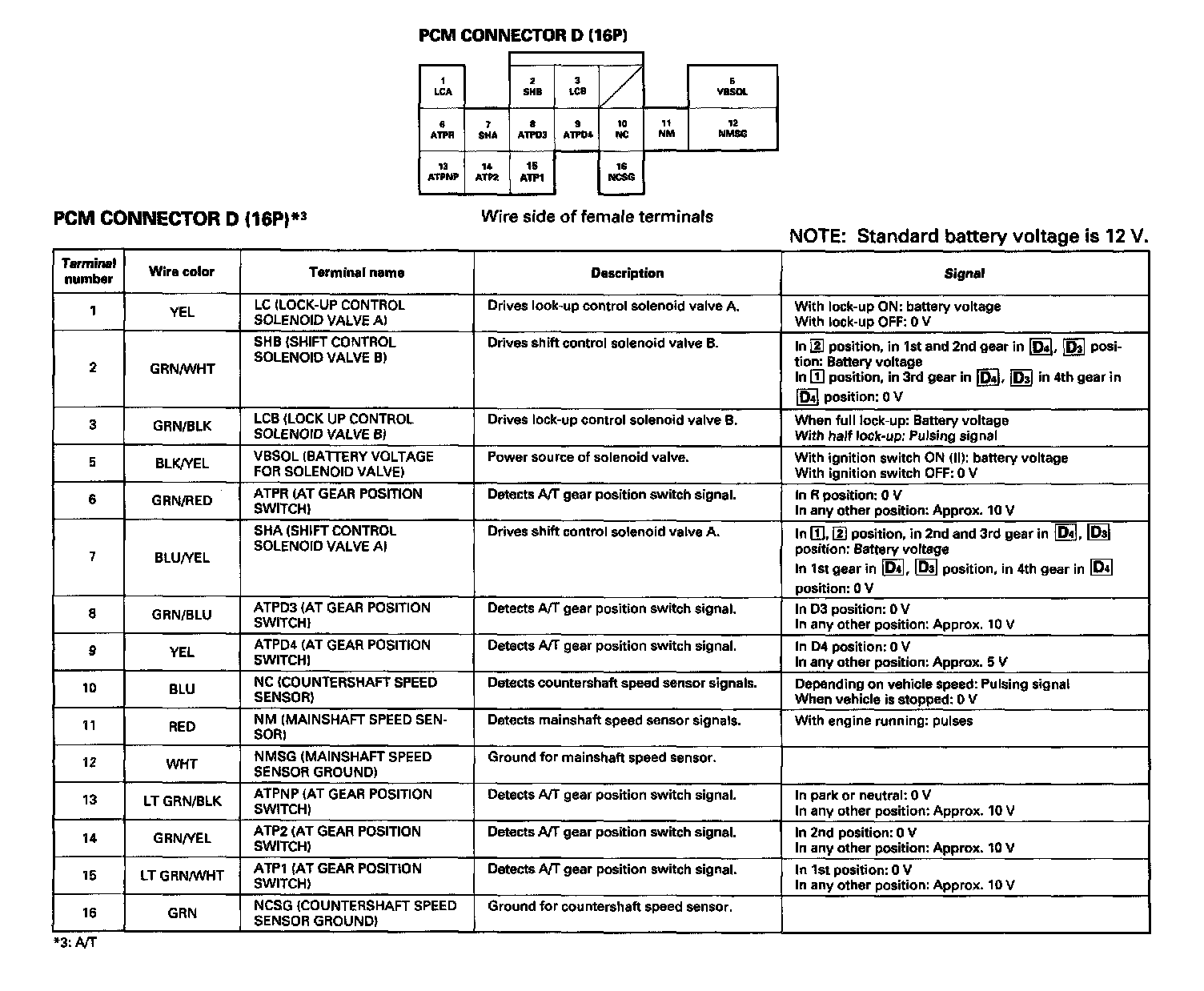

PCM CONNECTOR D (16P):
