System Diagram

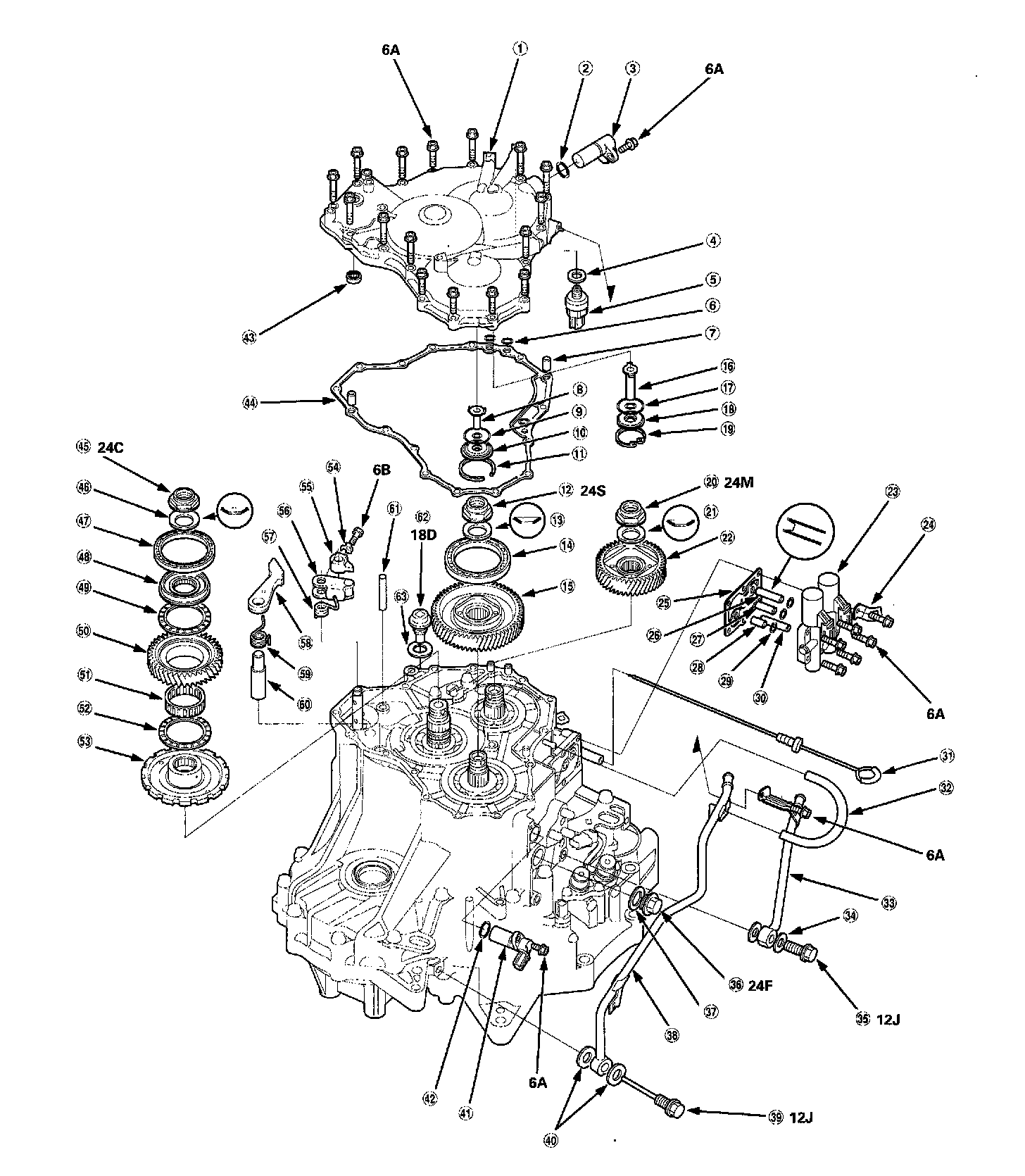

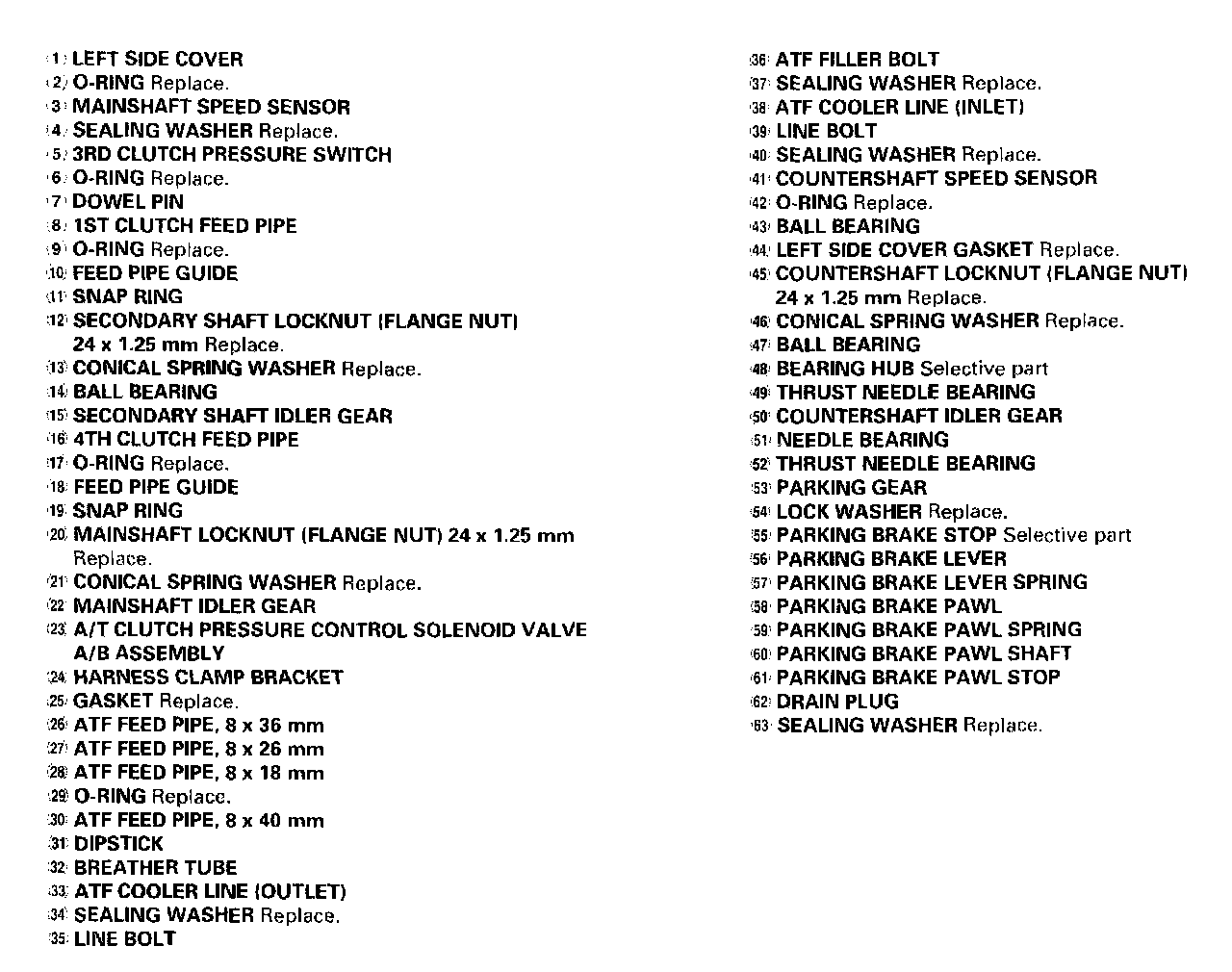

End Cover








Torque Specifications

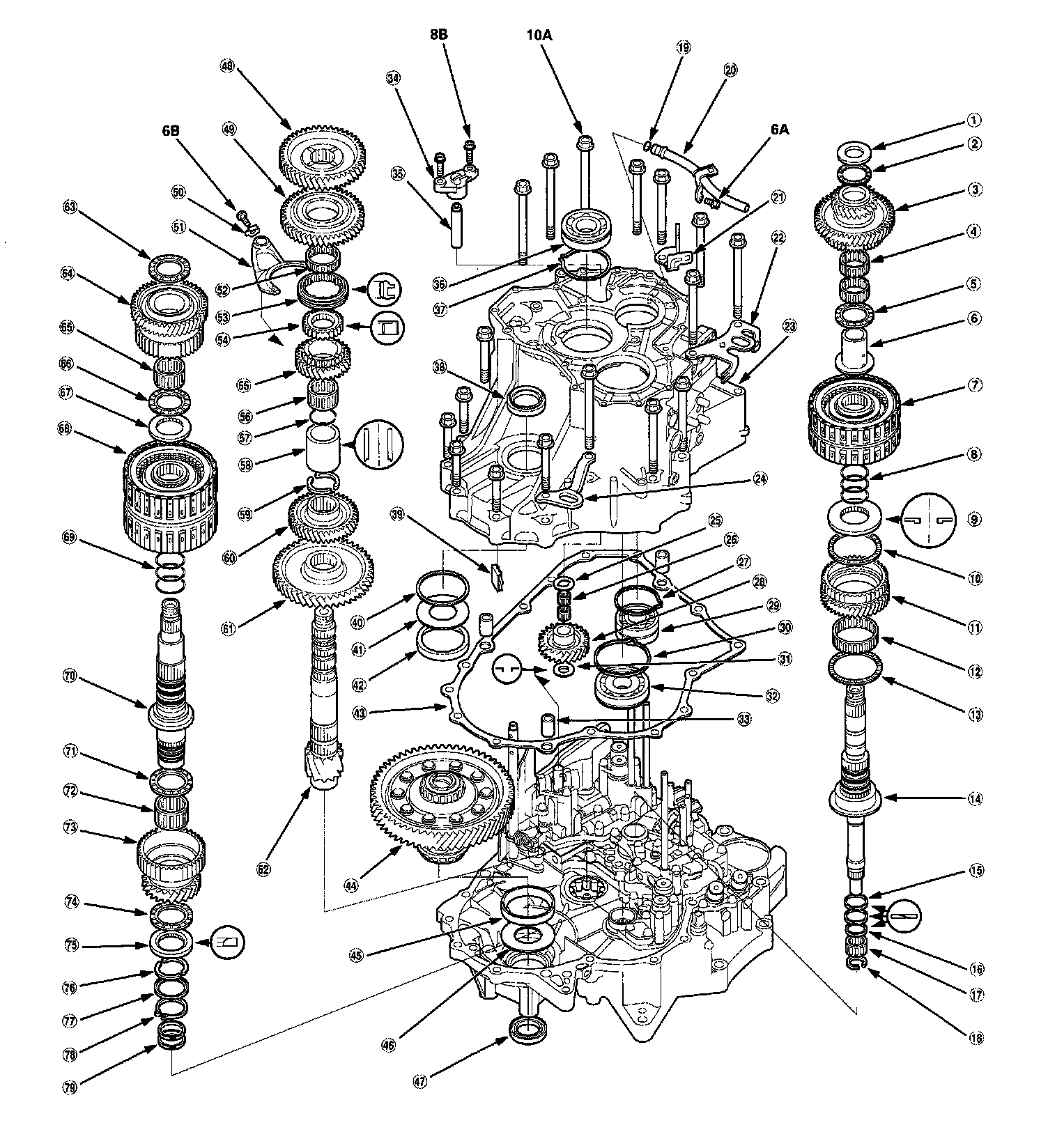

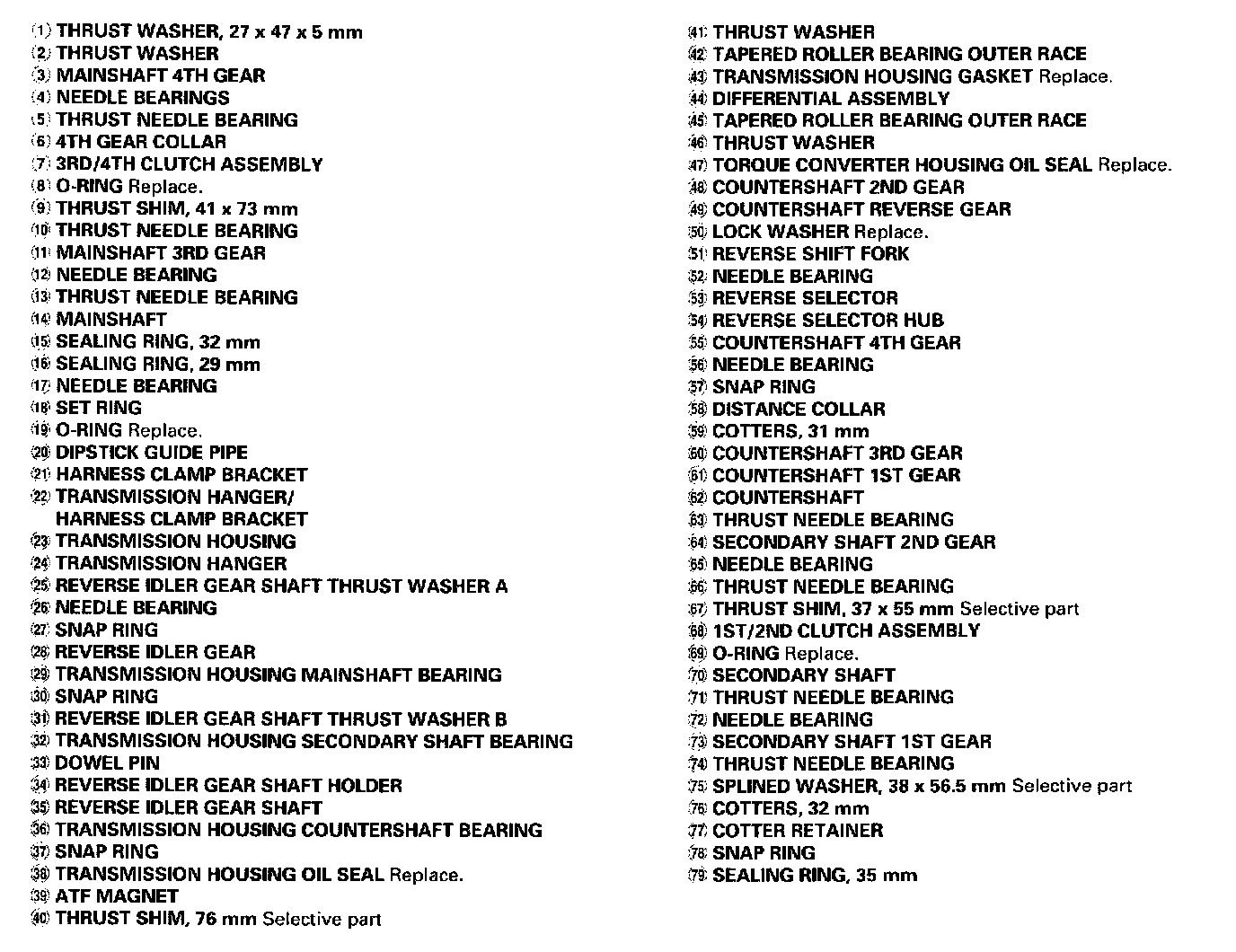

Transmission Housing








Torque Specifications

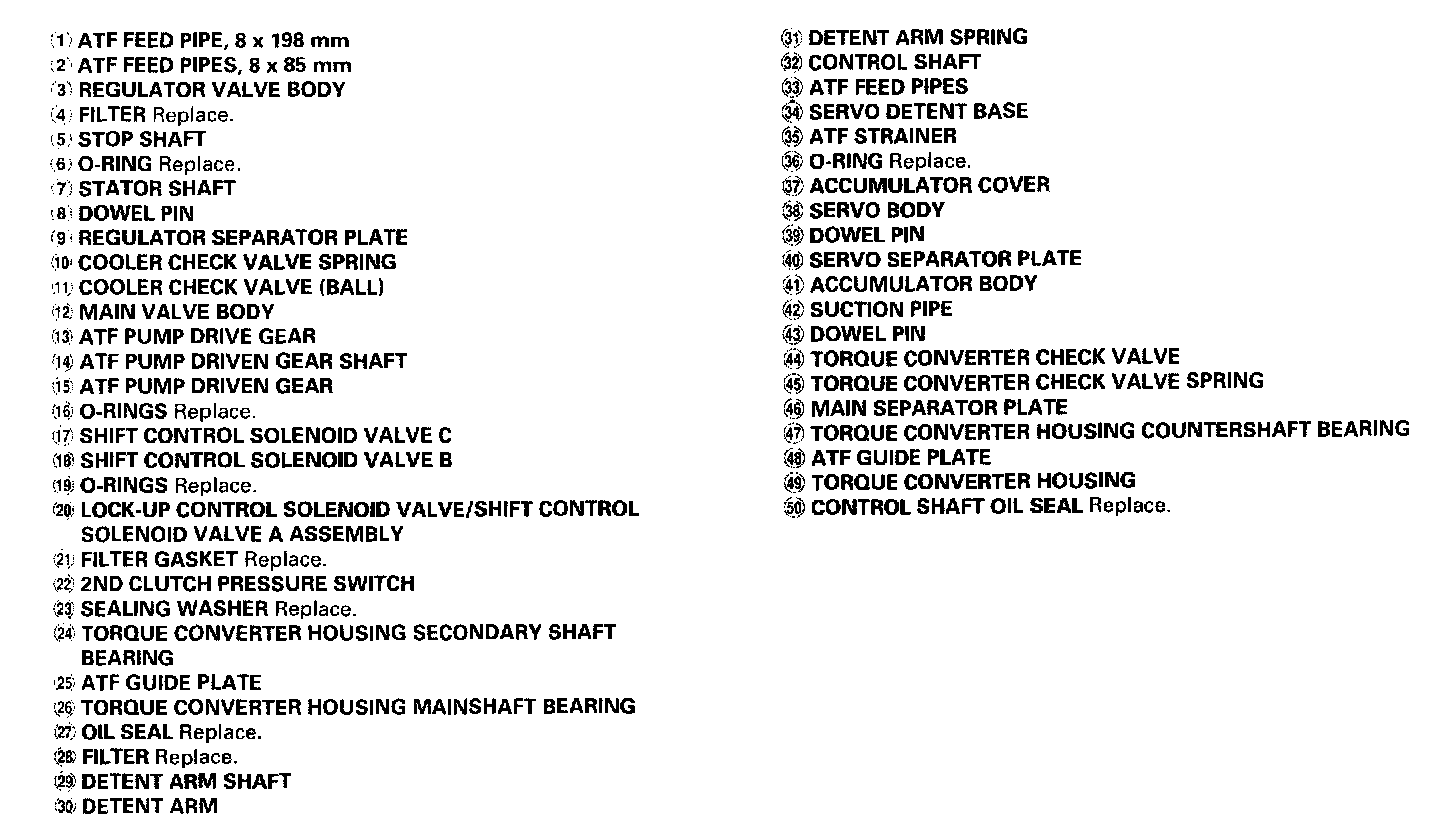

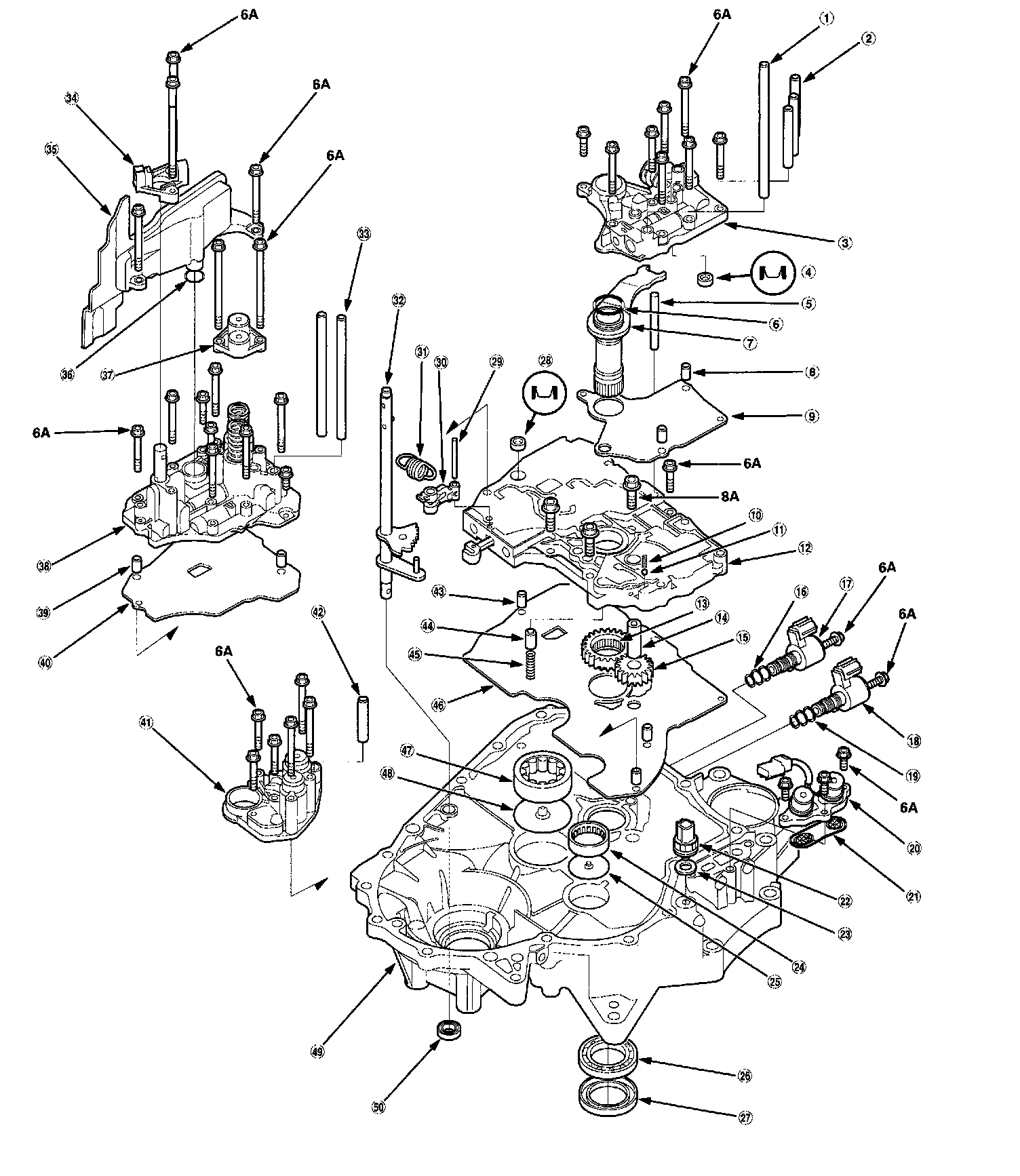

Torque Converter Housing/Valve Body








Torque Specifications
