Electronic Brake Control Module: Service and Repair

Electronic Brake Control Module (EBCM):

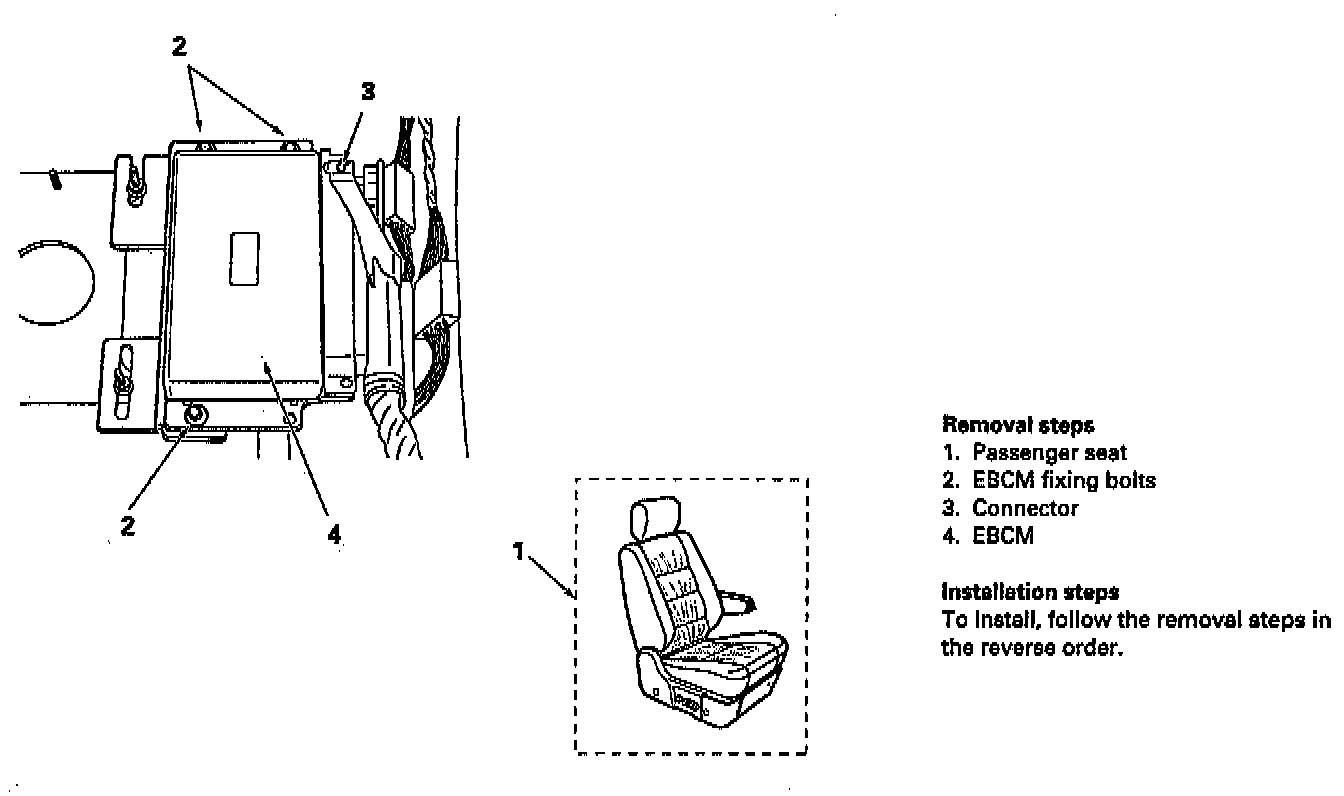

REMOVAL
1. Passenger seat
2. EBCM fixing bolts
3. Connector

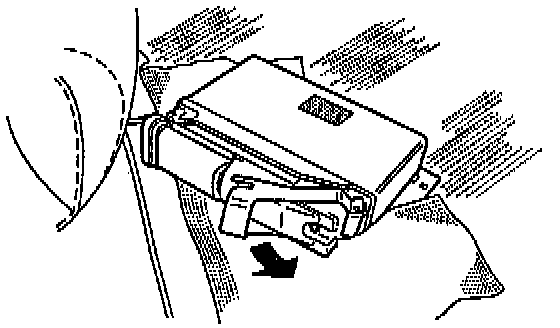

Disconnecting Connector Lock:





- Disconnect connector lock.
- Remove the connector from EBCM.

INSTALLATION
To install, follow the removal steps in the reverse order.
