Diode: Service and Repair

REMOVAL








Preparation: Disconnect the battery ground cable.

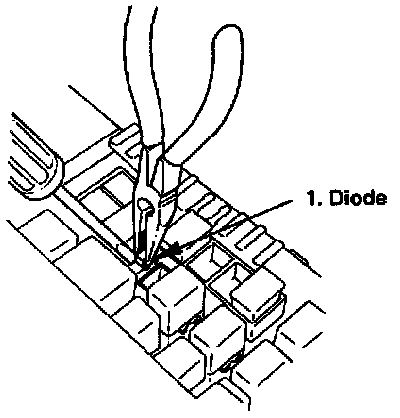

1. Diode
^ Insert a thin screwdriver between the lock rib side of the diode and the connector housing to remove it.
