Electronic Brake Control Module: Service and Repair

- Remove the right kick panel.

- Disconnect the ABS control unit connectors.

- Remove the ABS control unit mounting bolts, then remove the control unit.

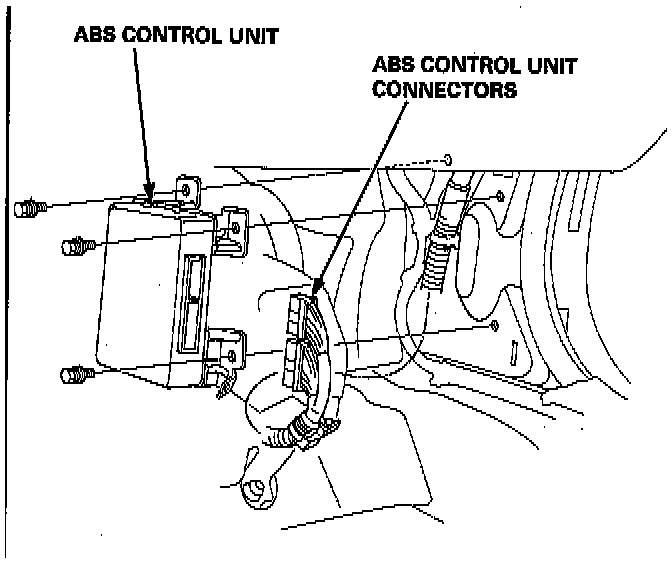

Control Unit Location:





- Install the ABS control unit in the reverse order of removal.
