Home >> Acura >> 1997 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Caliper >> Front

Front

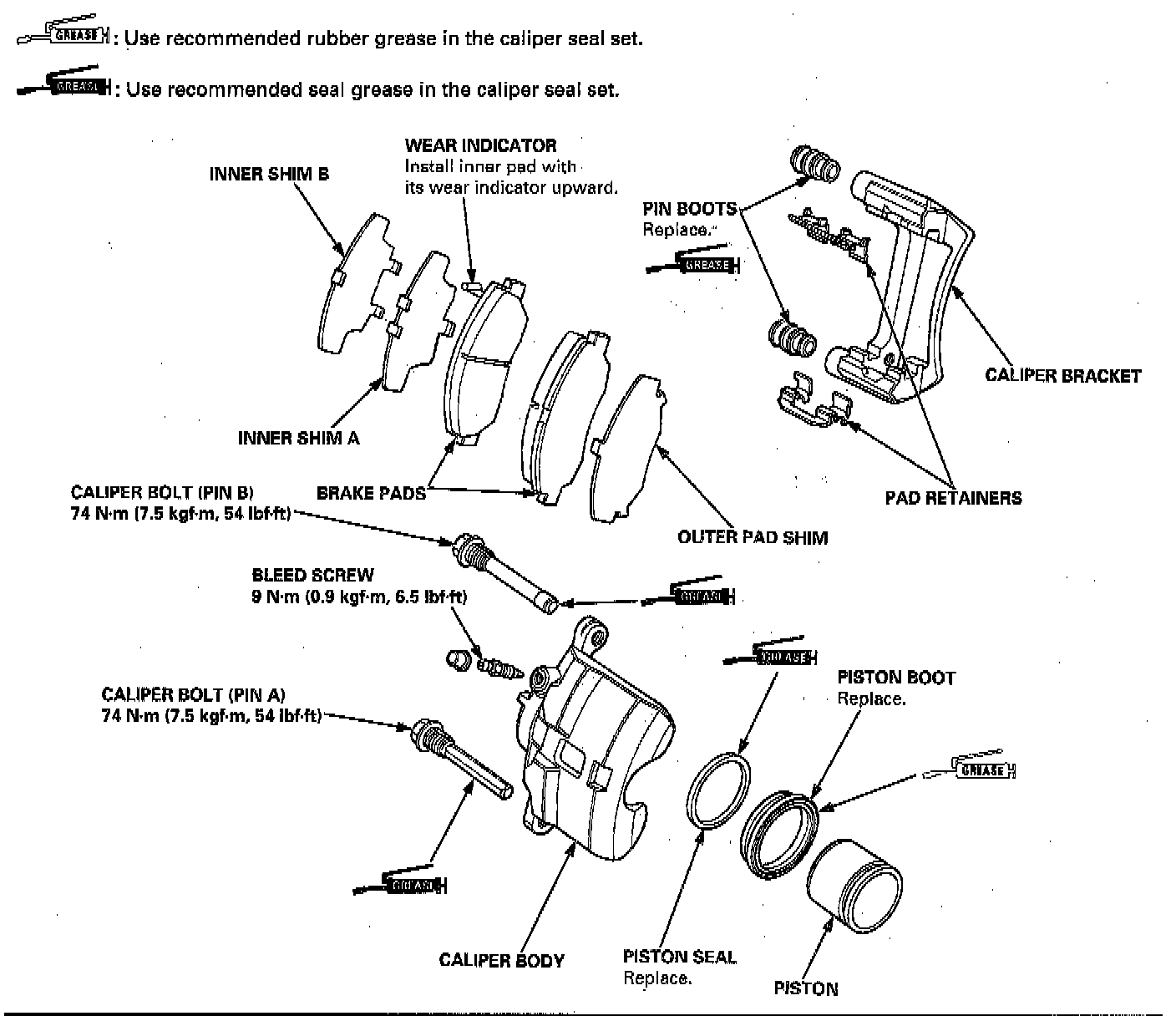

Front Brake Caliper:
