Acura
>>
1996
>>
SLX V6-3.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

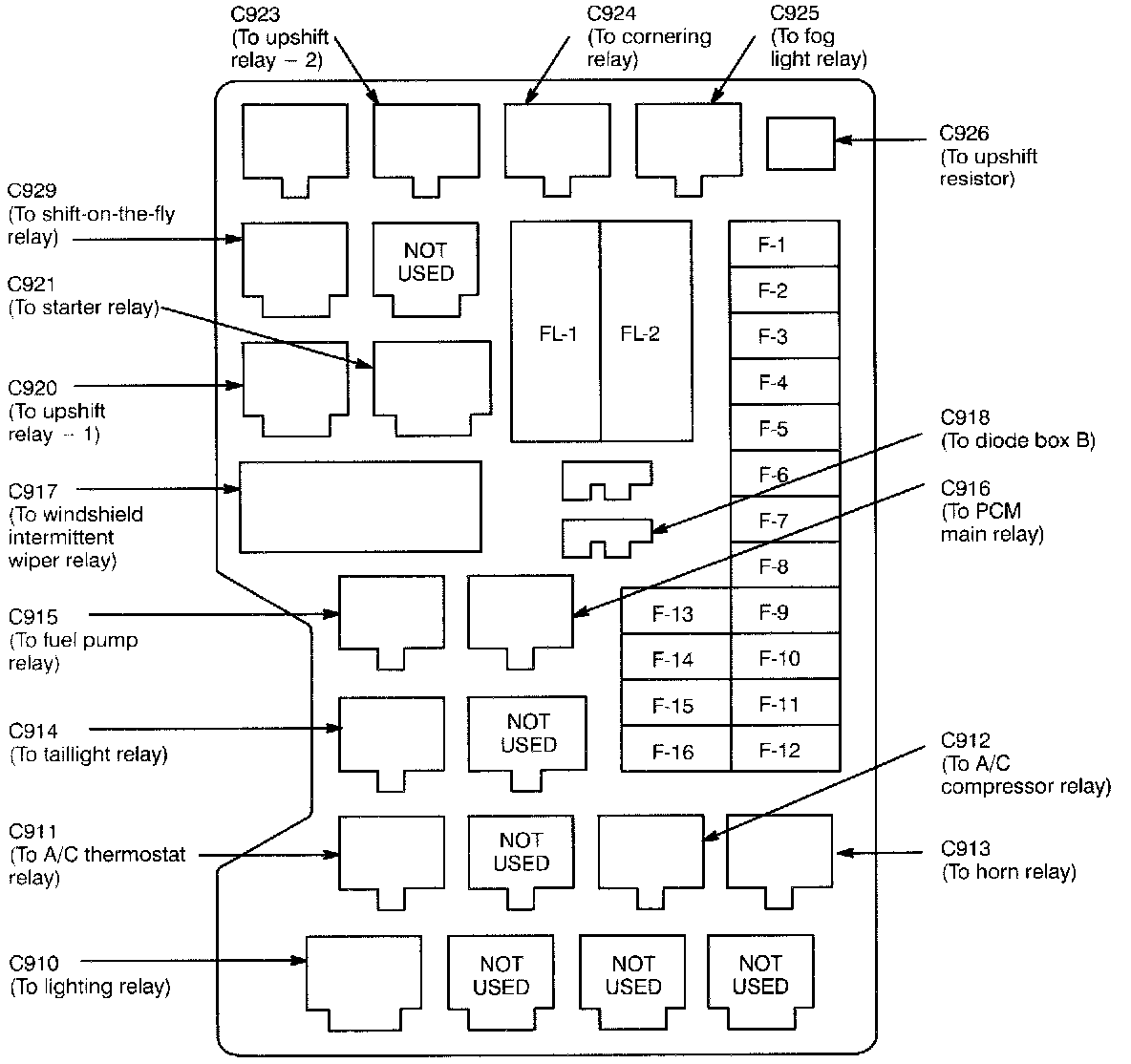

Fuse/Relay Box
Fuse/Relay Box

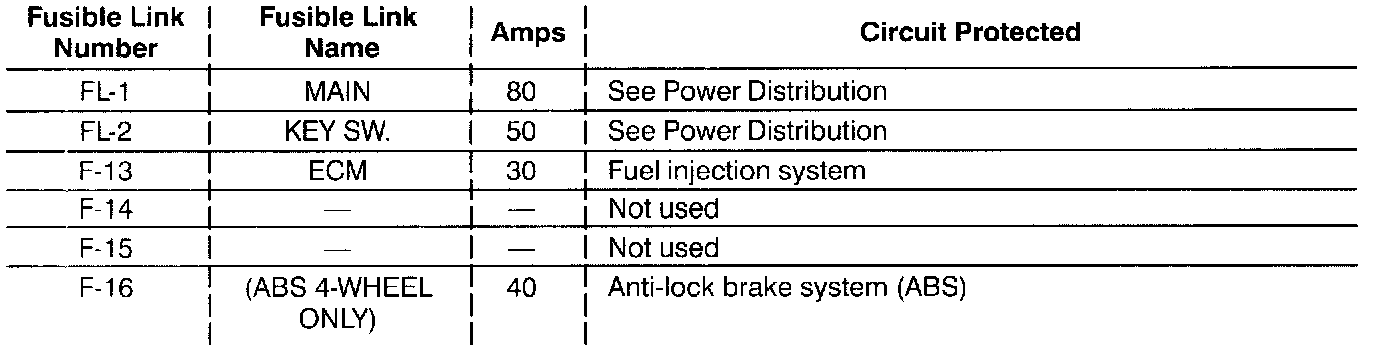

Fuse/Relay Information-Fuse/Relay Box (Part 1a Of 2):

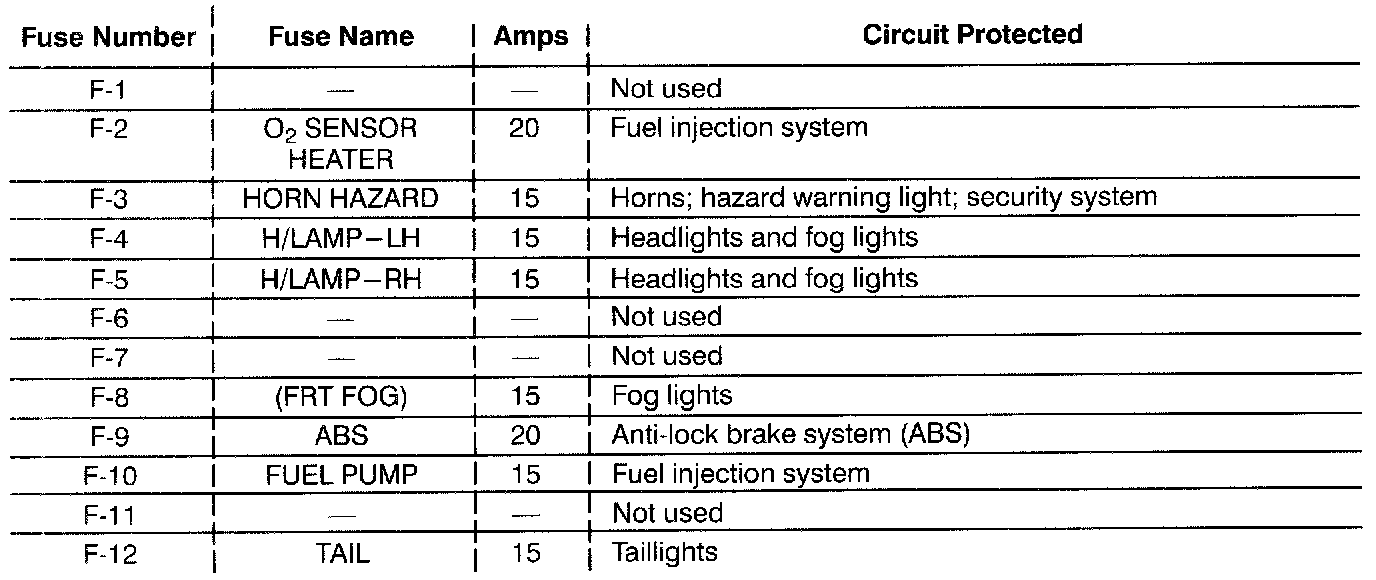

Fuse/Relay Information-Fuse/Relay Box (Part 1b Of 2):
Fuse/Relay Information-Fuse/Relay Box (Part 2 Of 2):
