Cruise Speed Cannot Be Set

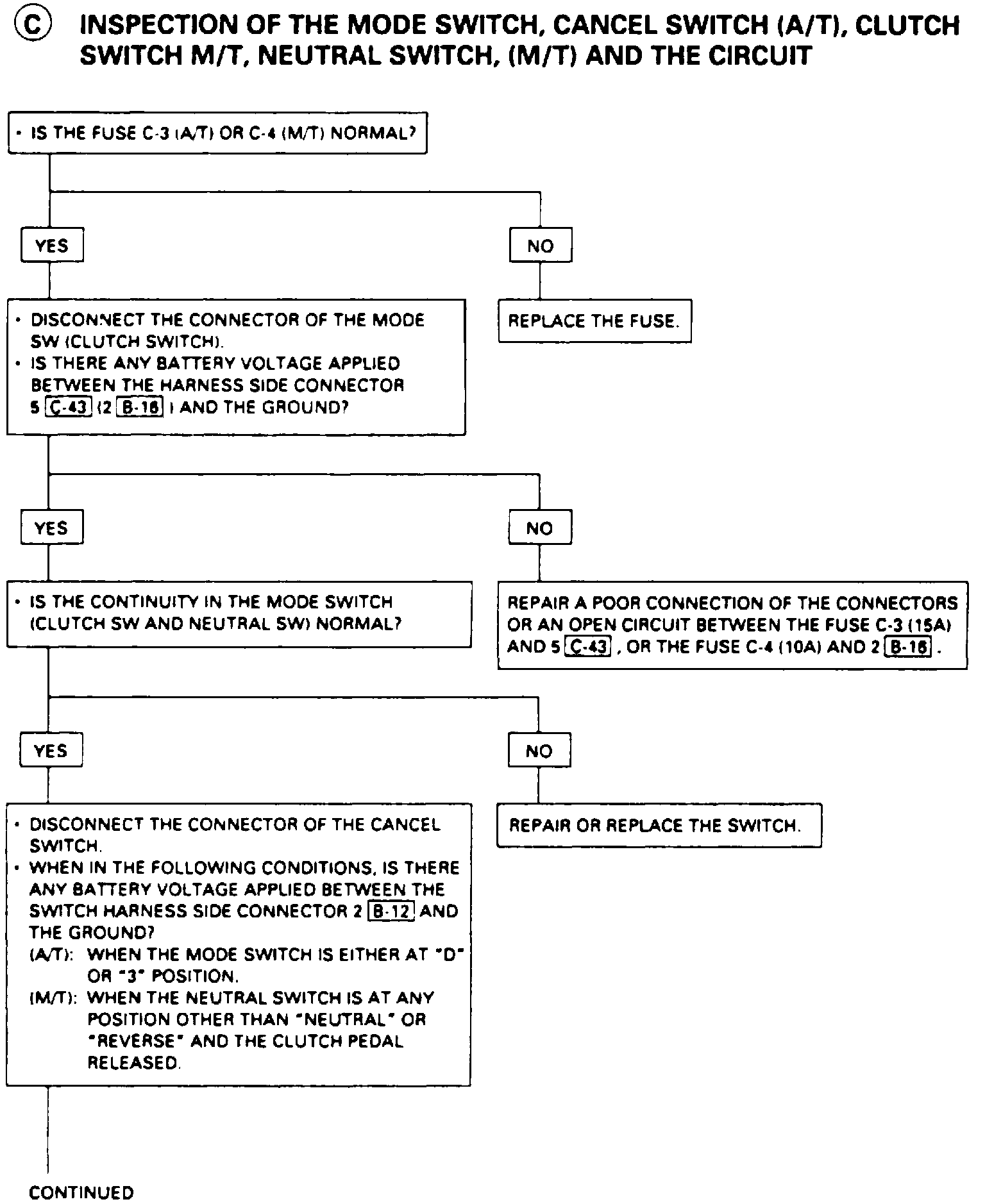

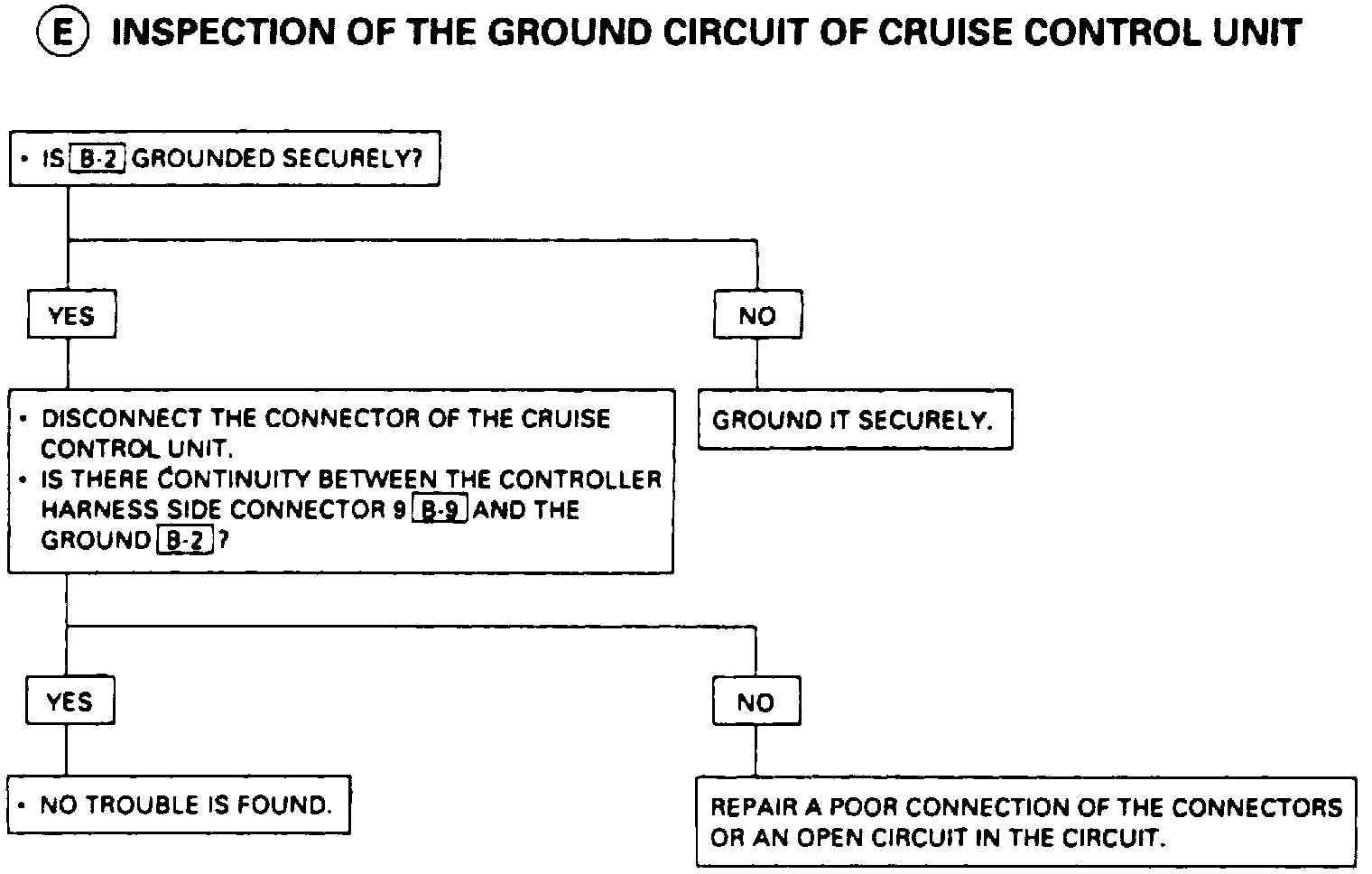

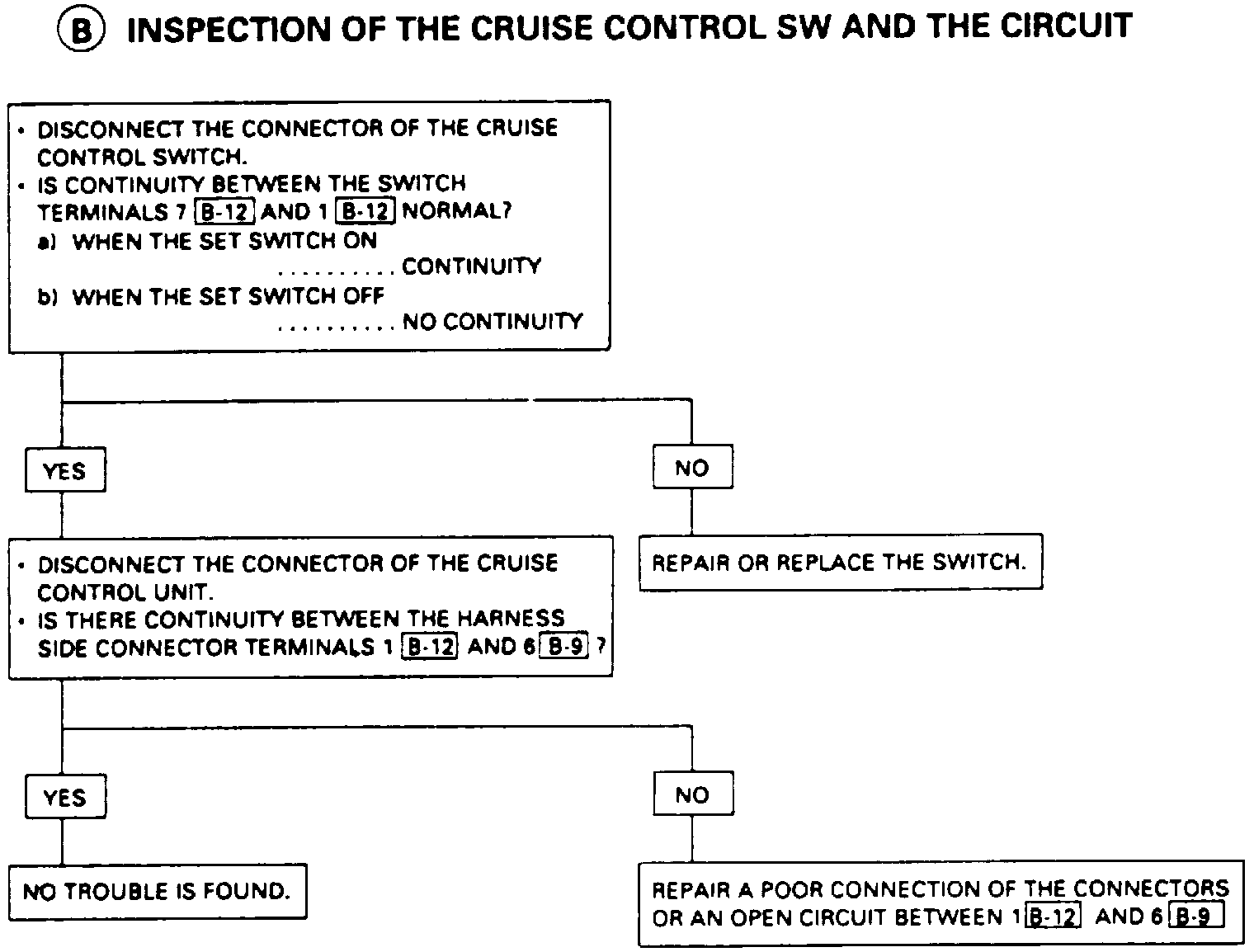

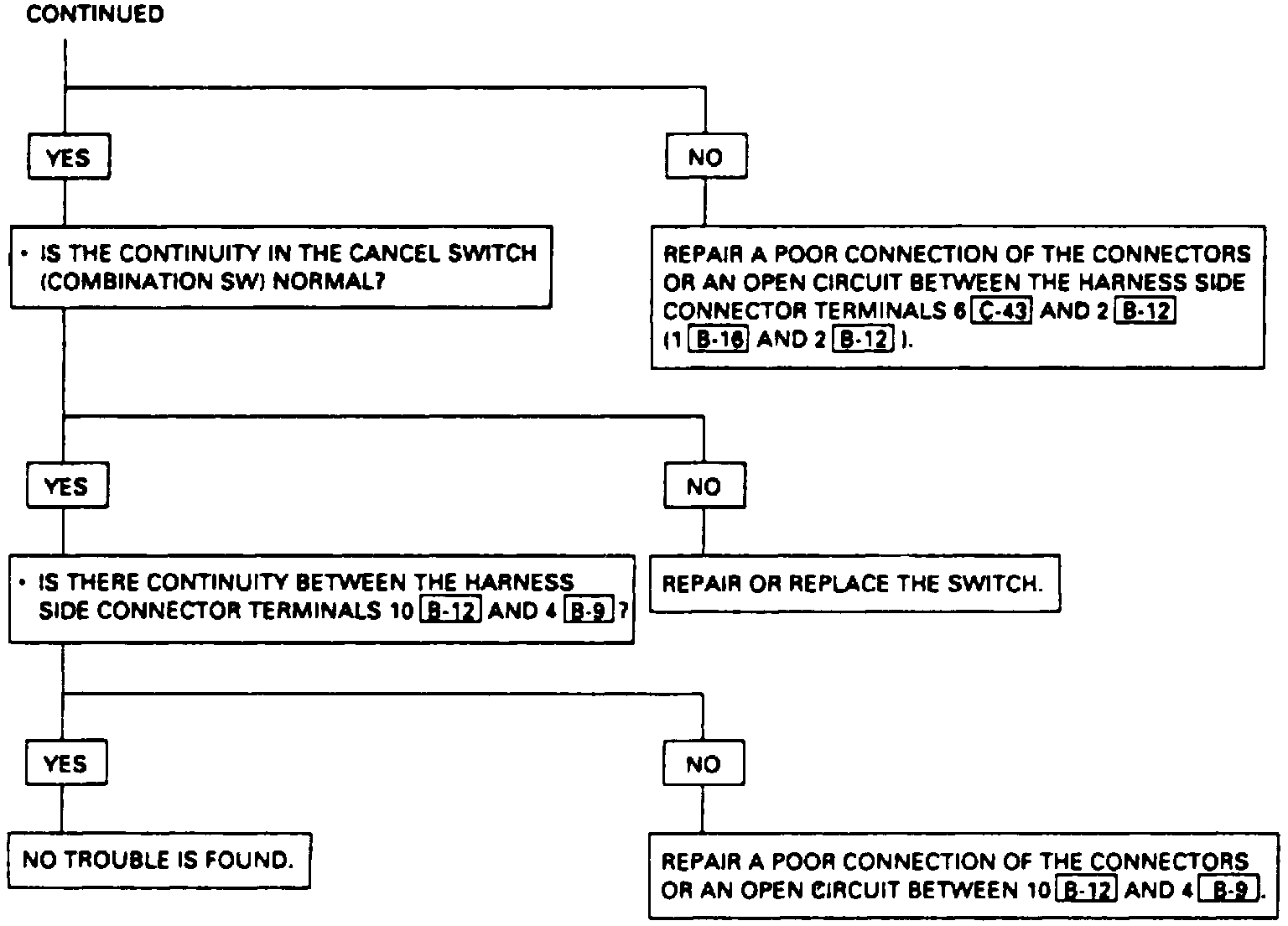

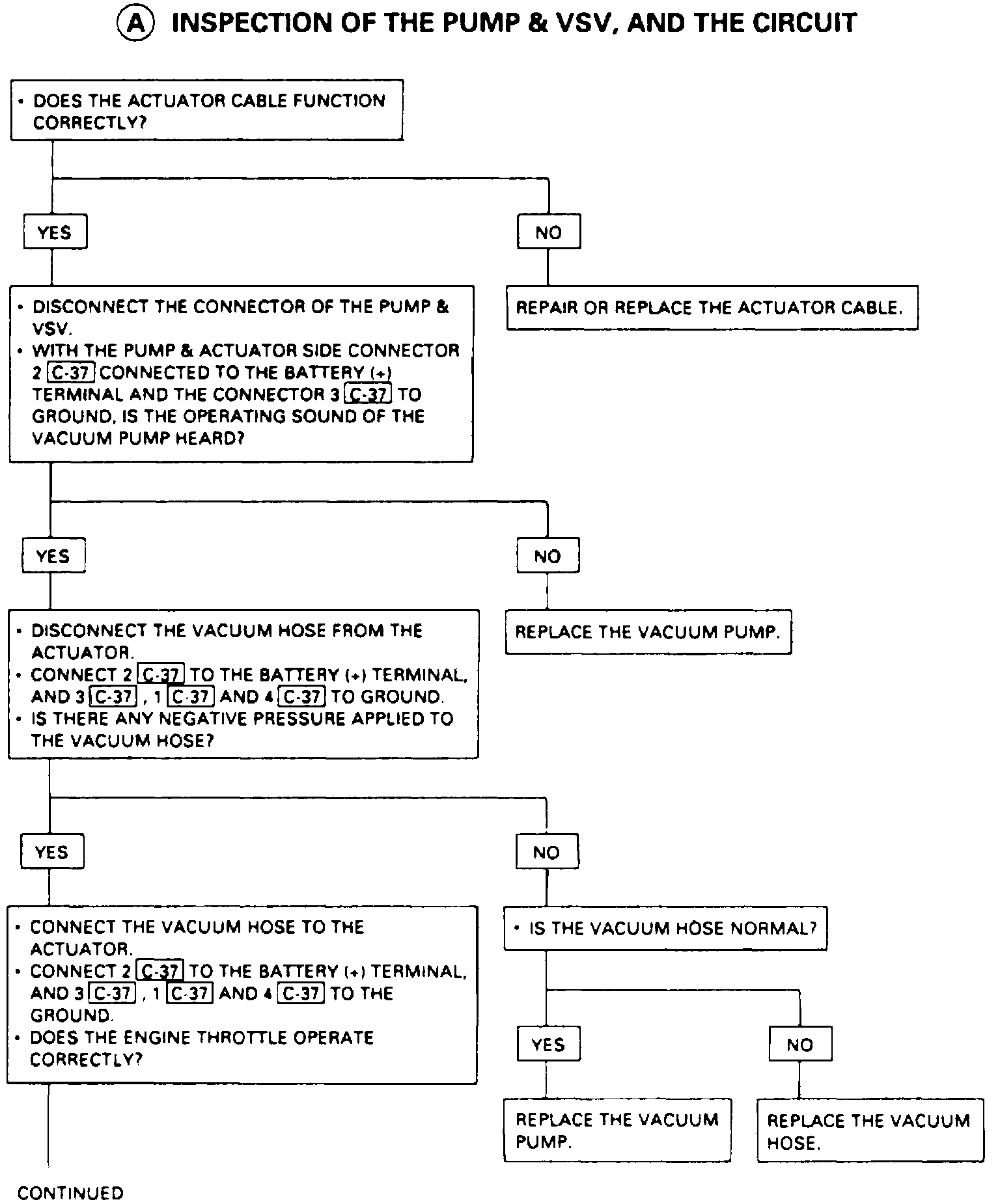

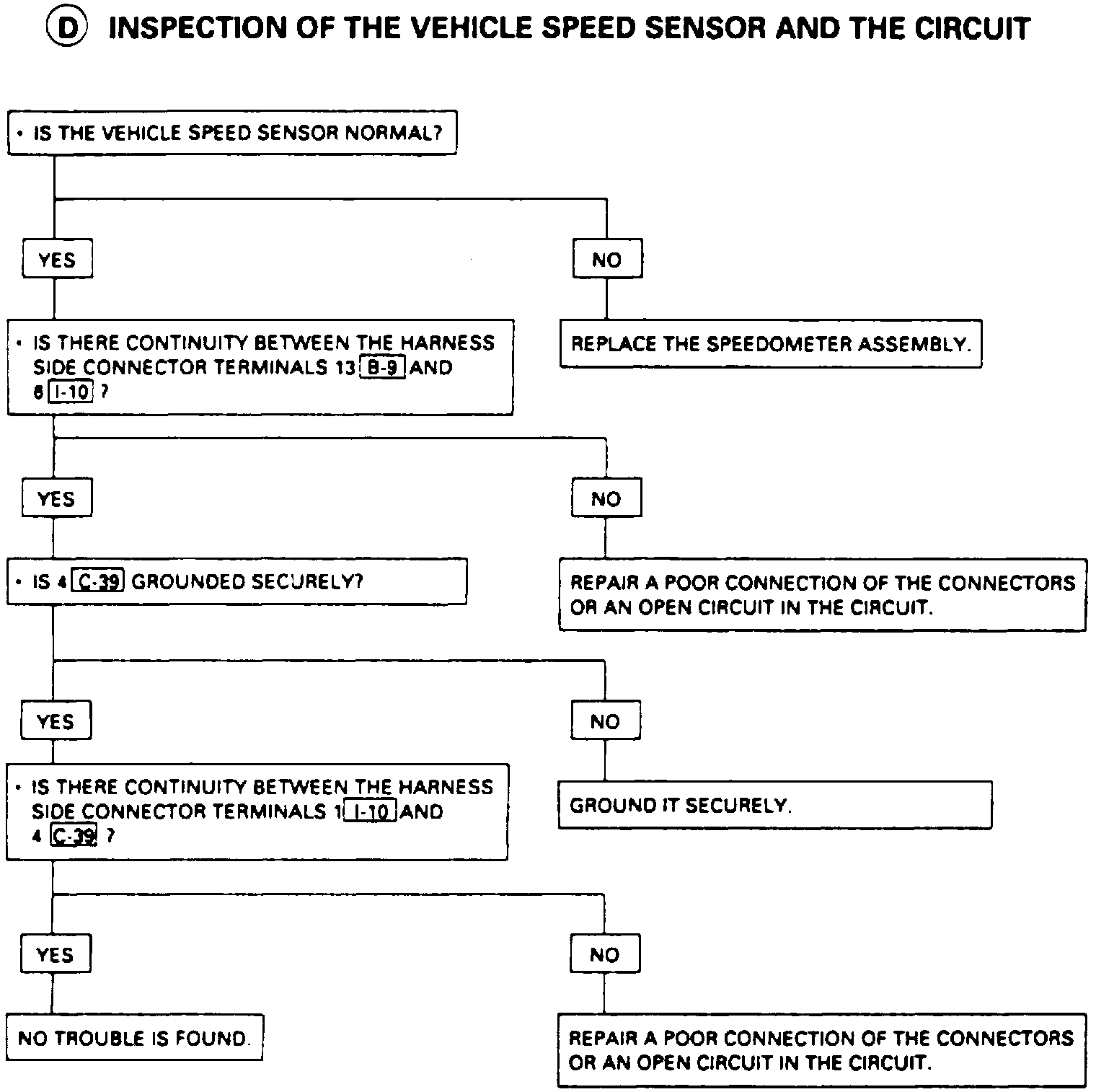

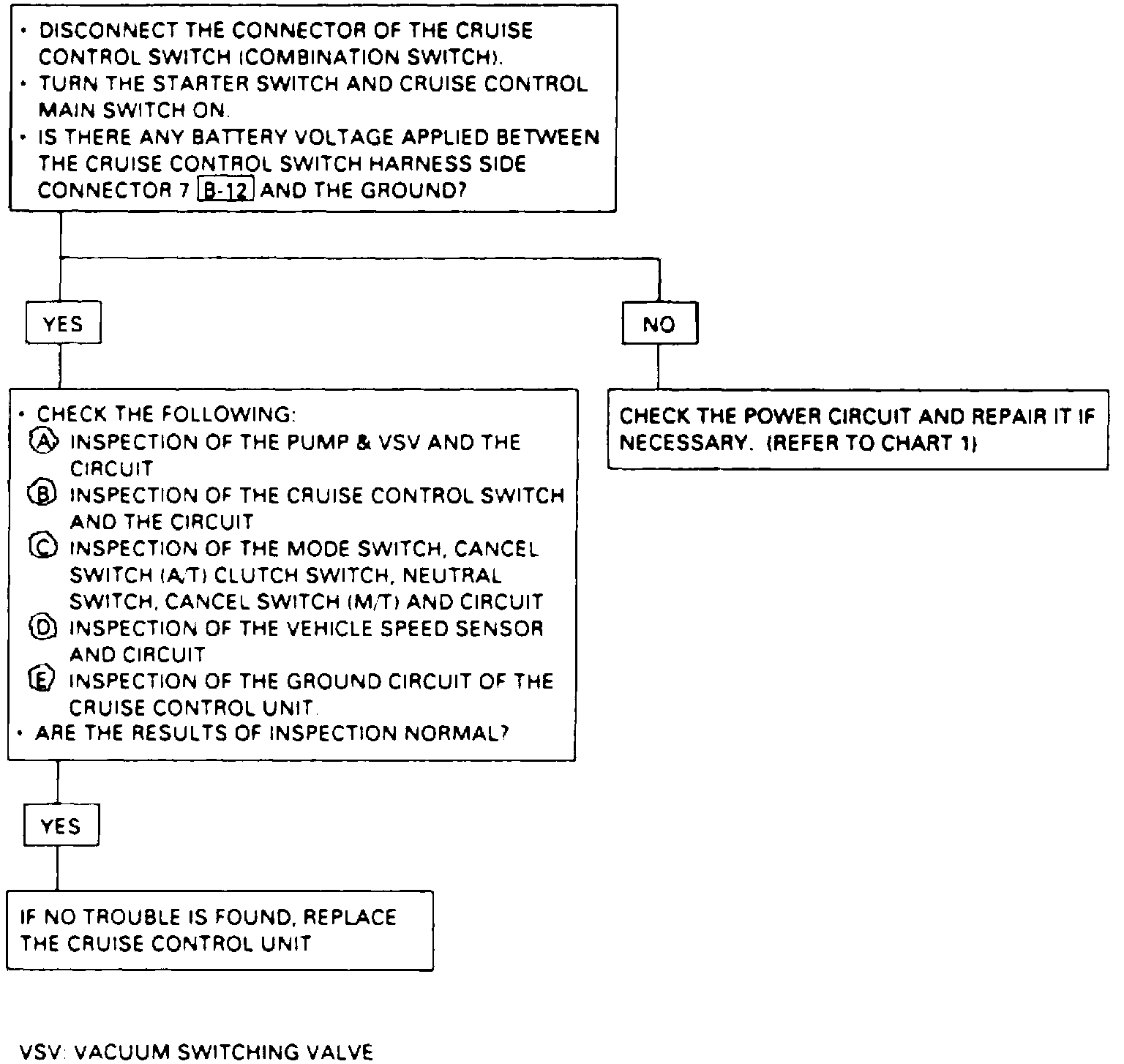

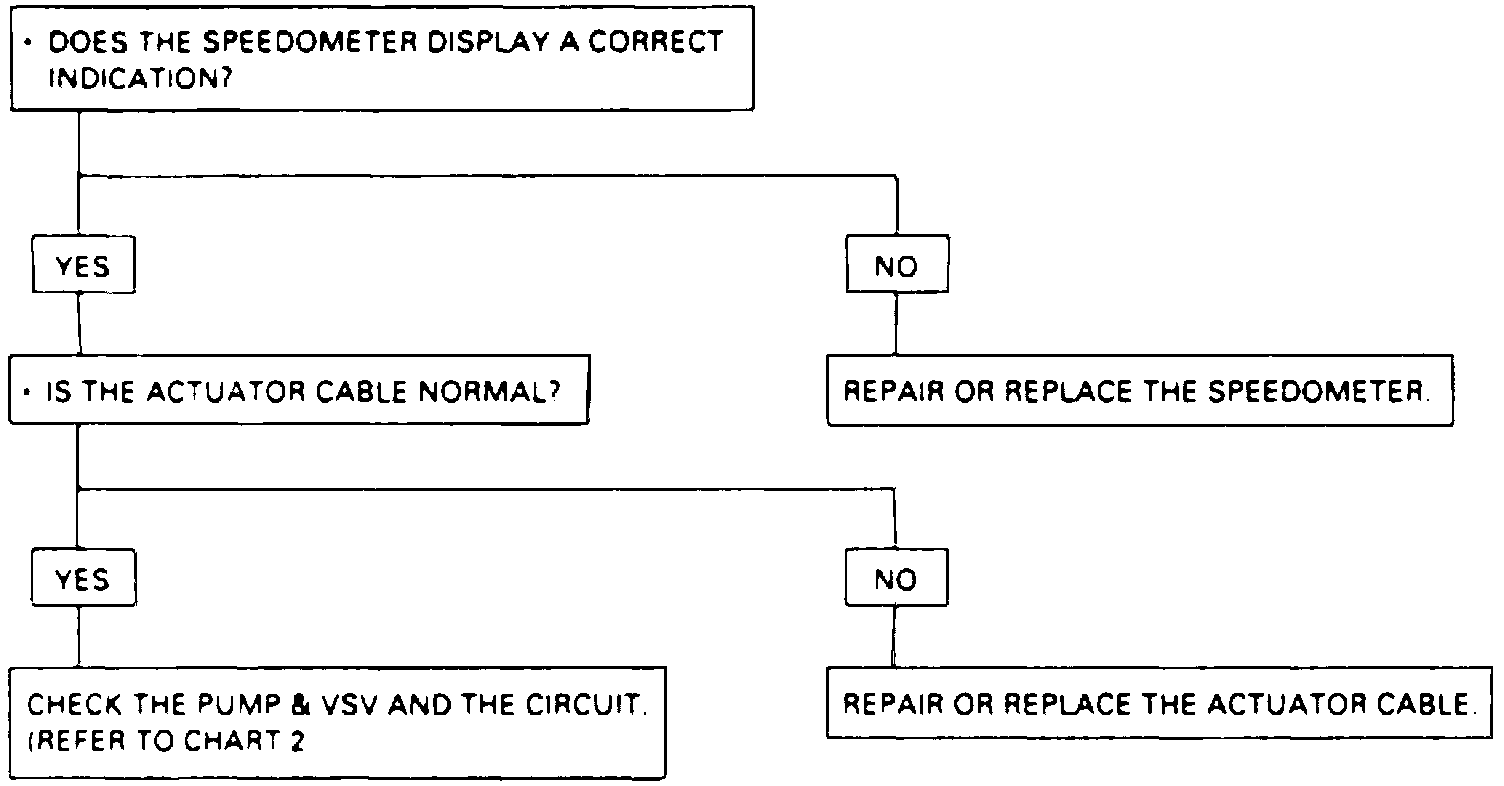

Fig. 26 Chart 2, Cruise Speed Cannot Be Set (Part 1 Of 8):

Fig. 26 Chart 2, Cruise Speed Cannot Be Set (Part 2 Of 8):

Fig. 26 Chart 2, Cruise Speed Cannot Be Set (Part 3 Of 8):

Fig. 26 Chart 2, Cruise Speed Cannot Be Set (Part 4 Of 8):

Fig. 26 Chart 2, Cruise Speed Cannot Be Set (Part 5 Of 8):

Fig. 26 Chart 2, Cruise Speed Cannot Be Set (Part 6 Of 8):

Fig. 26 Chart 2, Cruise Speed Cannot Be Set (Part 7 Of 8):

Fig. 26 Chart 2, Cruise Speed Cannot Be Set (Part 8 Of 8):

Refer to Fig. 26 for cruise control diagnosis and testing.
