DTC 4-9: Abs Inoperative

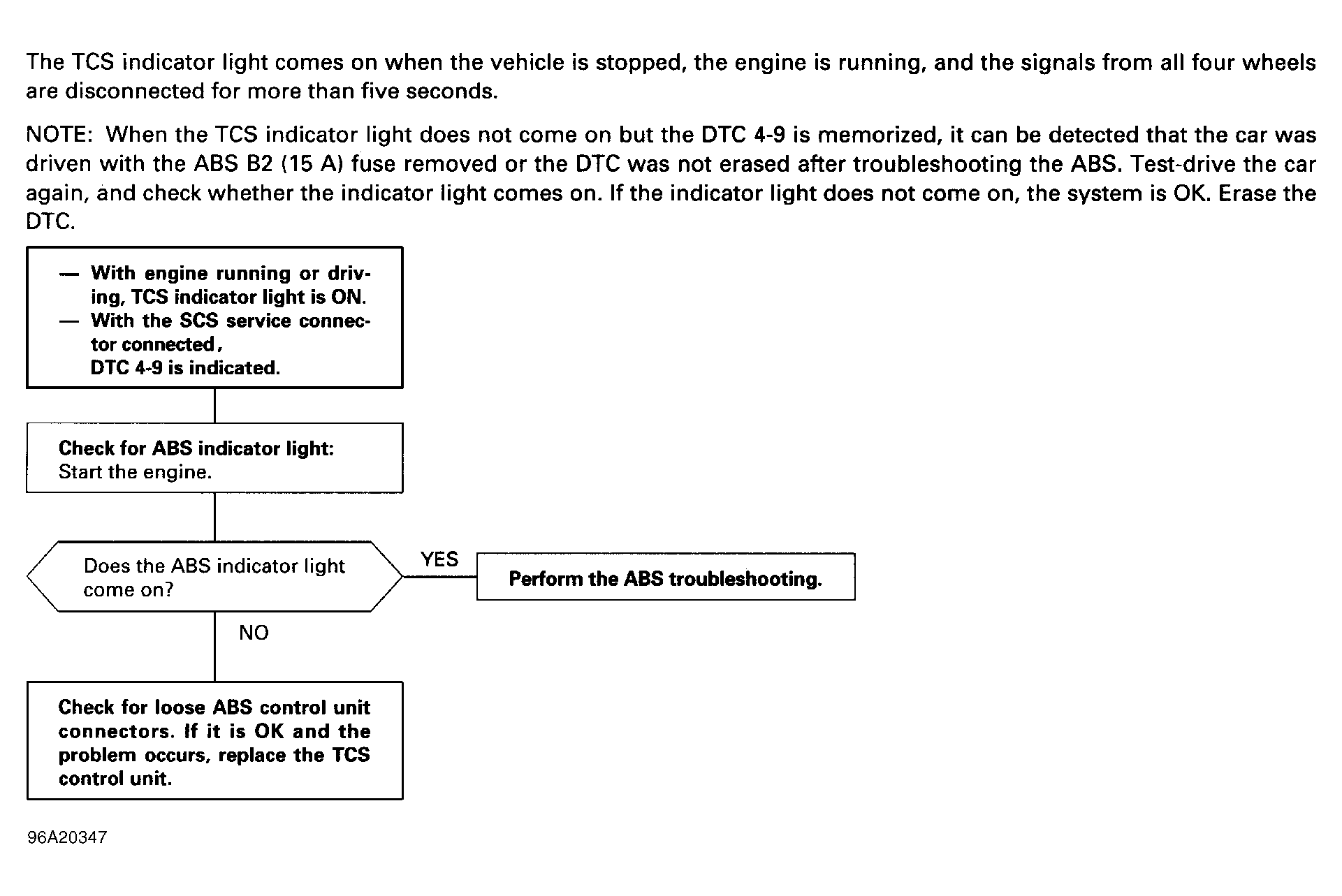

Fig 1: DTC 4-9: ABS Inoperative

G96A20347

Courtesy of AMERICAN HONDA MOTOR CO., INC.
