Home >> Acura >> 1996 >> 3.2TL >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Diagnostic Tests >> DTC 8-1: Abs Function

DTC 8-1: Abs Function

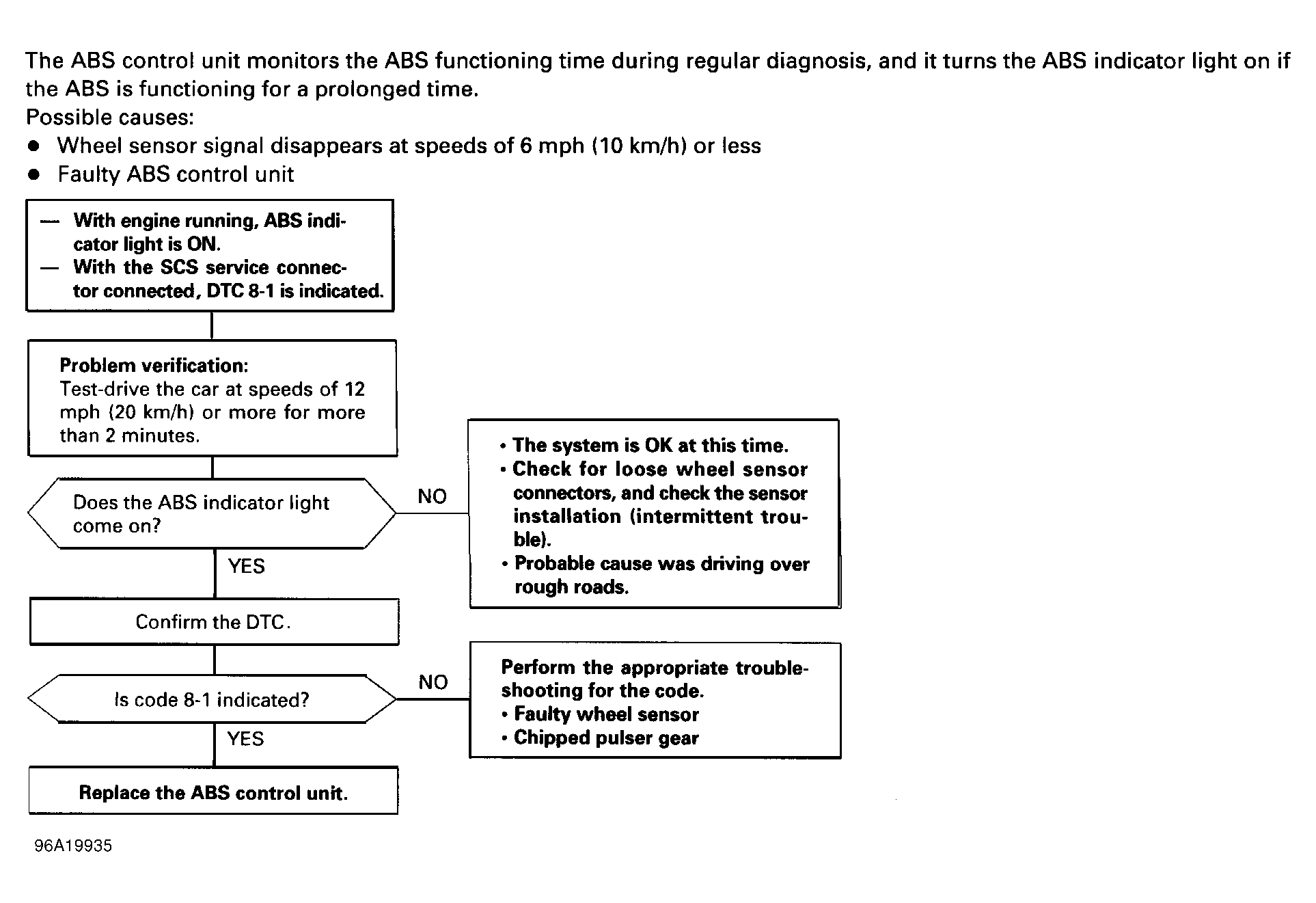

Fig 1: DTC 8-1 - ABS Function

G96A19935

Courtesy of AMERICAN HONDA MOTOR CO., INC.
