Torque Specifications

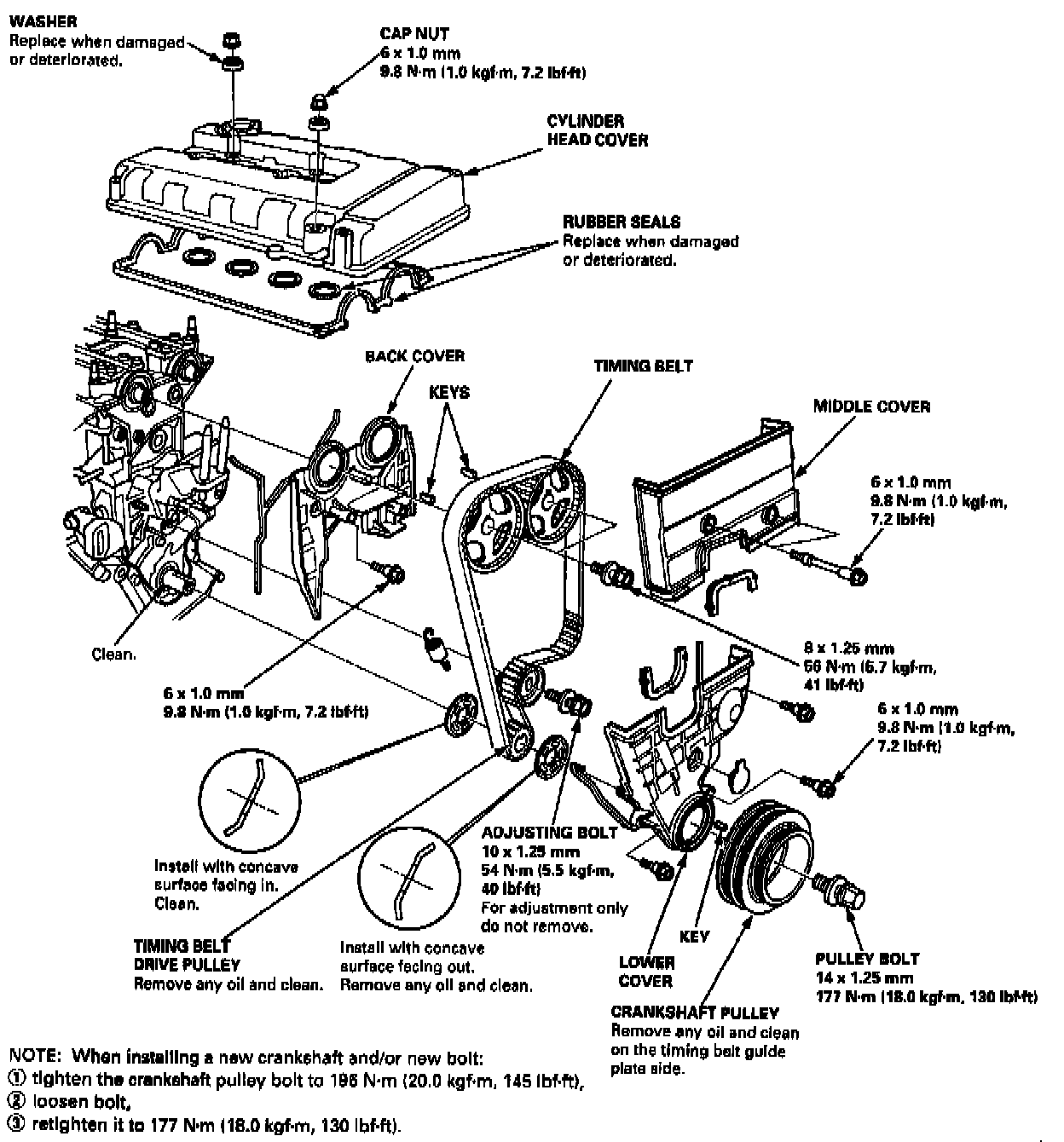

Timing Components:

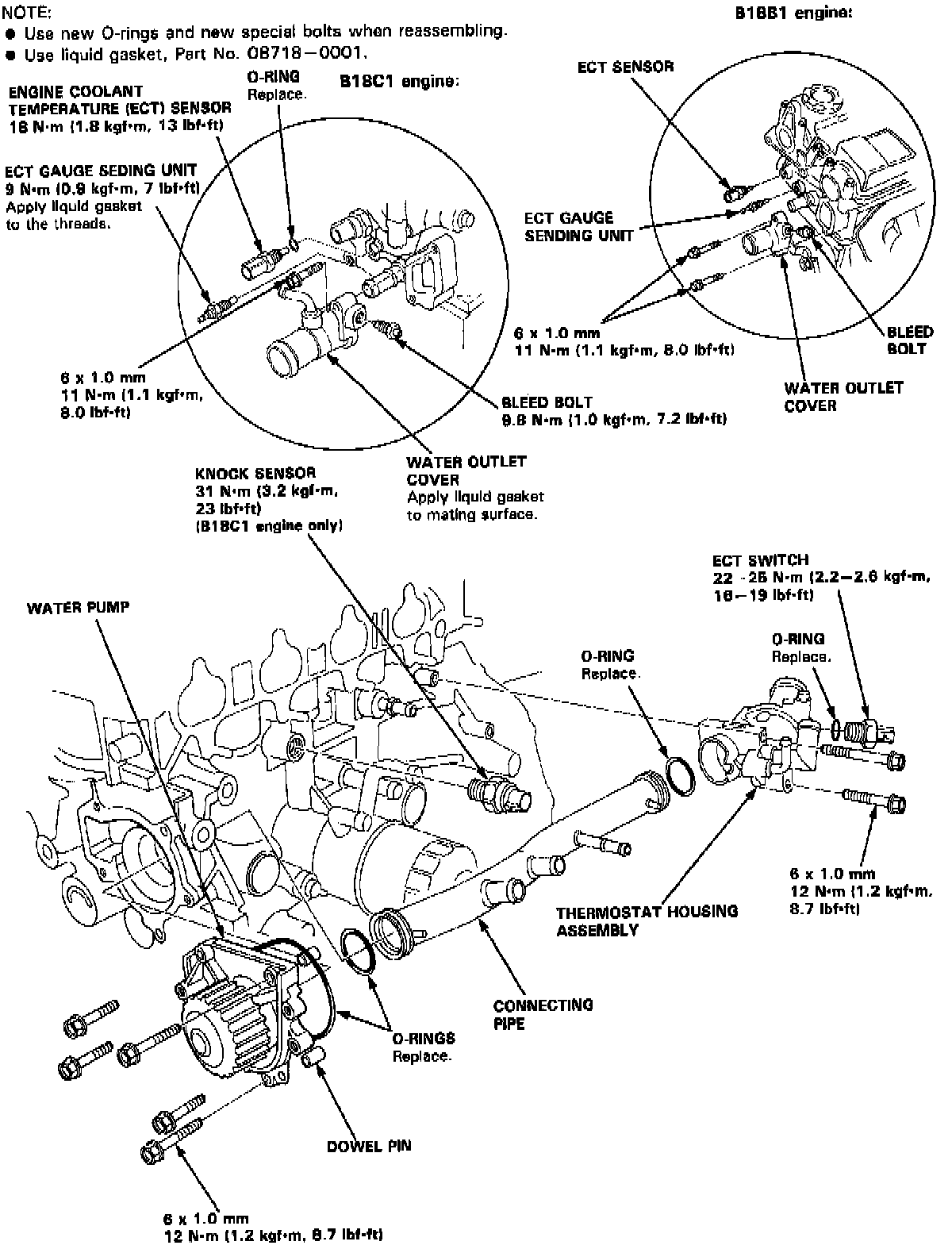

Water Pump:

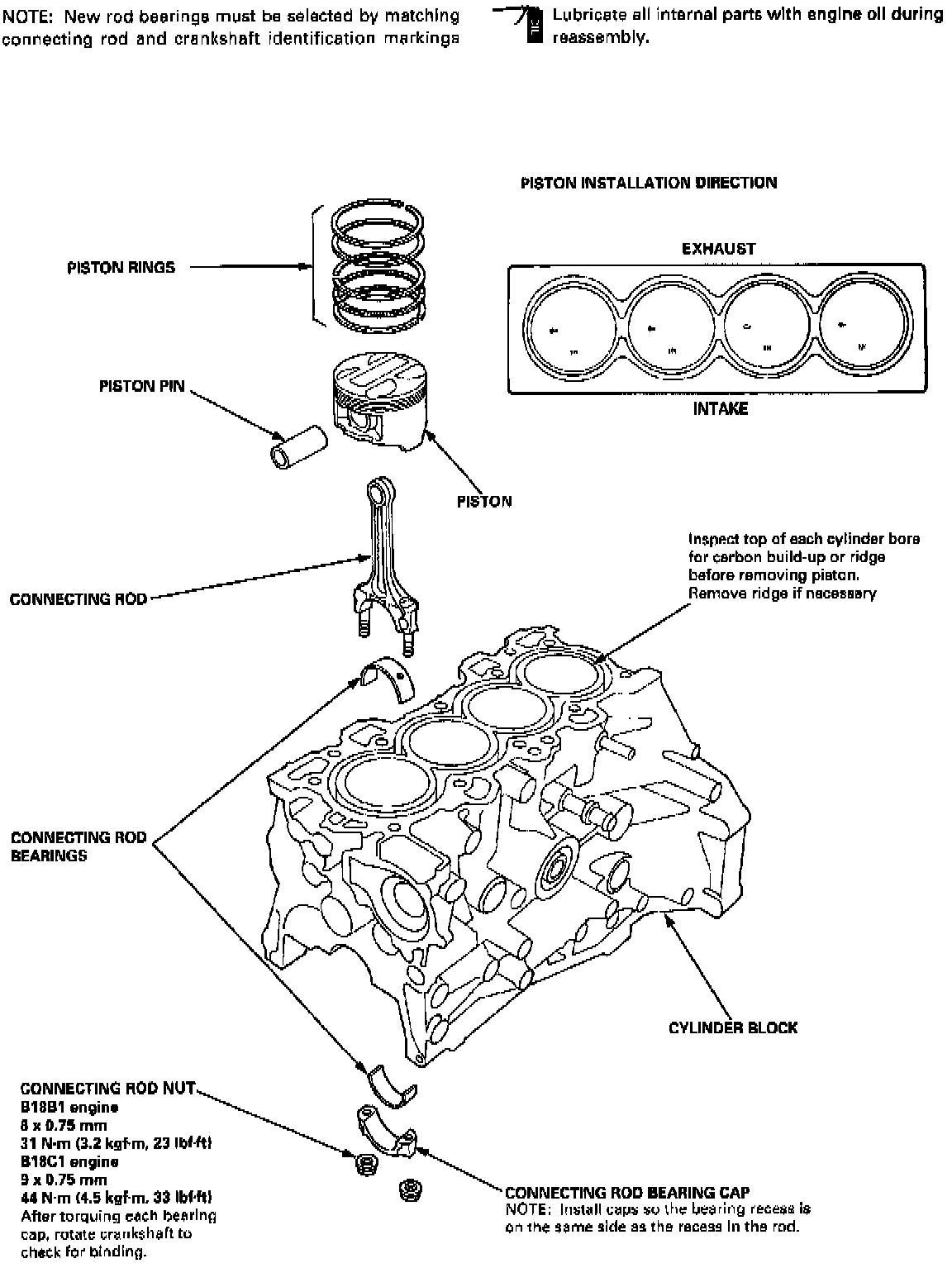

Lower Engine:

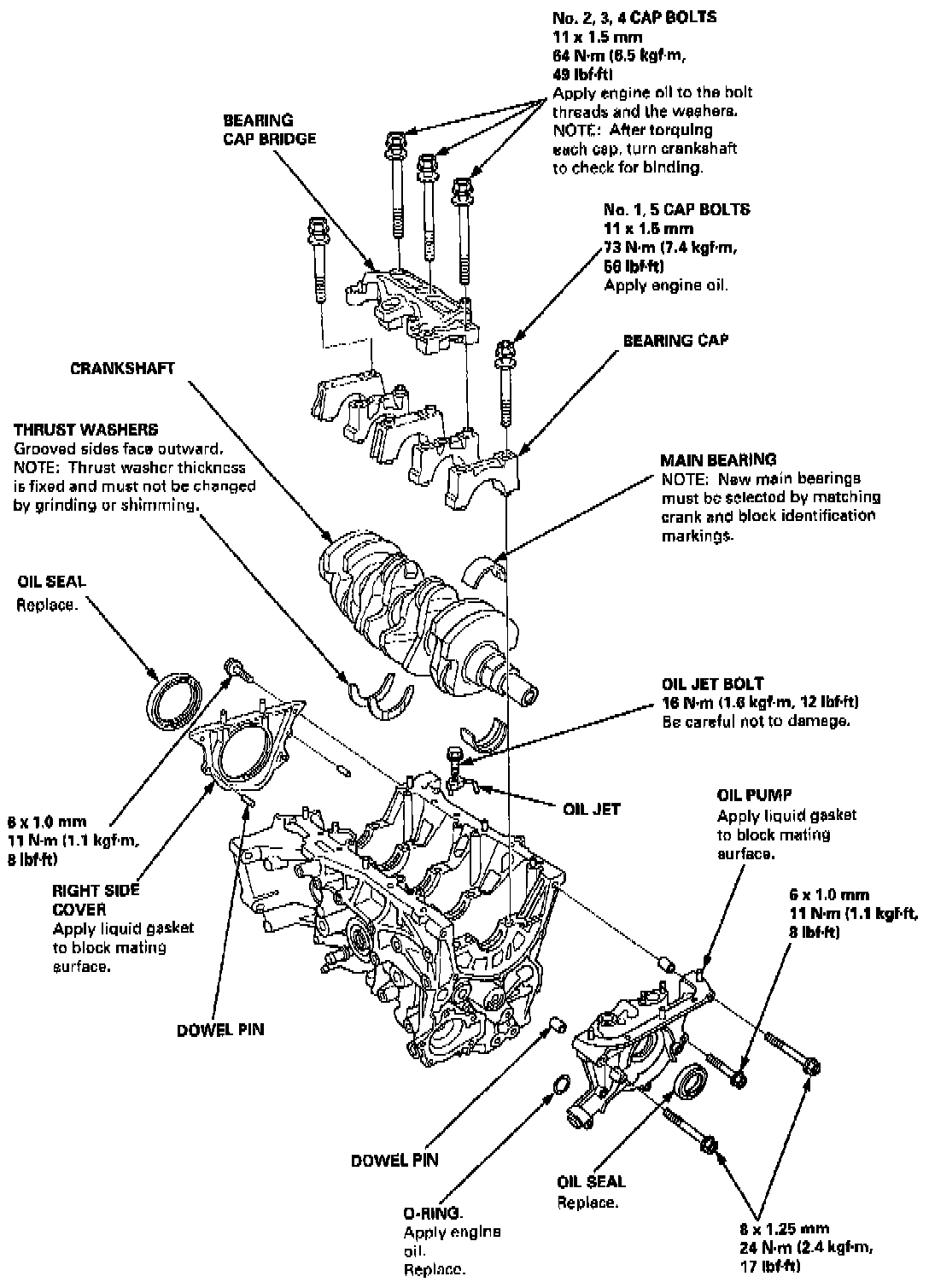

Main Bearing Torque/Sequence:

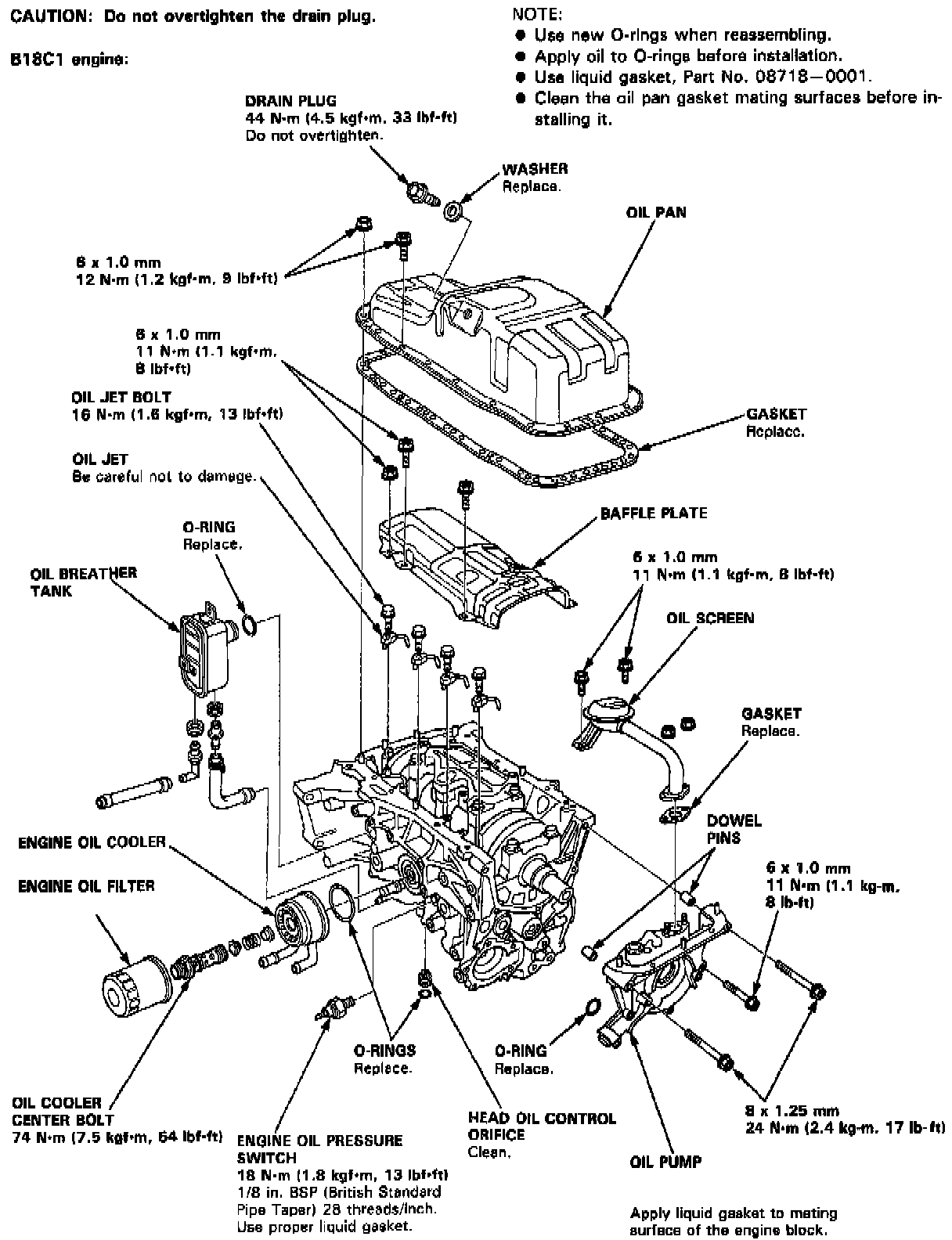

Engine Lubrication:

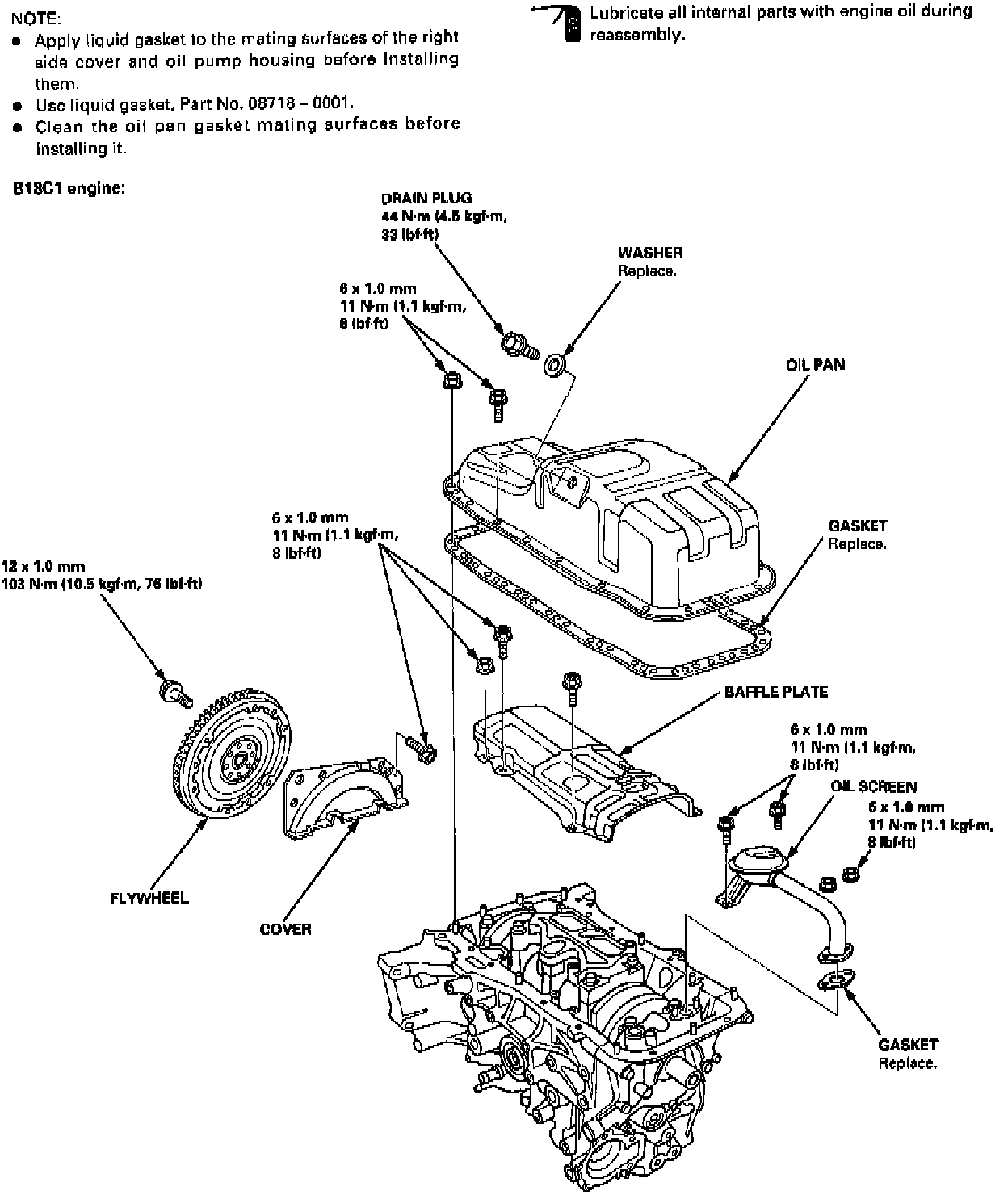

Flywheel (M/T) Torque/Sequence:






Drive Plate (A/T) Torque/Sequence:
