System Specifications

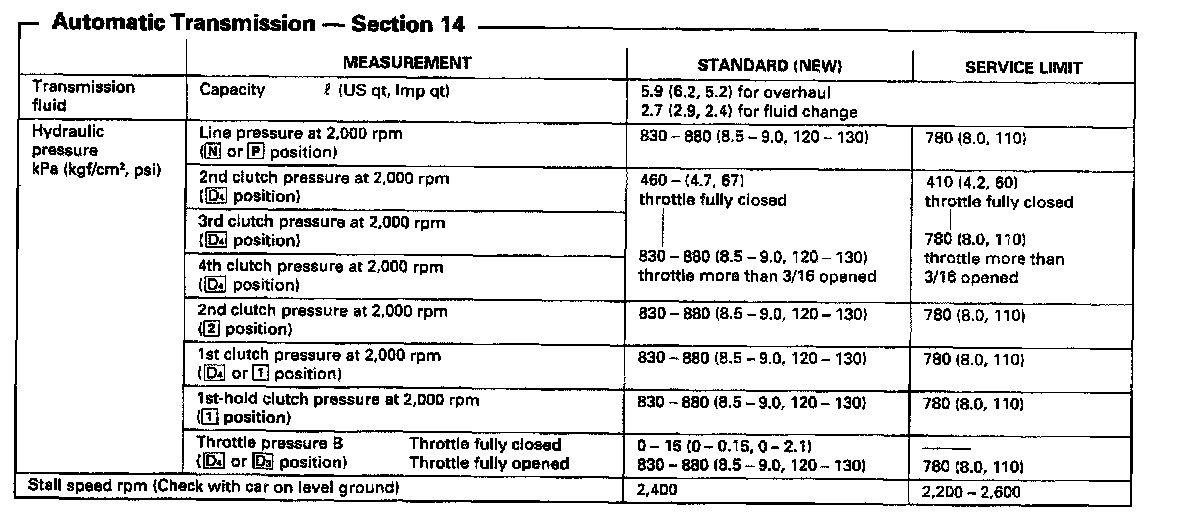

SP7A 4-spd A/T, Line Pressure, Stall Speed:

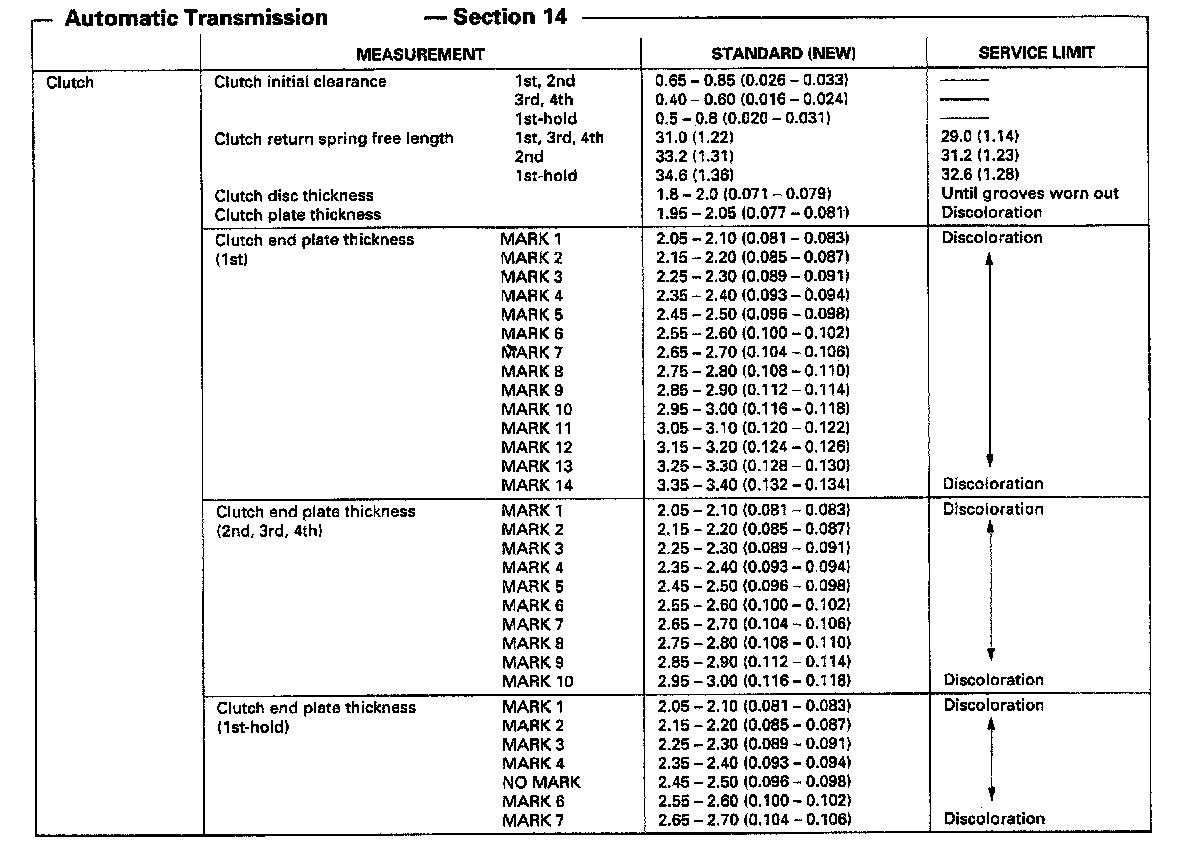

SP7A 4-spd A/T, Clutch Thickness:

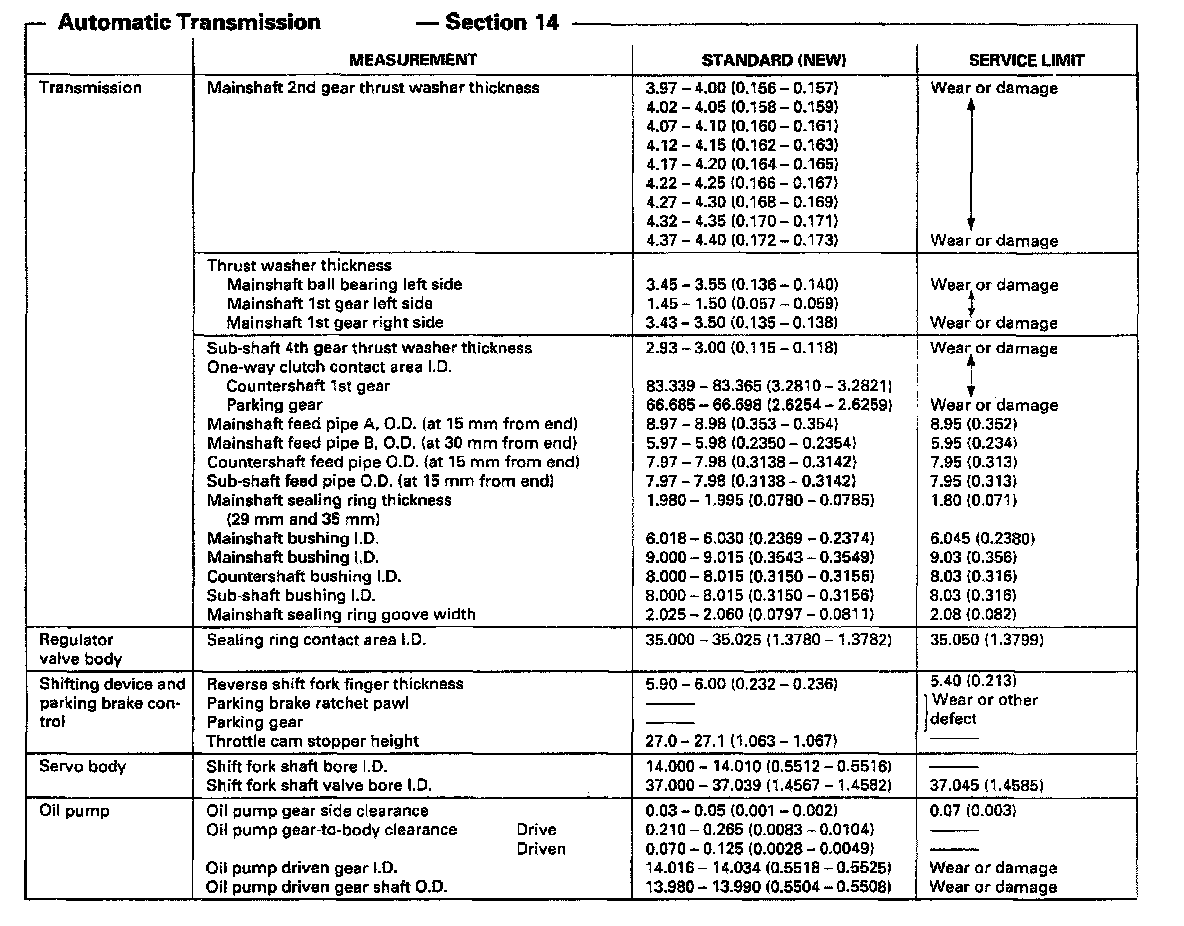

SP7A 4-spd A/T, Transmission Measurements:

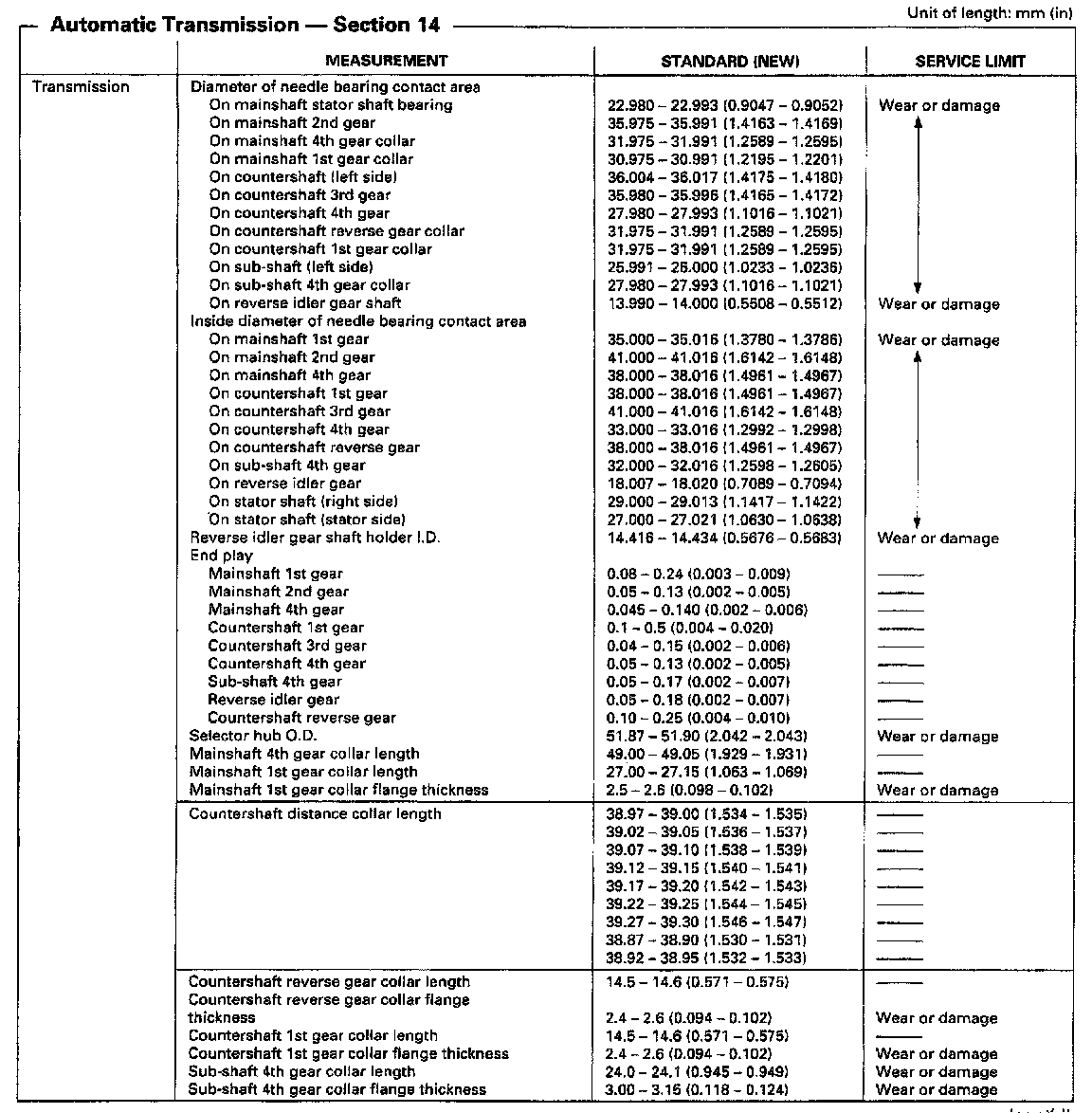

SP7A 4-spd A/T, Mainshaft/Countershaft, Oil Pump Clearances:

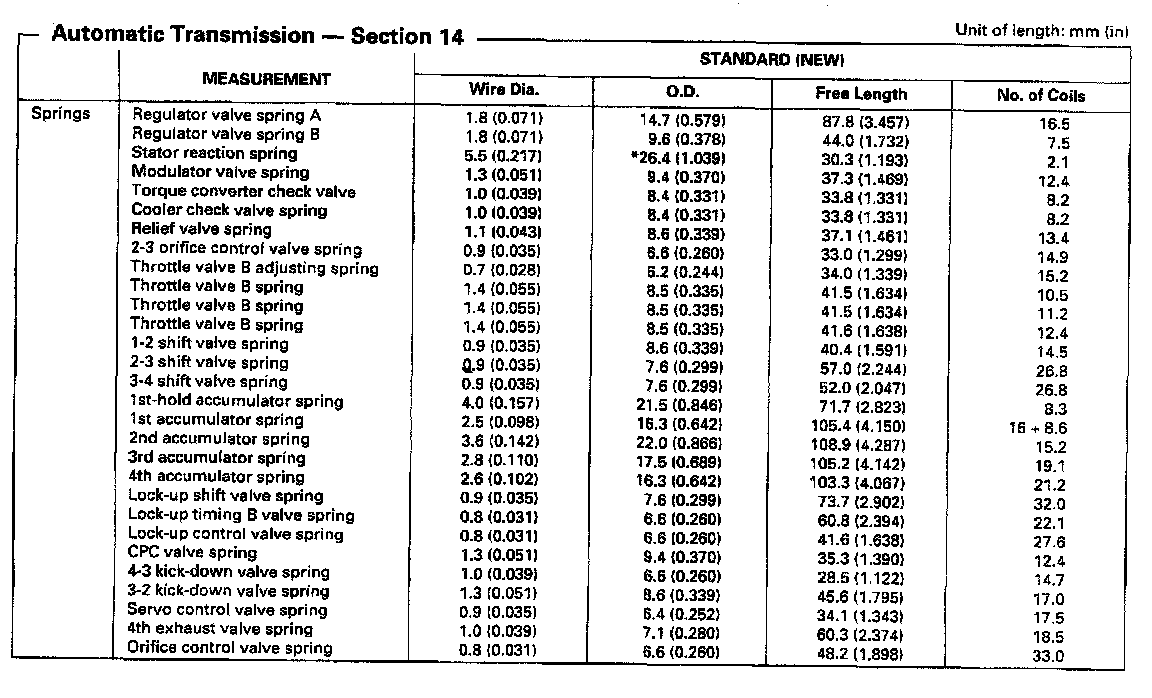

SP7A 4-spd A/T, Transmission Spring Measurements:





Manual/Automatic Transmission Clutch Ratio:




Manual/Automatic Transmission Gear Ratios:
