Home
>>
Acura
>>
1995
>>
Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

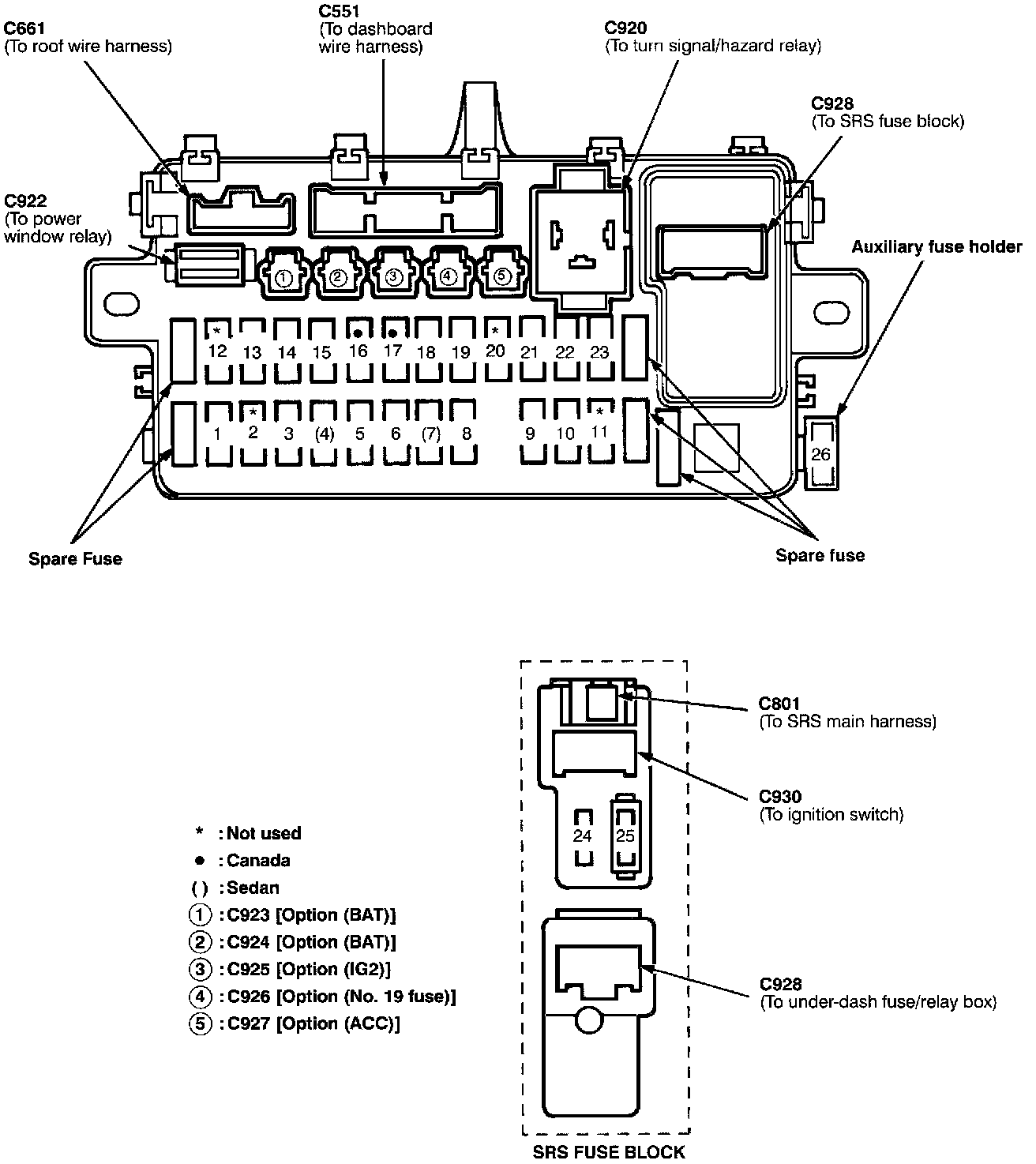

Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box

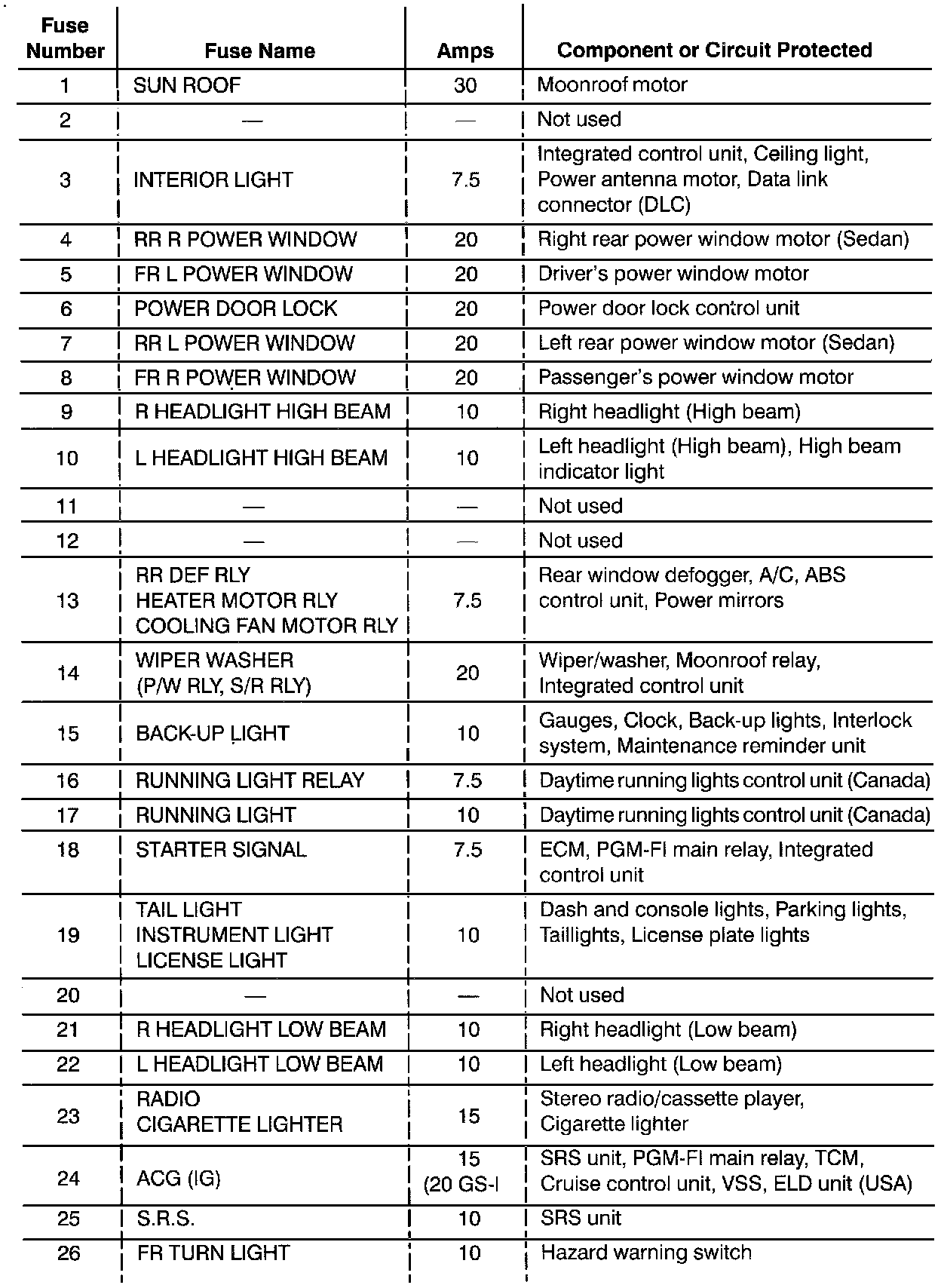

Fuse/Relay Information-Under-dash Fuse/Relay Box:
Fuse/Relay Information-Under-dash Fuse/Relay Box:
Fuse/Relay Information-Under-dash Fuse/Relay Box:
