Compressor Clutch Relay: Testing and Inspection

Relay Test

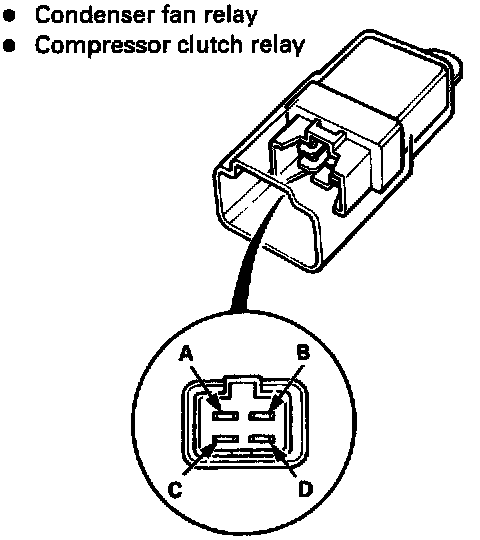

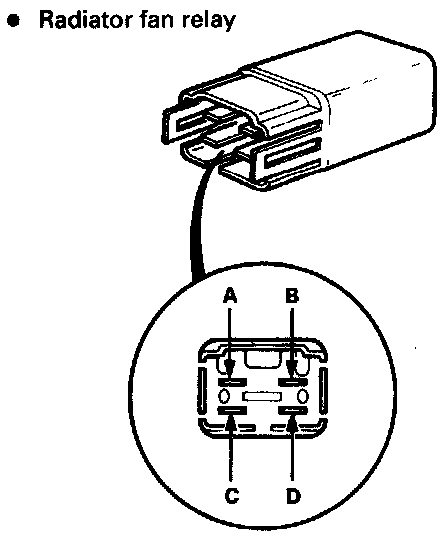

There should be continuity between the A and C terminals when power and ground are connected to the B and D terminals.

There should be no continuitv when power is disconnected.
