Manifold Pressure/Vacuum Sensor
>>
Locations
>>
Engine Compartment View
Engine Compartment View

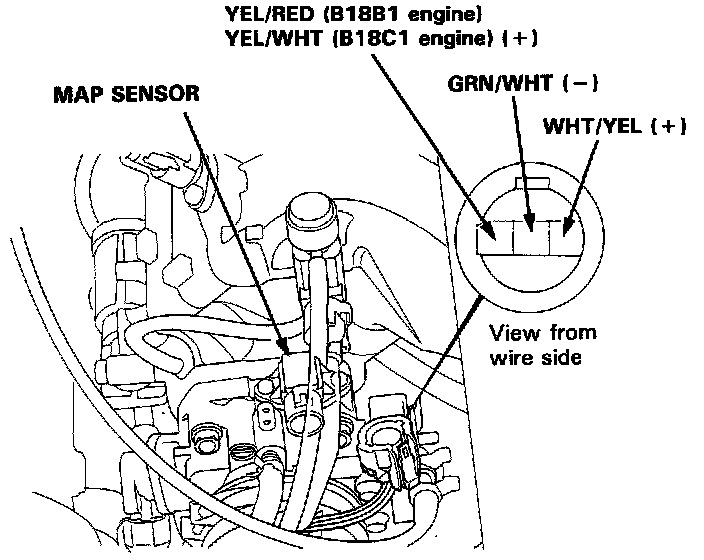

MAP Sensor Location And Wiring Colors:
The Manifold Absolute Pressure Sensor is located on top of the Throttle Body.
