Seat Belt Switch

  1. Slide the drivers seat forward until the seat belt center anchor bolt is accessible, to disconnect the 2-P connector from the seat belt switch. See Fig 1 .
  2. There should be continuity between the "A" and "B" terminals when the drivers seat belt is not buckled. There should be no continuity when the drivers seat belt is buckled.

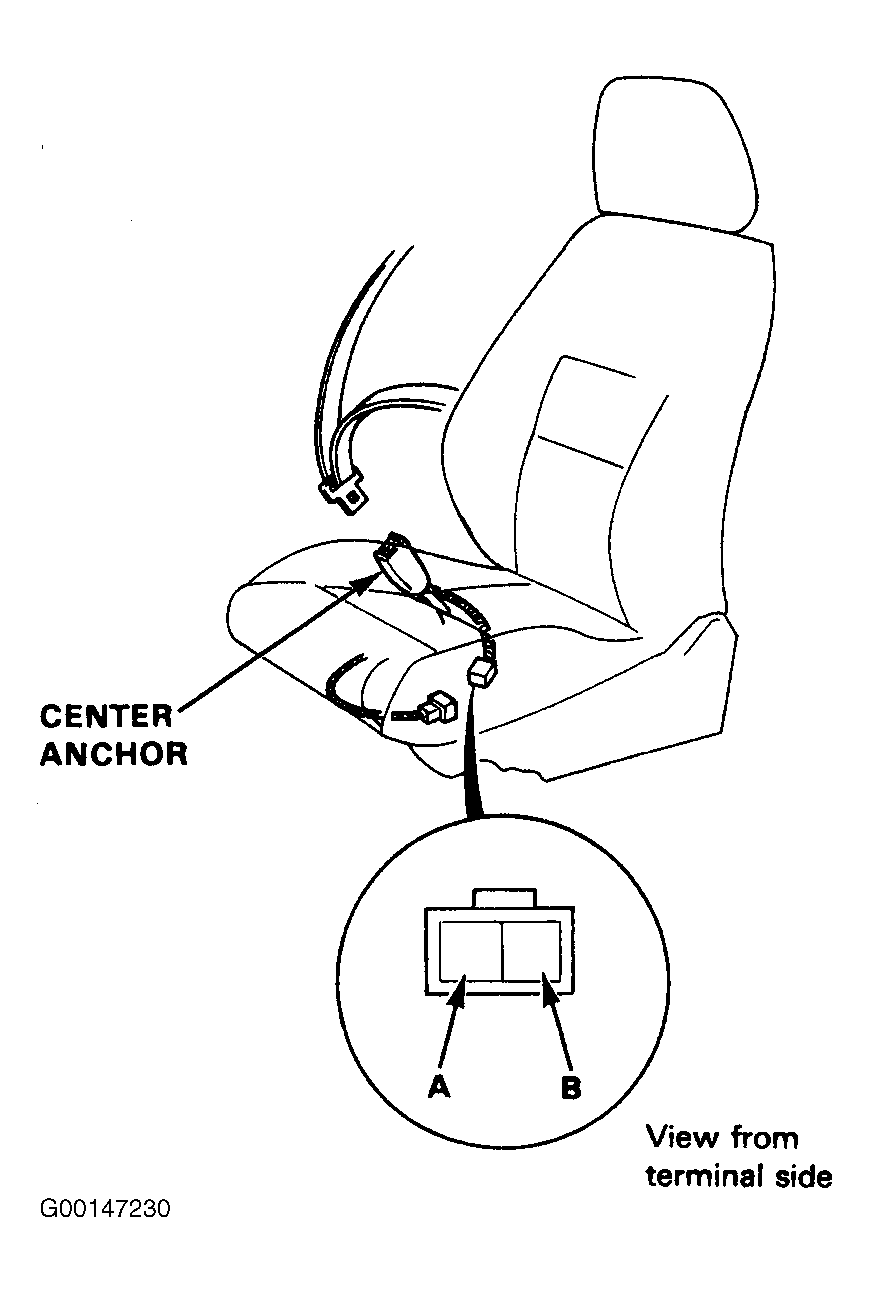

Fig 1: Locating Seat Belt Switch
G00147230Courtesy of AMERICAN HONDA MOTOR CO., INC.
