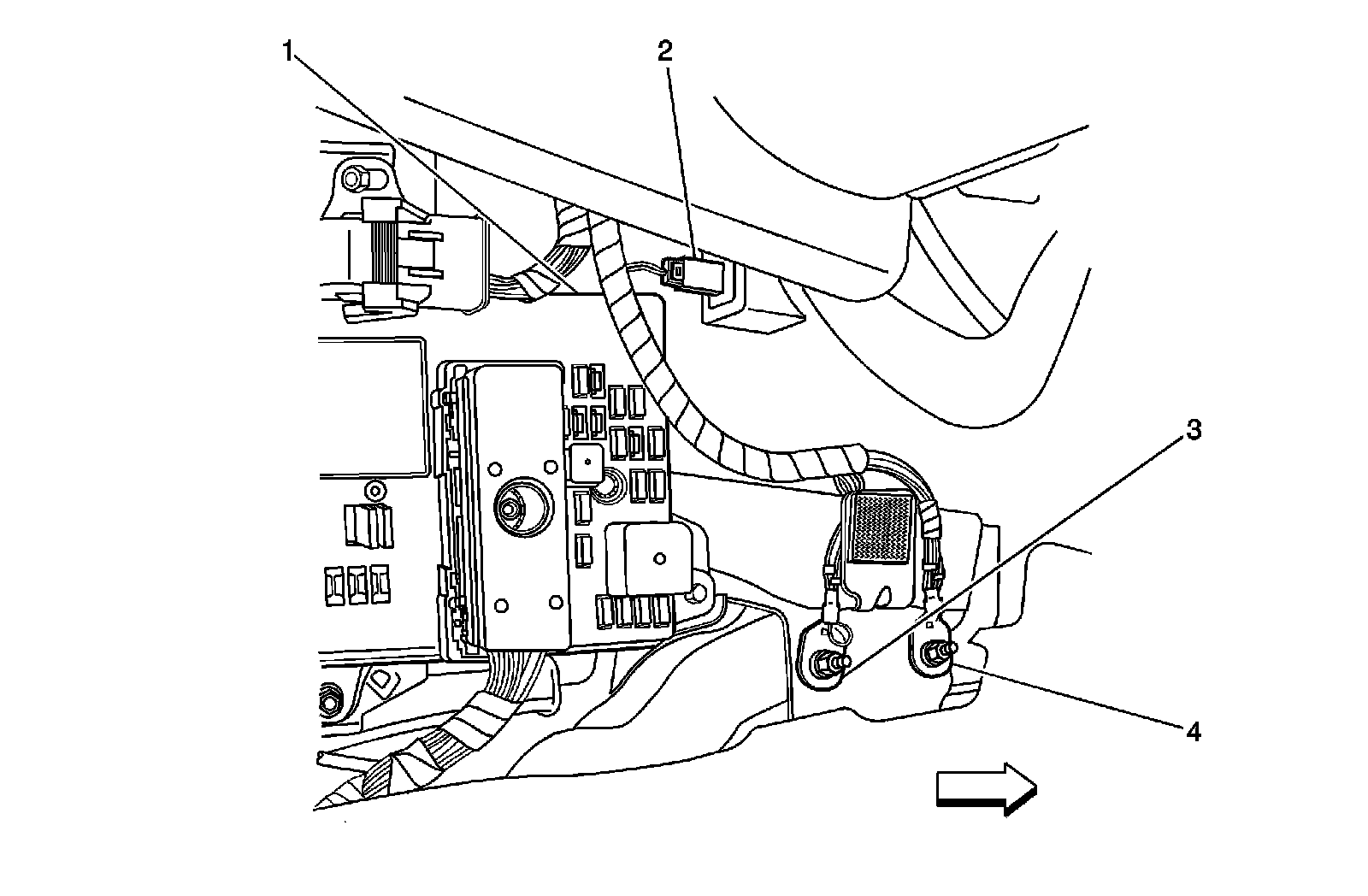

Lower Right of the I/P Components (3 of 4)
Instrument Panel/Center Console Component Views
Lower Right of the I/P Components (3 of 4)
1 - Body Control Module (BCM)
2 - Air Temperature Sensor - Lower (C68)
3 - G203
4 - G201
Instrument Panel/Center Console Component Views
Lower Right of the I/P Components (3 of 4)
1 - Body Control Module (BCM)
2 - Air Temperature Sensor - Lower (C68)
3 - G203
4 - G201
