Home >> Mazda >> 2005 >> 6 L4-2.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Shift Interlock Switch >> Locations

Shift Interlock Switch: Locations

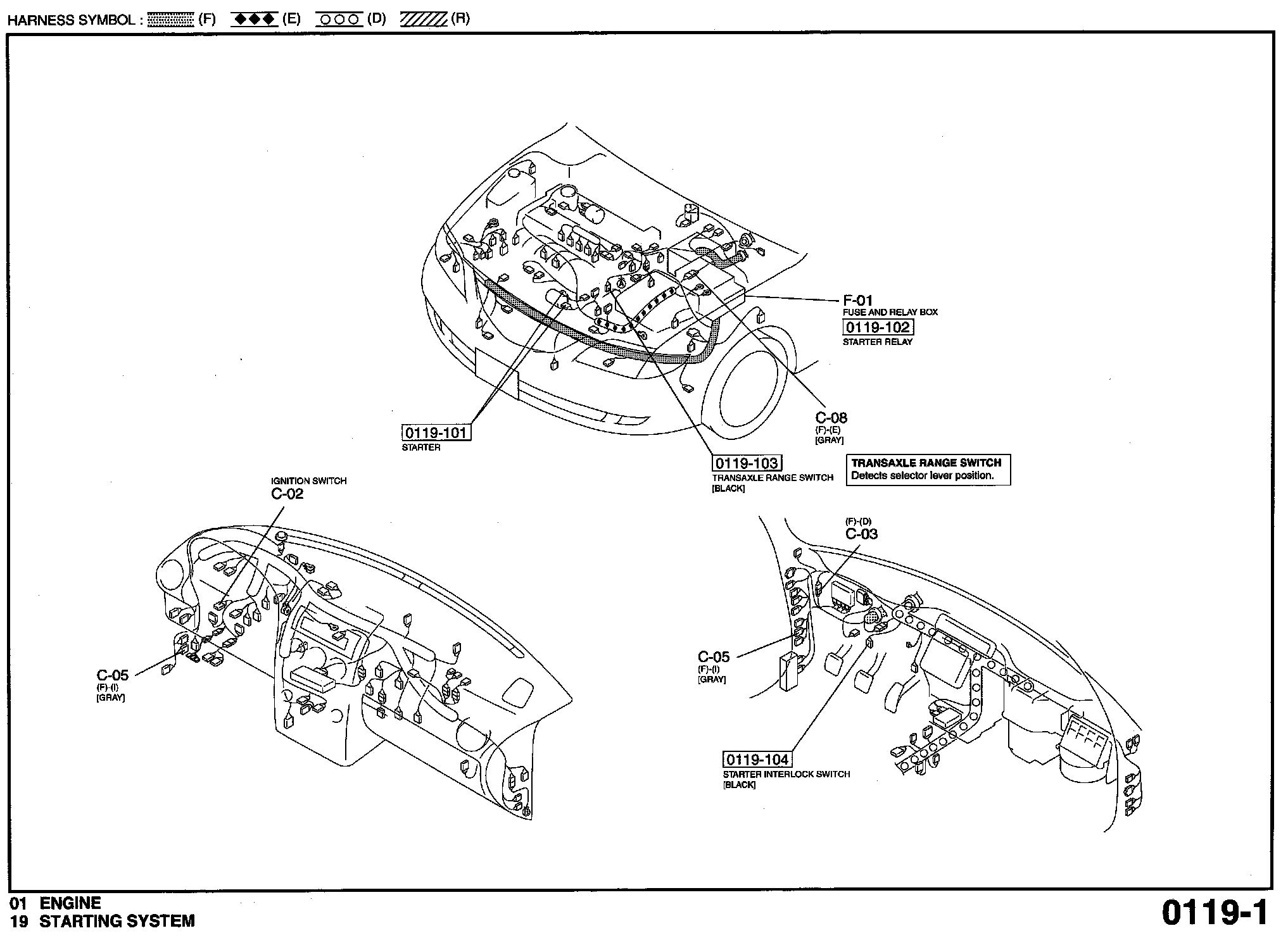

Routing View 0119-1:
