Repair Procedures: Disassembly

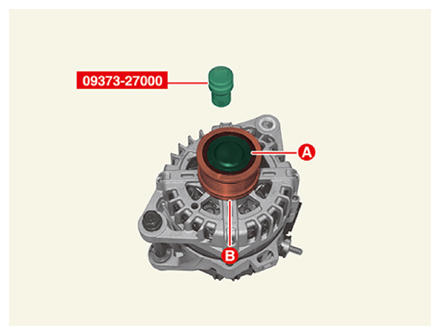

Remove the pulley (B) using the SST(09373 - 27000) after removing the OAD cap (A).
Tightening torque:

75.5 - 81.4 N.m (7.7 - 8.3 kgf.m, 55.7 - 60.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

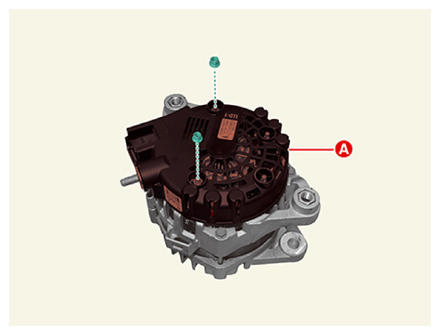

Remove the alternator cover (A) after removing the mounting nuts.
Tightening torque:

3.04 - 4.41 N.m (0.31 - 0.45 kgf.m, 2.24 - 3.25 lb.ft, 26.9 - 39.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

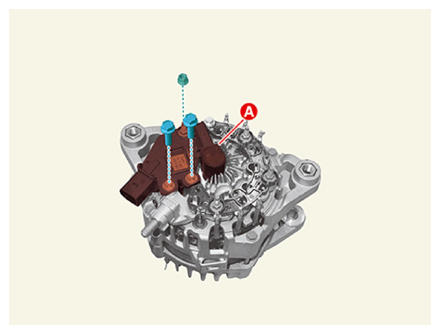

Remove the brush and regulator assembly (A) after removing the mounting bolts.
Tightening torque:

4.02 - 4.41 N.m (0.41 - 0.45 kgf.m, 2.96 - 3.25 lb.ft, 35.58 - 39.05 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

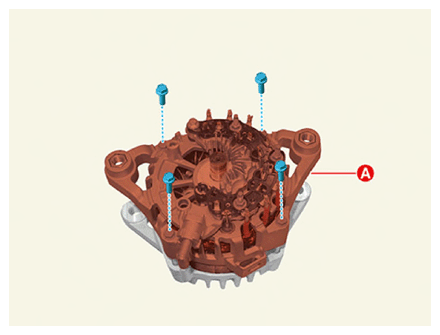

Remove the rectifier assembly (A) after removing the mounting bolts.
Tightening torque:

4.51 - 5.49 N.m (0.46 - 0.56 kgf.m, 3.33 - 4.05 lb.ft, 39.9 - 48.6 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

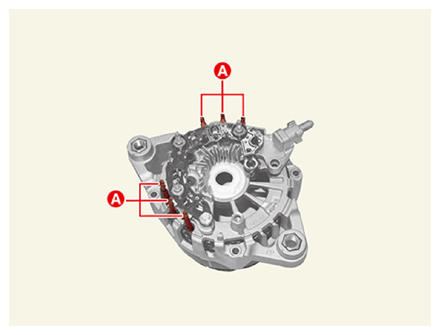

Dissolve the stator lead (A).

Courtesy of KIA MOTORS AMERICA, INC.

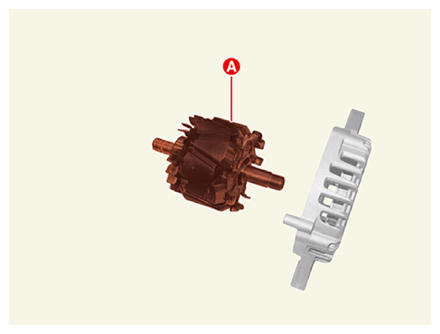

Remove the rotor from the front housing complete.

Courtesy of KIA MOTORS AMERICA, INC.
