Location Of MFI Components

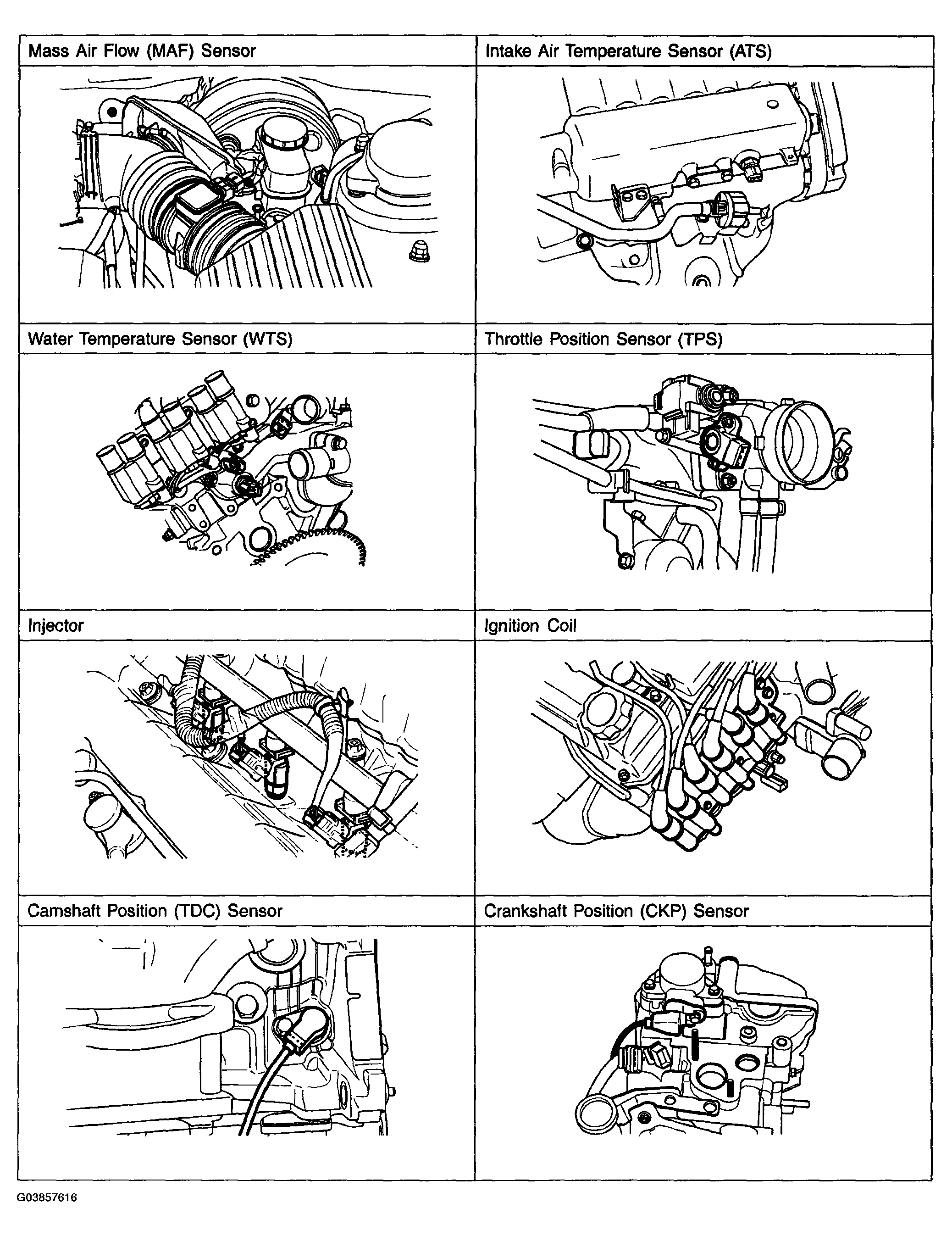

Fig 1: Identifying MFI Components Location (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

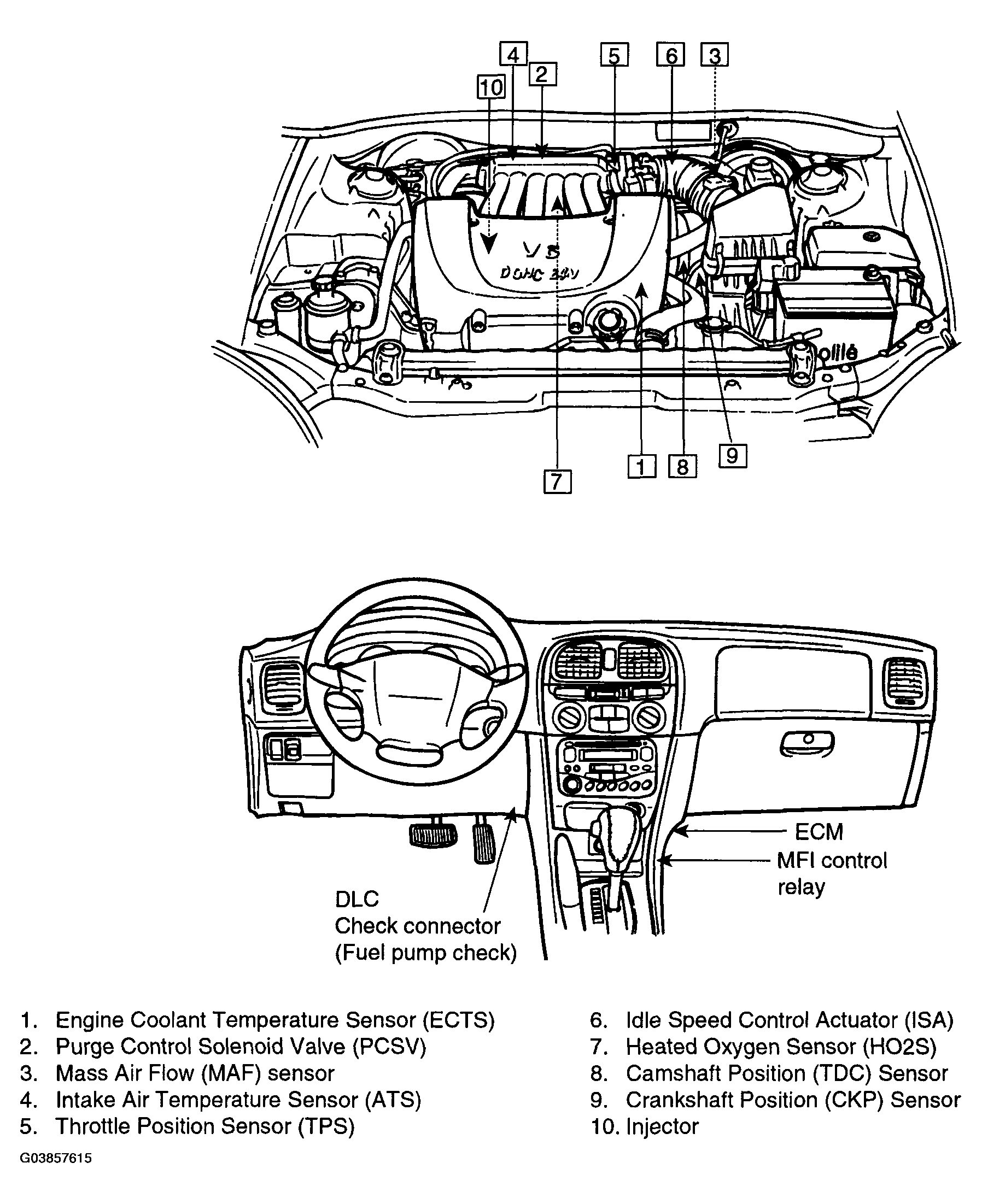

Fig 2: Identifying MFI Components Location (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
