Rocker Arm: Installation

  1. Install the rocker arms.
    • Position the rocker arms.
    • Hand-start the bolts.
    • Tighten the bolts in two stages.
      • Stage 1: Tighten to 5 N.m (44 lb-in).
      • Stage 2: Tighten to 32 N.m (24 lb-ft.).

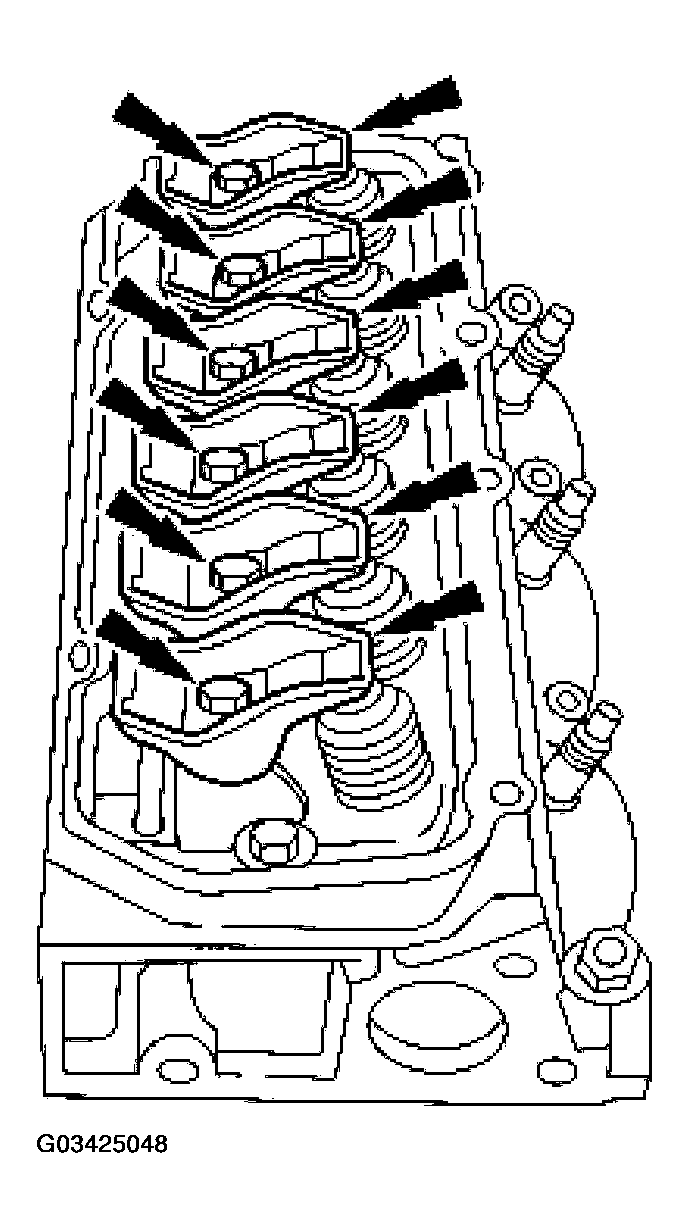

        Fig 1: Installing Rocker Arms
        G03425048Courtesy of FORD MOTOR CO.
  2. Install the valve cover. Refer to VALVE COVER - RH  and VALVE COVER - LH .
