Manifold Pressure/Vacuum Sensor: Diagrams
Component Connector End Views

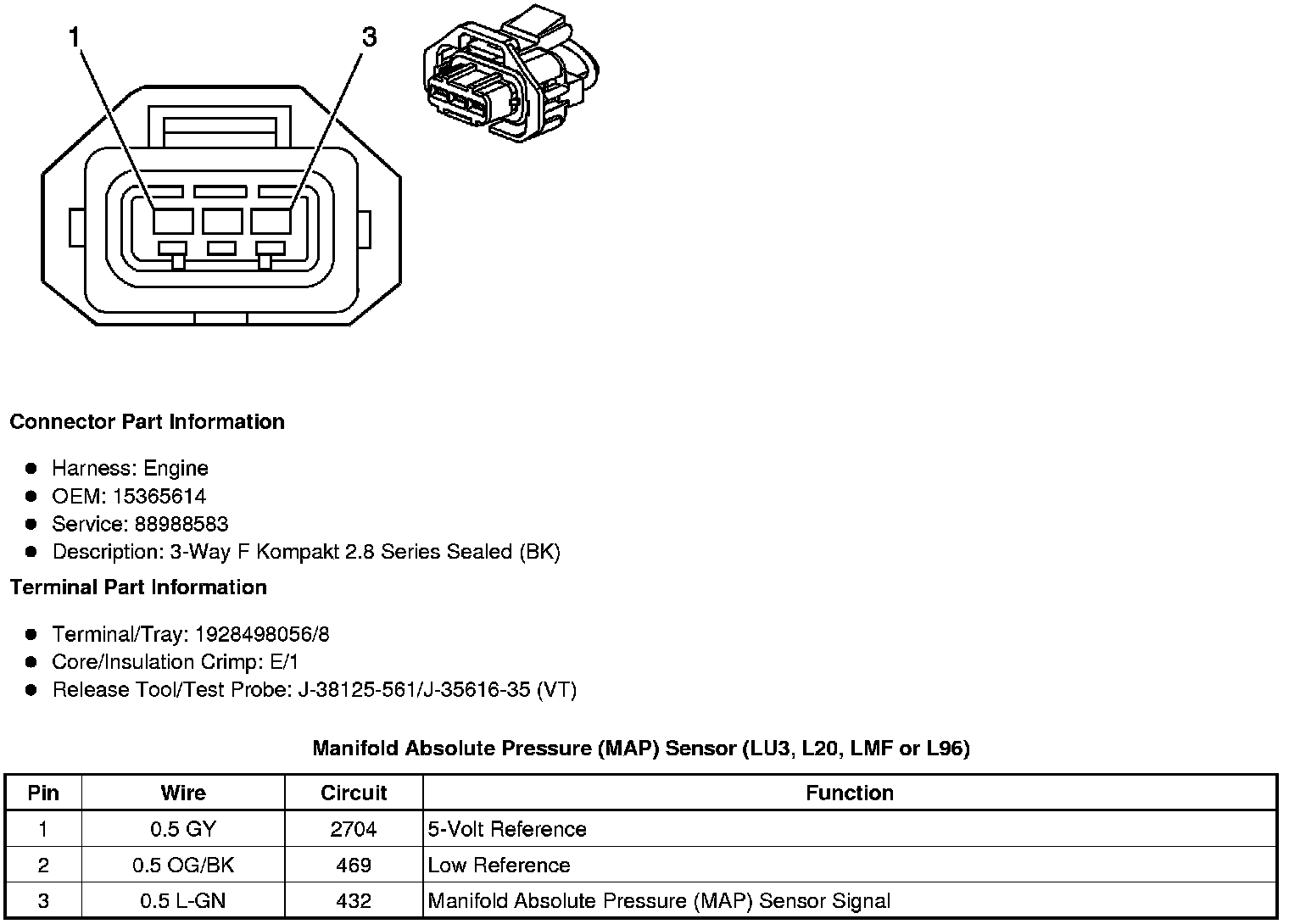

Manifold Absolute Pressure (MAP) Sensor (LU3, L20, LMF or L96)

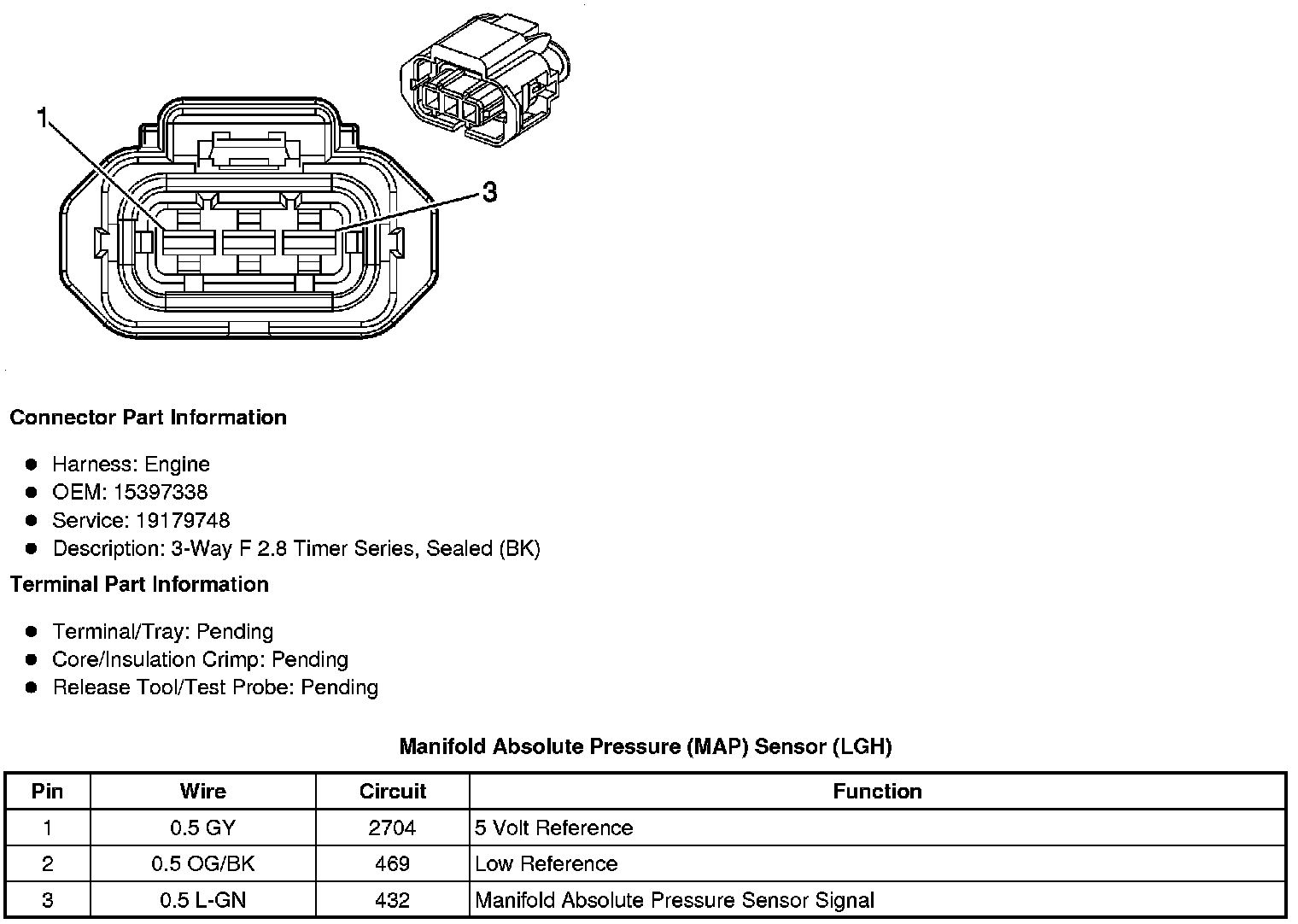

Manifold Absolute Pressure (MAP) Sensor (LGH)

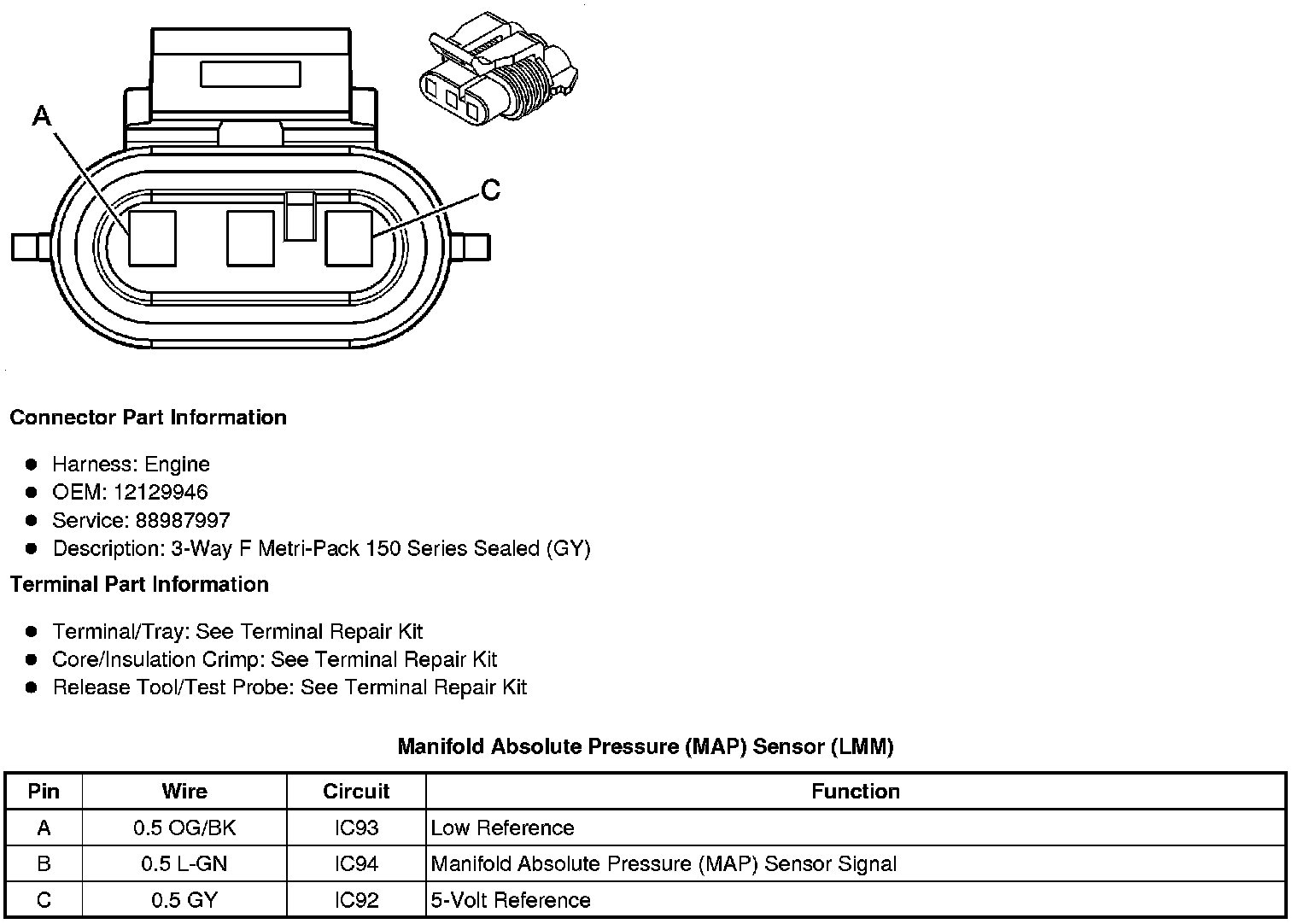

Manifold Absolute Pressure (MAP) Sensor (LMM)
Component Connector End Views
Manifold Absolute Pressure (MAP) Sensor (LU3, L20, LMF or L96)
Manifold Absolute Pressure (MAP) Sensor (LGH)
Manifold Absolute Pressure (MAP) Sensor (LMM)
