Home >> Chevrolet >> 2007 >> Equinox AWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch

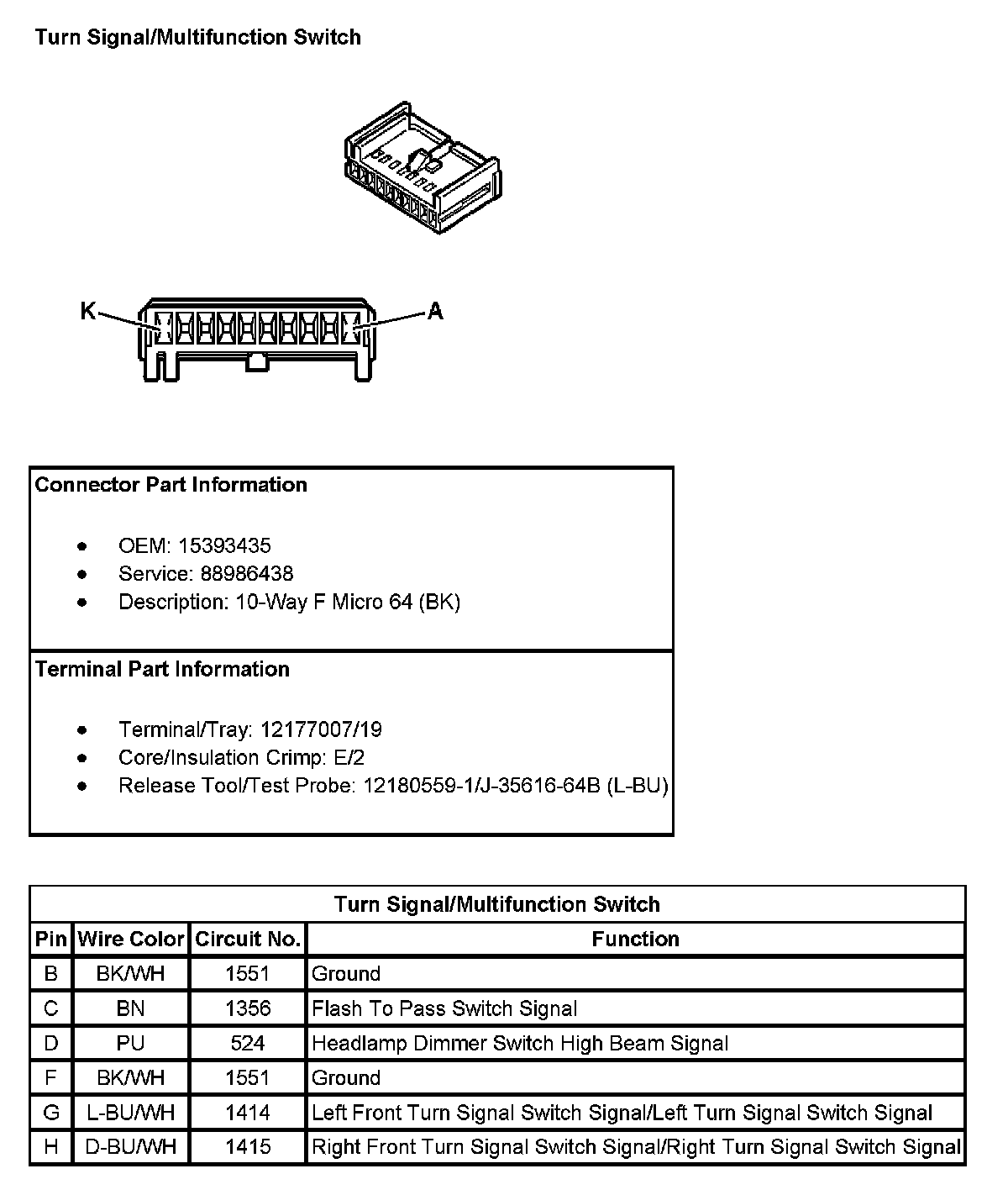

Turn Signal/Multifunction Switch:
