Power Trunk / Liftgate Control Module
>>
Liftgate Module (LGM) X2 (Wagon)
Liftgate Module (LGM) X2 (Wagon)

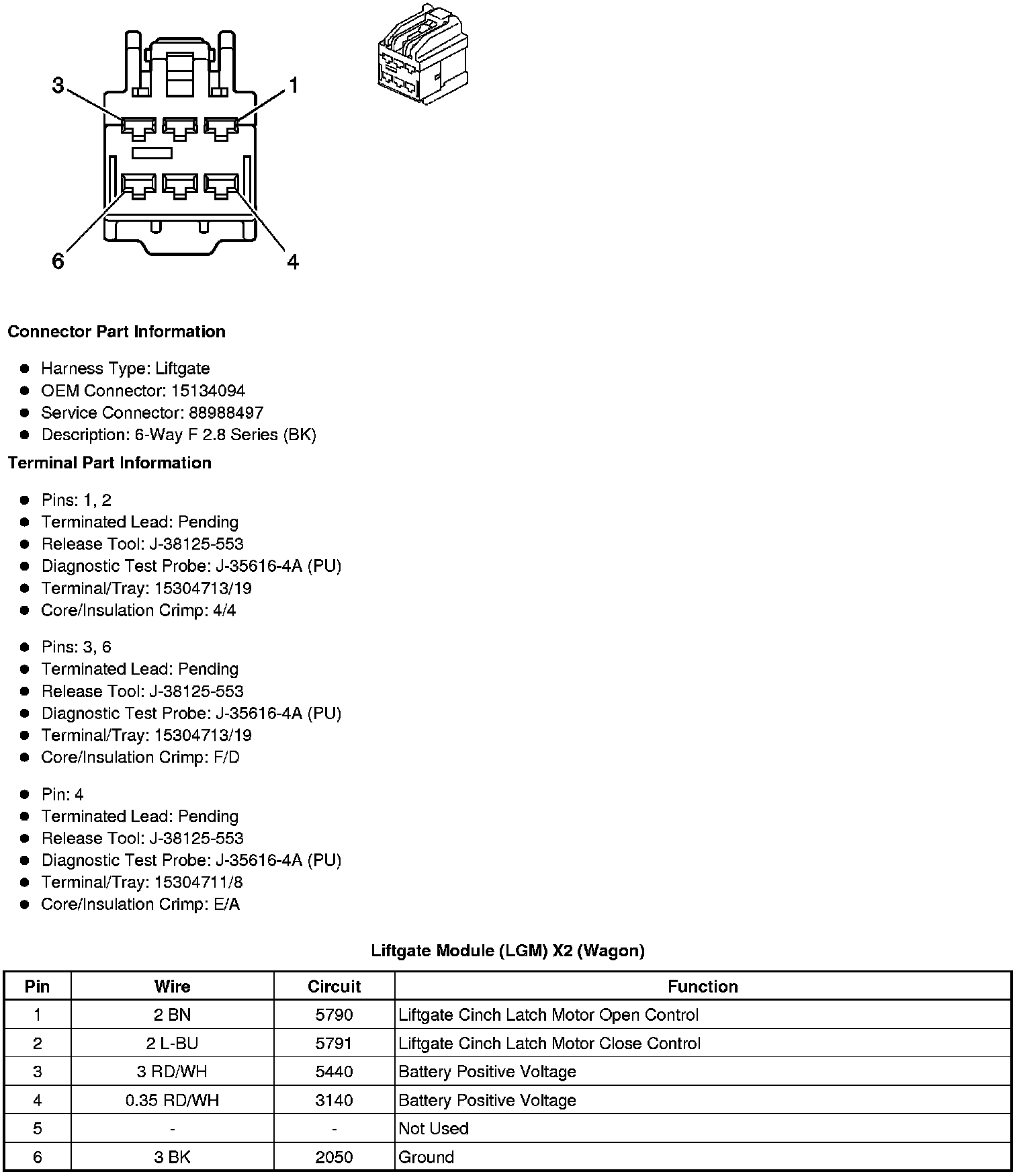

Component Connector End Views
Liftgate Module (LGM) X2 (Wagon)
