Combination Switch




Component Connector End Views

Turn Signal/Multifunction Switch X1






Turn Signal/Multifunction Switch X2

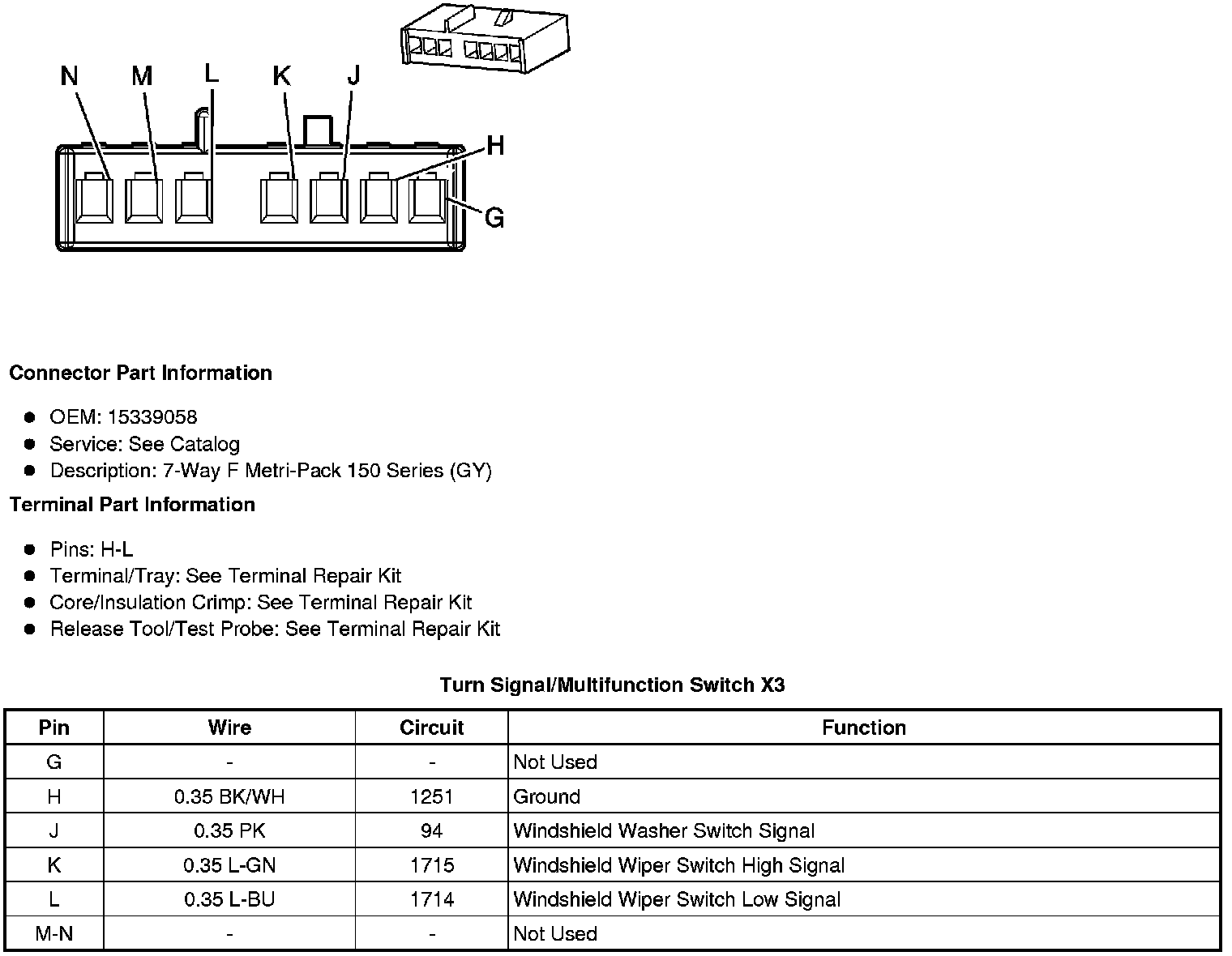

Turn Signal/Multifunction Switch X3
